TOYOTA MARK X GRX121-AETZH / ELECTRICAL / HEATING AIR CONDITIONING CONTROL AIR DUCT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

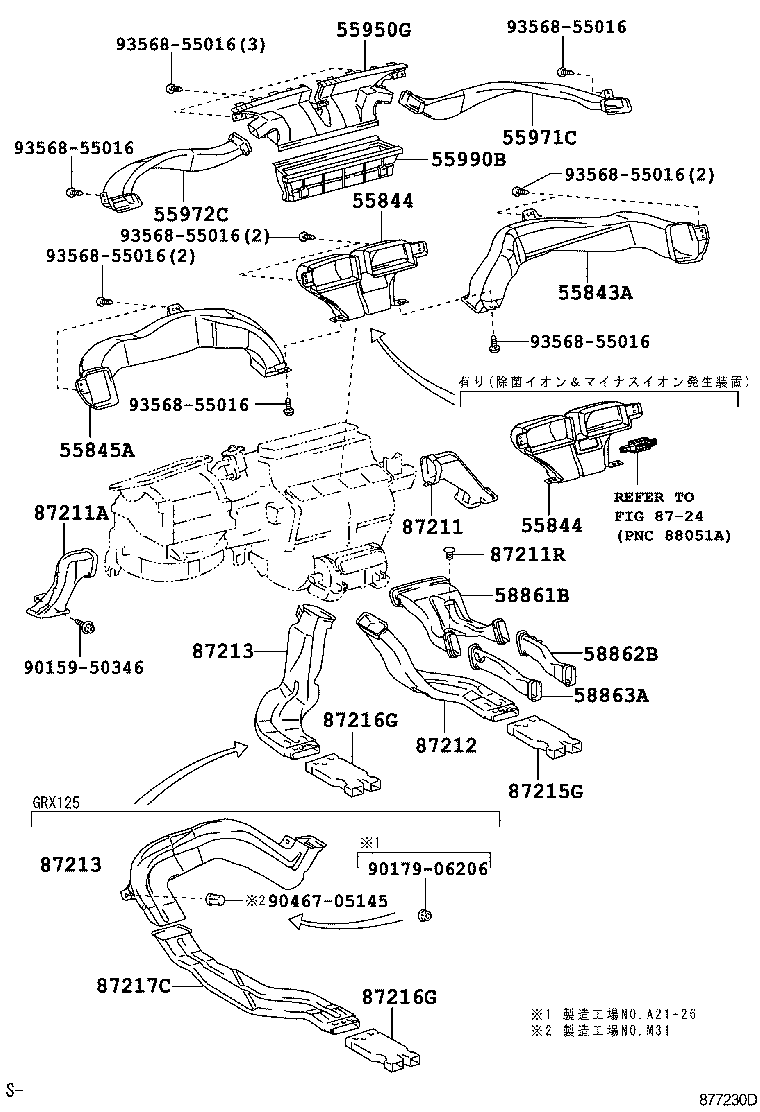

HEATING AIR CONDITIONING CONTROL AIR DUCT

ｴｱﾀﾞｸﾄ ILLUST NO. 2 OF 3(0411- )

MARK X | HEATING AIR CONDITIONING CONTROL AIR DUCT 55843A - DUCT, HEATER TO REGISTER, NO.1 55844 - DUCT, HEATER TO REGISTER, NO.2 55844 - DUCT, HEATER TO REGISTER, NO.2 55845A - DUCT, HEATER TO REGISTER, NO.3 55950G - NOZZLE ASSY, DEFROSTER 55971C - DUCT, SIDE DEFROSTER NOZZLE, NO.1 55972C - DUCT, SIDE DEFROSTER NOZZLE, NO.2 55990B - NOZZLE ASSY, DEFROSTER, LOWER 58861B - DUCT, CONSOLE BOX, NO.1 58862B - DUCT, CONSOLE BOX, NO.2 58863A - DUCT, CONSOLE BOX, NO.3 87211 - DUCT, AIR, NO.1 87211A - DUCT, AIR, NO.2 87211R - CLIP, AIR DUCT 87212 - DUCT, AIR, REAR NO.1 87213 - DUCT, AIR, REAR NO.2 87213 - DUCT, AIR, REAR NO.2 87215G - GUIDE, AIR DUCT, REAR RH 87216G - GUIDE, AIR DUCT, REAR LH 87216G - GUIDE, AIR DUCT, REAR LH 87217C - DUCT, AIR, REAR NO.5 ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
