TOYOTA DYNA TOYOACE TRY220-PSMBK3 / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

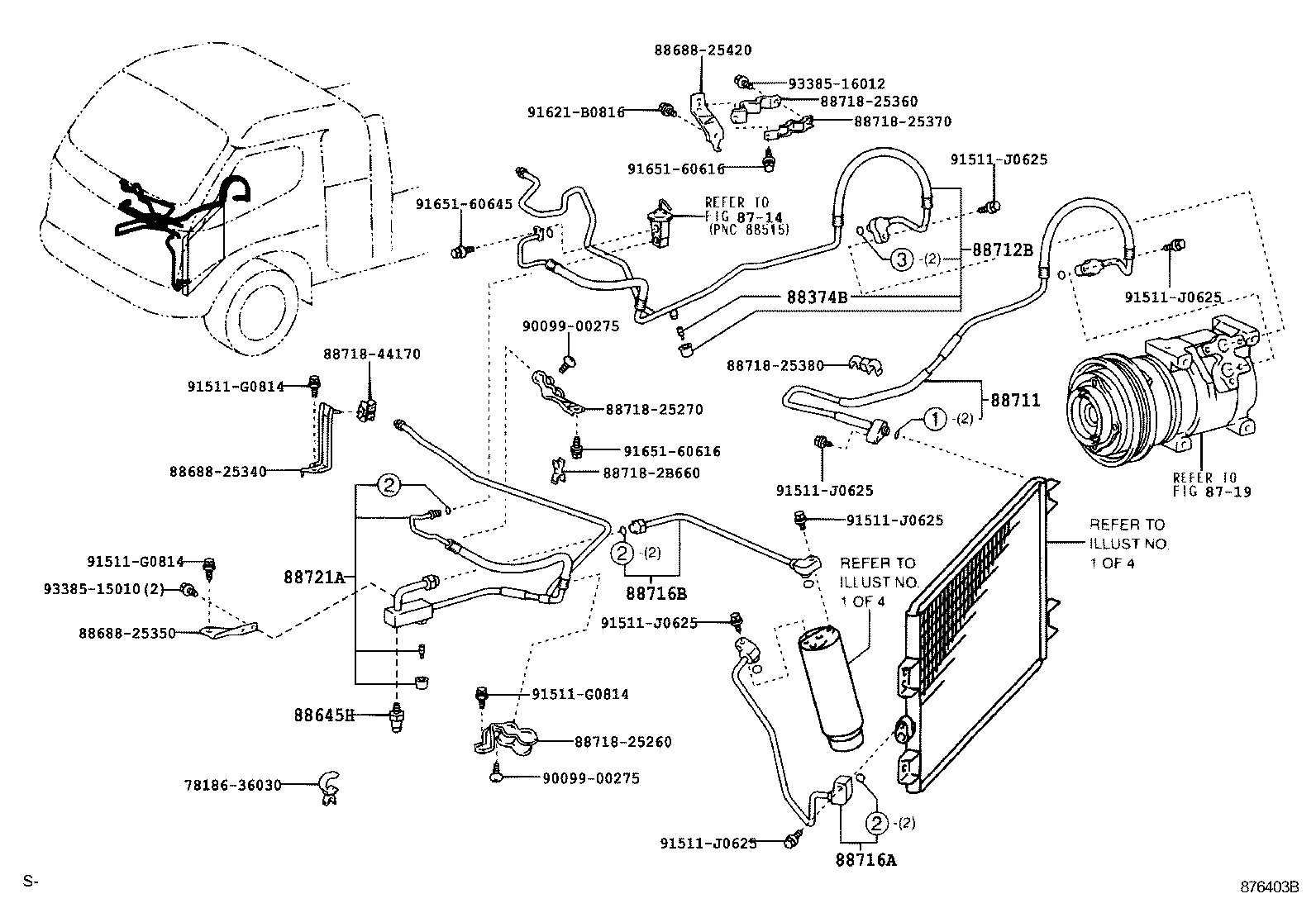

HEATING AIR CONDITIONING COOLER PIPING

ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ｸ-ﾗ) ILLUST NO. 2 OF 4(0308- )TRY220,230..TW1,TW2,TW3

DYNA TOYOACE | HEATING AIR CONDITIONING COOLER PIPING ** Std Part ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88645H - SWITCH, PRESSURE NO.1 ** Std Part ** Std Part ** Std Part 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88712B - HOSE, COOLER REFRIGERANT SUCTION 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 88721A - HOSE, LIQUID, A ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
