TOYOTA HIACE REGIUSACE KDH201V-SRMDY / BODY / INSIDE TRIM BOARD

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

INSIDE TRIM BOARD

ｱﾘ(ﾃﾞｭｱﾙ ｴｱｺﾝ) (1205- )SRF..06S,09S

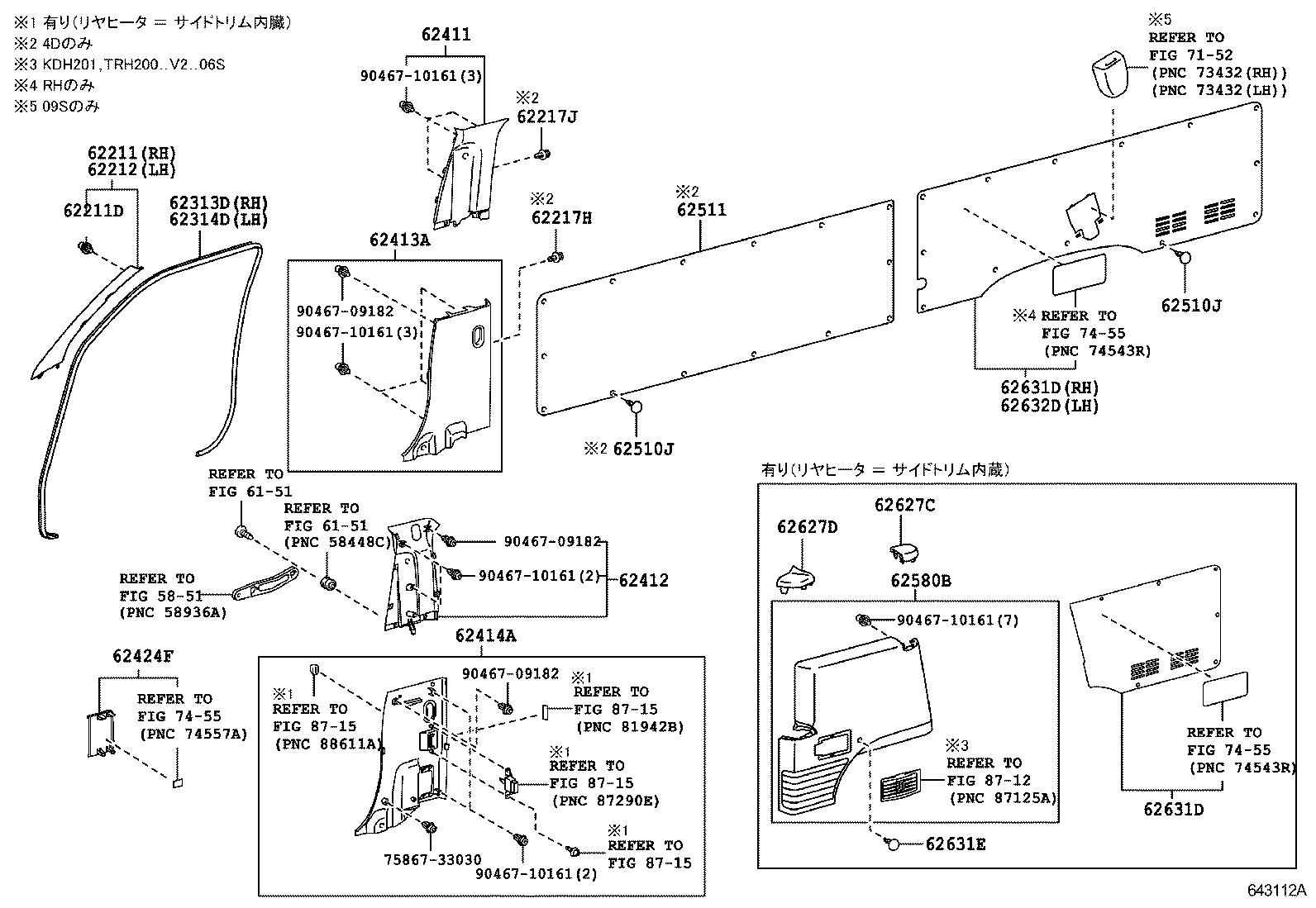

HIACE REGIUSACE | INSIDE TRIM BOARD ** Refer Fig ** Refer Fig ** Refer Fig 62211 - GARNISH, FRONT PILLAR, RH 62211D - CLIP(FOR FRONT BODY PILLAR GARNISH) 62212 - GARNISH, FRONT PILLAR, LH 62217H - CLIP, CENTER PILLER GARNISH 62217J - CLIP, CENTER PILLER GARNISH 62313D - TRIM, FRONT DOOR OPENING, RH 62314D - TRIM, FRONT DOOR OPENING, LH 62411 - GARNISH, CENTER PILLAR, RH 62412 - GARNISH, CENTER PILLAR, LH 62413A - GARNISH, CENTER PILLAR, LOWER RH 62414A - GARNISH, CENTER PILLAR, LOWER LH 62424F - COVER, CENTER PILLAR GARNISH, LOWER LH 62510J - RETAINER, QUARTER TRIM 62510J - RETAINER, QUARTER TRIM 62511 - BOARD, QUARTER INSIDE TRIM, RH 62580B - BOARD ASSY, SIDE HEATER COVER, RH 62627C - COVER, SIDE TRIM, NO.1 62627D - COVER, SIDE TRIM, RH 62631D - BOARD, QUARTER TRIM, REAR RH 62631D - BOARD, QUARTER TRIM, REAR RH 62631E - RETAINER, QUATER TRIM 62632D - BOARD, QUARTER TRIM, REAR LH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
