TOYOTA LAND CRUISER PRADO TRJ150W-GGPEK / BODY / INSTRUMENT PANEL GLOVE COMPARTMENT

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

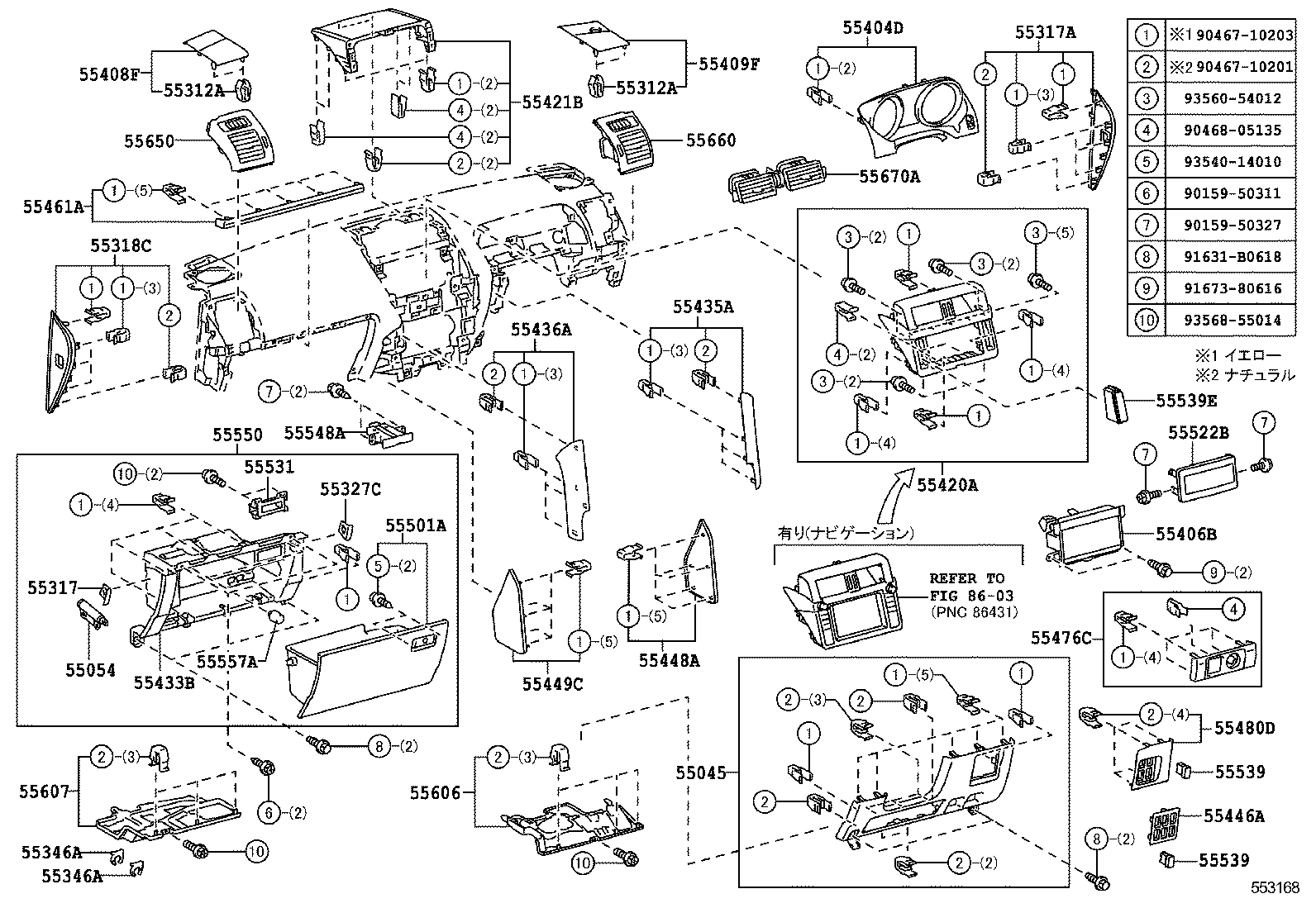

INSTRUMENT PANEL GLOVE COMPARTMENT

ILLUST NO. 2 OF 2(1308- )

LAND CRUISER PRADO | INSTRUMENT PANEL GLOVE COMPARTMENT 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR 55312A - CLIP, INSTRUMENT PANEL 55312A - CLIP, INSTRUMENT PANEL 55317 - PATCH, INSTRUMENT PANEL 55317A - PANEL, INSTRUMENT SIDE, RH 55318C - PANEL, INSTRUMENT SIDE, LH 55327C - PATCH, INSTRUMENT PANEL, UPPER RH 55346A - CLIP, INSTRUMENT PANEL, NO.2 55346A - CLIP, INSTRUMENT PANEL, NO.2 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH 55406B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, LOWER CENTER 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 55435A - PANEL, INSTRUMENT PANEL FINISH, END RH 55436A - PANEL, INSTRUMENT PANEL FINISH, END LH 55446A - BASE, SWITCH HOLE, NO.1 55448A - CUSHION, INSTRUMENT PANEL FINISH, NO.1 55449C - CUSHION, INSTRUMENT PANEL FINISH PANEL, NO.2 55461A - ORNAMENT, INSTRUMENT PANEL 55476C - GARNISH, INSTRUMENT PANEL FINISH PLATE 55480D - PANEL ASSY, INSTRUMENT PANEL FINISH, LWR 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT 55522B - COVER, RADIO TUNER OPENING 55531 - PANEL, GLOVE COMPARTMENT 55539 - COVER, SPARE SWITCH HOLE 55539 - COVER, SPARE SWITCH HOLE 55539E - COVER, SPARE SWITCH HOLE 55548A - COVER, INSTRUMENT PANEL HOLE 55550 - DOOR ASSY, GLOVE COMPARTMENT 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
