TOYOTA DYNA TOYOACE TRC600-PQMMK3 / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

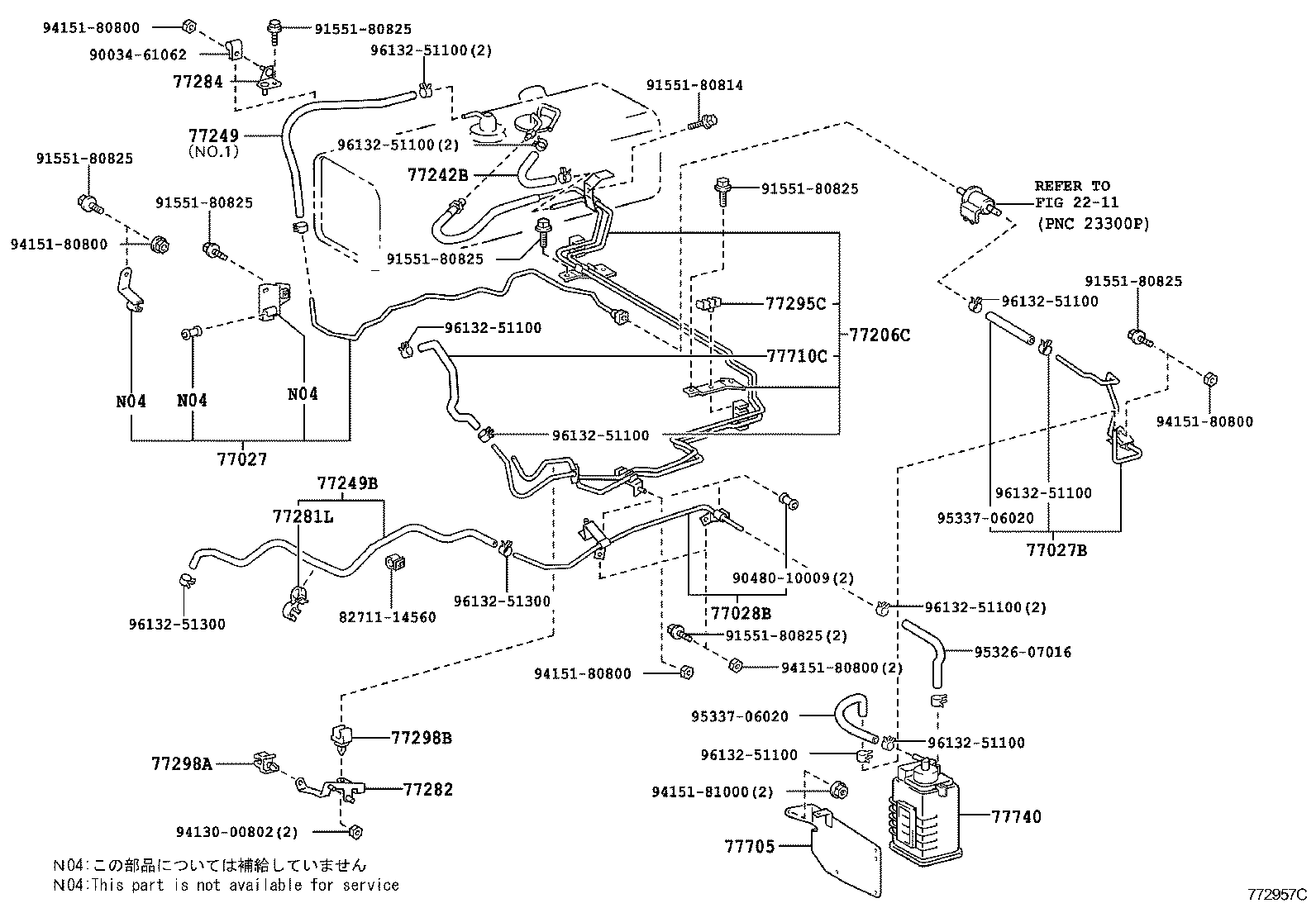

ﾌｭｰｴﾙﾁｭｰﾌﾞ ILLUST NO. 3 OF 3(1107- )TRC600..DCB

DYNA TOYOACE | FUEL TANK TUBE ** Refer Fig 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 77027B - TUBE SUB-ASSY, FUEL EMISSION, NO.1 77028B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.3 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 77249 - HOSE, FUEL EMISSION 77249B - HOSE, FUEL 77281L - CLAMP, FUEL HOSE 77282 - BRACKET, FUEL MAIN TUBE, NO.2 77284 - CLAMP, FUEL TUBE 77295C - GROMMET, FUEL TUBE 77298A - CLAMP, FUEL TUBE, NO.4 77298B - CLAMP, FUEL TUBE, NO.4 77705 - BRACKET SUB-ASSY, CHARCOAL CANISTER 77710C - HOSE, FUEL 77740 - CANISTER ASSY, CHARCOAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
