TOYOTA PRIUS PLUG IN HBD ZVW35-BHXBB / ELECTRICAL / BATTERY BATTERY CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BATTERY BATTERY CABLE

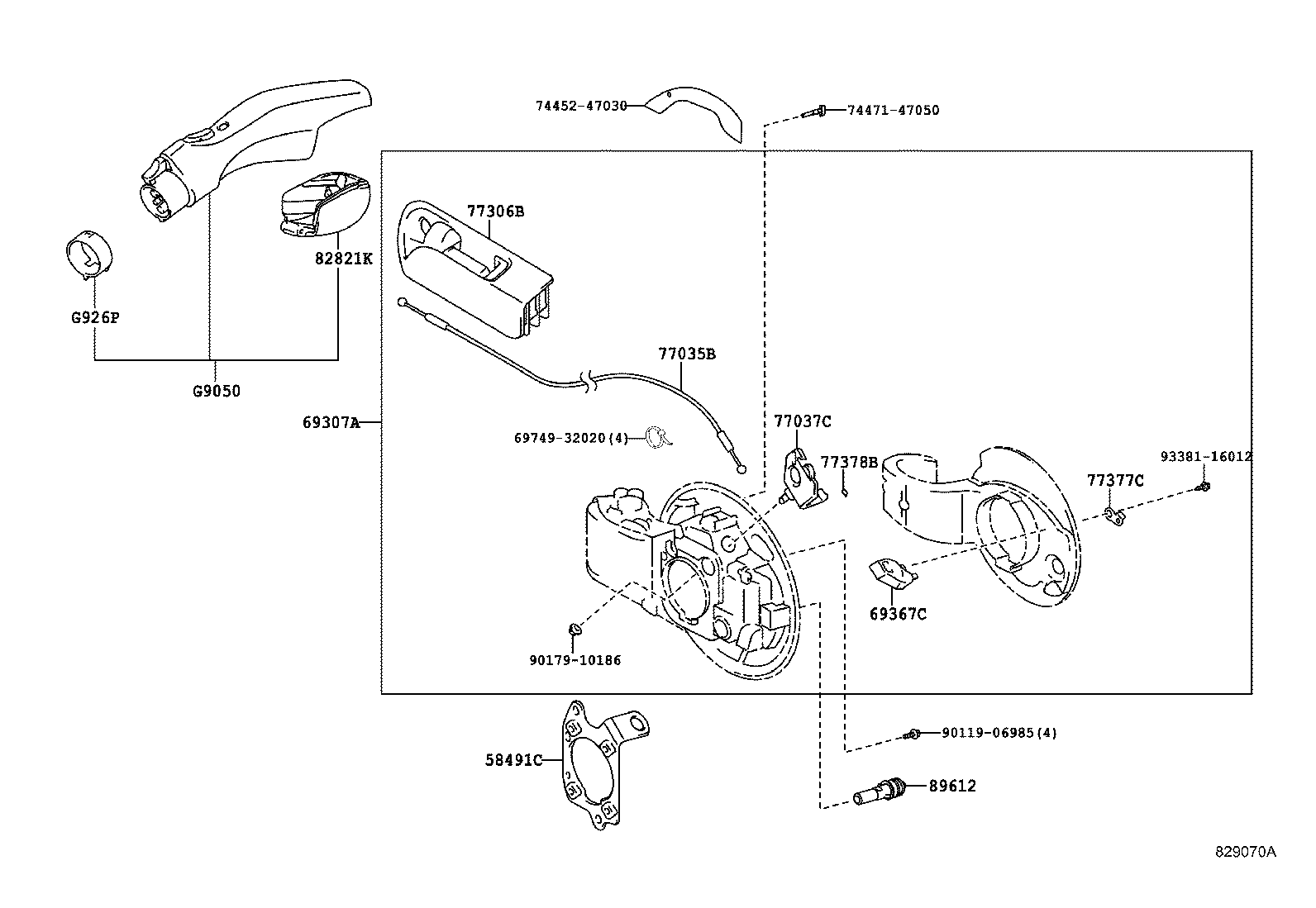

HVﾊﾞｯﾃﾘ ILLUST NO. 3 OF 6(1201- )

PRIUS PLUG IN HBD | BATTERY BATTERY CABLE 58491C - PLATE, BATTERY SERVICE COVER 69307A - LOCK SUB-ASSY, BATTERY SERVICE OPENING LID, REAR 69367C - STRIKER, BATTERY BOX LID LOCK ** Std Part ** Std Part ** Std Part 77035B - CABLE SUB-ASSY, FUEL LID LOCK CONTROL 77037C - LOCK SUB-ASSY, FUEL FILLER OPENING LID 77306B - LEVER SUB-ASSY, FUEL LID LOCK OPEN 77377C - RETAINER, FUEL FILLER OPENING LID LOCK 77378B - COVER, FUEL FILLER OPENING LID LOCK 82821K - COVER, CONNECTOR 89612 - BRACKET, PUSH SWITCH ** Std Part ** Std Part ** Std Part G9050 - CONNECTOR ASSY, ELECTRIC VEHICLE EMERGENCY G926P - RETAINER, EV CHARGE CONNECTOR
