TOYOTA CELICA MA46L-BLHQEA / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

(7901-7908)4ME

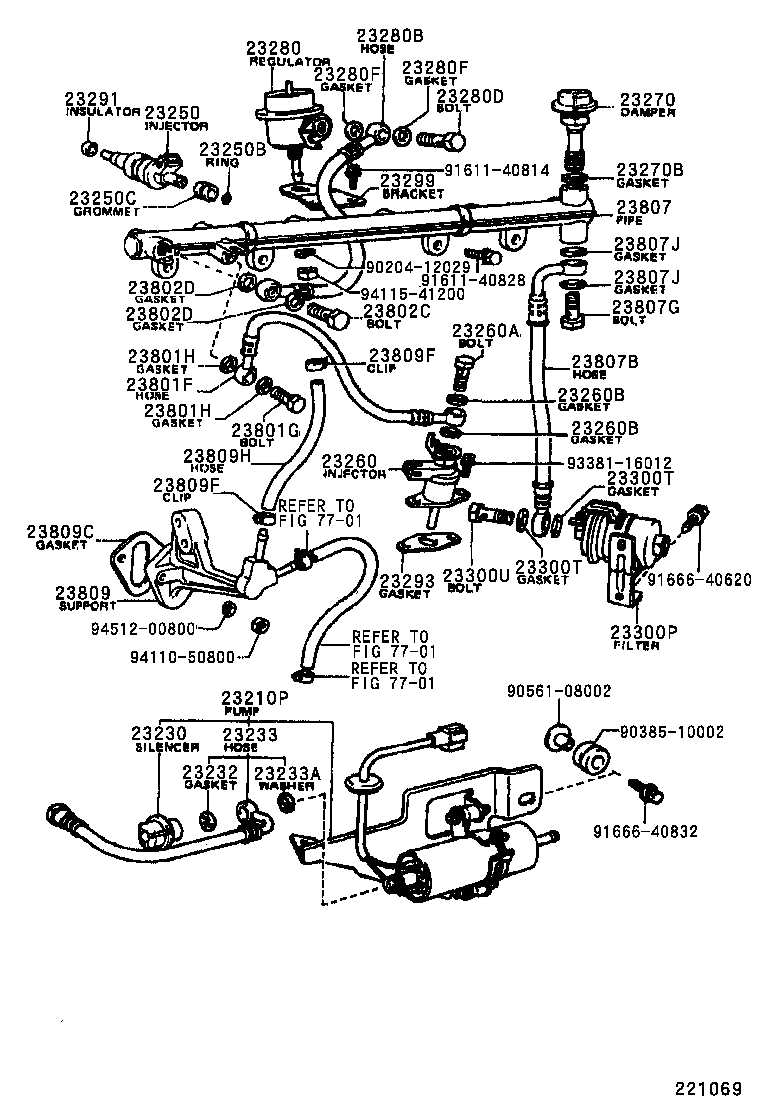

CELICA | FUEL INJECTION SYSTEM 23210P - PUMP ASSY, FUEL W/MOTOR & BRACKET 23230 - SILENCER ASSY 23232 - GASKET(FOR FUEL PUMP HOSE) 23233 - HOSE, FUEL PUMP 23233A - WASHER(FOR FUEL PUMP HOSE) 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23250C - GROMMET(FOR FUEL INJECTOR) 23260 - INJECTOR ASSY, COLD START FUEL 23260A - BOLT, UNION 23260B - GASKET 23260B - GASKET 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23270B - GASKET(FOR PULSATION DAMPER HOSE) 23280 - REGULATOR ASSY, FUEL PRESSURE 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN 23280D - BOLT, UNION(FOR FUEL PIPE OR HOSE SET) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23280F - GASKET(FOR FUEL PRESSURE REGULATOR) 23291 - INSULATOR, INJECTOR VIBRATION 23293 - GASKET, COLD START INJECTOR 23299 - BRACKET, FUEL PRESSURE REGULATOR 23300P - FILTER, FUEL(FOR EFI) 23300T - GASKET(FOR FUEL FILTER) 23300T - GASKET(FOR FUEL FILTER) 23300U - BOLT, UNION(FOR FUEL FILTER) 23801F - HOSE, FUEL, NO.1 23801G - BOLT, UNION(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23801H - GASKET(FOR FUEL PIPE) 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23802D - GASKET(FOR FUEL PIPE NO.2) 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807B - HOSE, FUEL DELIVERY PIPE 23807G - BOLT, UNION PIPE FUEL DELIVARY INLET 23807J - GASKET, PIPE FUEL DELIVARY INLET 23807J - GASKET, PIPE FUEL DELIVARY INLET 23809 - SUPPORT SUB-ASSY, FUEL PIPE 23809C - GASKET, FUEL PIPE SUPPORT 23809F - CLIP(FOR FUEL PIPE SUPPORT) 23809F - CLIP(FOR FUEL PIPE SUPPORT) 23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
