TOYOTA CRESSIDA MX32L-EHNEA / BODY / FLOOR PAN LOWER BACK PANEL

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

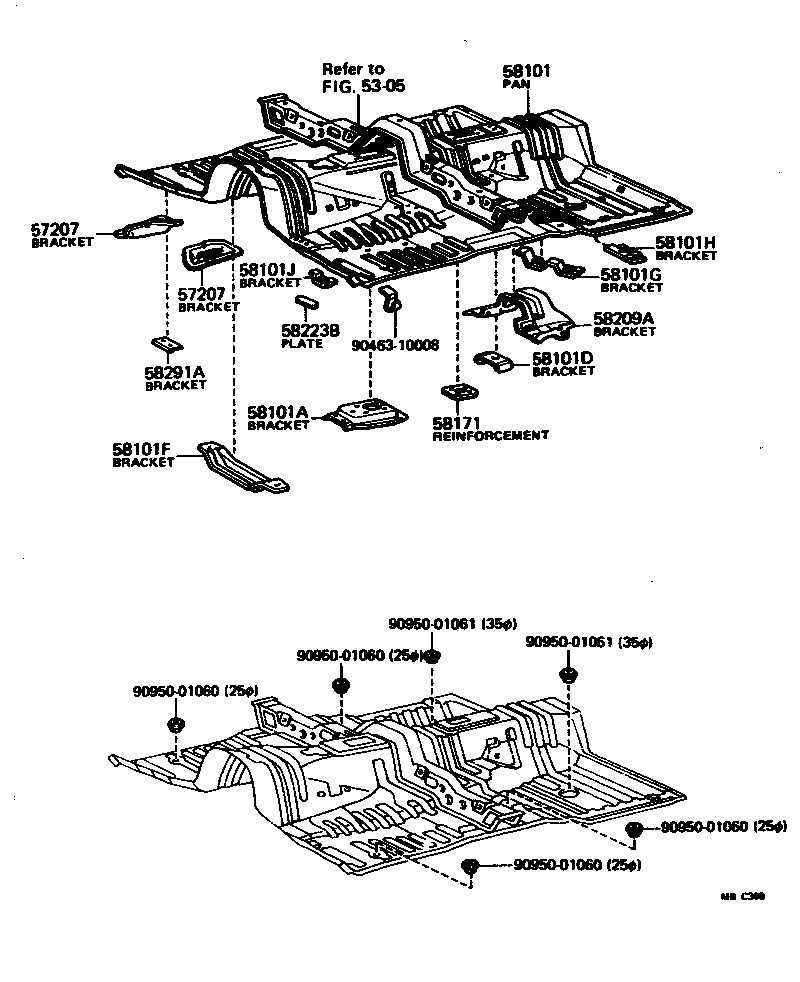

FLOOR PAN LOWER BACK PANEL

(7911-8008)

CRESSIDA | FLOOR PAN LOWER BACK PANEL ** Refer Fig 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER 57207 - BRACKET SUB-ASSY, ENGINE REAR MOUNTING MEMBER 58101 - PAN SUB-ASSY, FRONT FLOOR 58101A - COVER, TRANSMISSION AUXILIARY 58101D - BRACKET, PARKING BRAKE CABLE GUIDE 58101F - BRACKET, MOUNTING, FLOOR, NO.1 58101G - BRACKET, MOUNTING, FLOOR, NO.2 58101H - BRACKET, MOUNTING, FLOOR, NO.3 58101J - BRACKET, MOUNTING, FLOOR, NO.4 58171 - REINFORCEMENT, PARKING BRAKE BASE 58209A - REINFORCEMENT SUB-ASSY, DRIVE SHAFT CENTER SUPPORT 58223B - PLATE, ACCELERATOR PEDAL 58291A - RETAINER, ACCELERATOR PEDAL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
