TOYOTA CELICA RA64L-BCMSSA / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

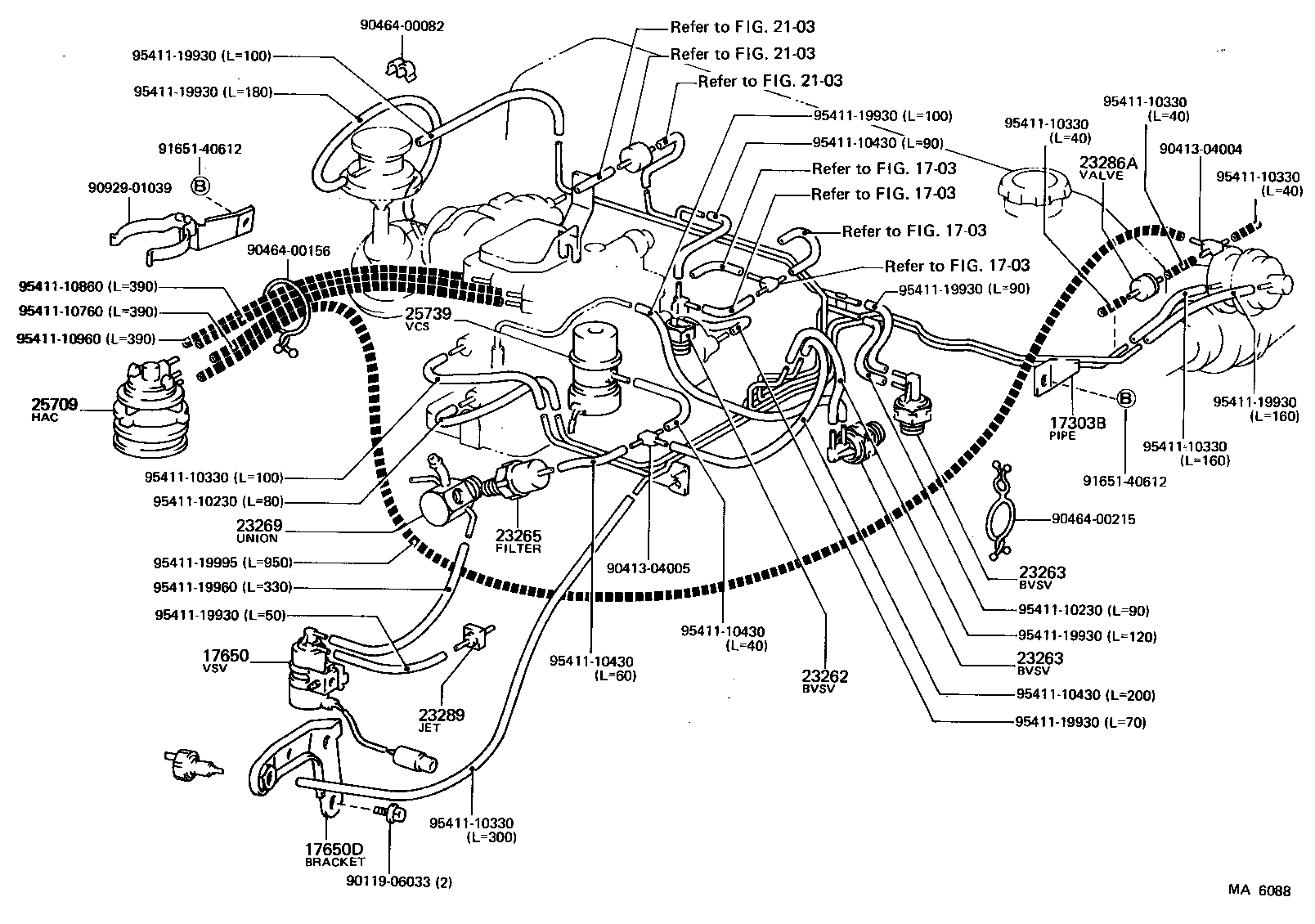

VACUUM PIPING

(8208-8308)22R

CELICA | VACUUM PIPING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 17303B - PIPE SUB-ASSY, AIR, NO.1 17650 - VALVE ASSY, VACUUM SWITCHING 17650D - BRACKET, VACUUM SWITCHING VALVE ** Refer Fig ** Refer Fig ** Refer Fig 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 23265 - FILTER, GAS, NO.1 23269 - UNION(FOR GAS FILTER) 23286A - VALVE, CHECK, NO.2 23289 - JET, NO.2 25709 - VALVE SUB-ASSY, HIGH ALTITUDE COMPENSATOR 25739 - SWITCH, VACUUM CONTROL ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
