TOYOTA CELICA ST184L-BLPVKK / POWERTRAIN-CHASSIS / VALVE BODY OIL STRAINER ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

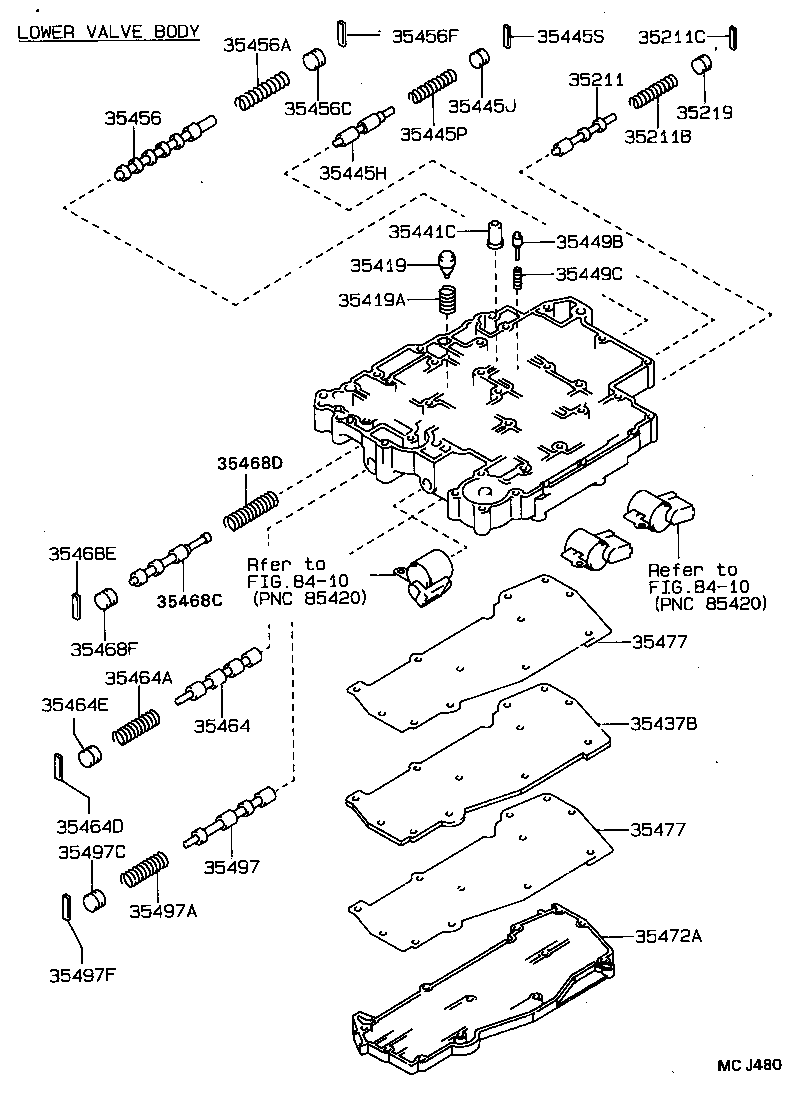

VALVE BODY OIL STRAINER ATM

A241E ILLUST NO. 3 OF 5(8909- )ATM..GTS ; (9108- )NOB..ATM

CELICA | VALVE BODY OIL STRAINER ATM 35211 - VALVE, LOCK UP SIGNAL 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) 35211C - KEY, STRAIGHT (FOR LOCK UP SIGNAL VALVE) 35219 - PLUG, LOCK UP SIGNAL VALVE 35419 - VALVE, CHECK, NO.1 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) 35437B - PLATE, VALVE BODY COVER 35441C - STRAINER, SOLENOID OIL 35445H - VALVE, 2ND COAST MODULATOR 35445J - PLUG (FOR 2ND COAST MODULATOR VALVE) 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) 35445S - KEY, STRAIGHT (FOR 2ND COAST MODULATOR VALVE) 35449B - VALVE, PRESSURE RELIEF 35449C - SPRING, COMPRESSION (FOR VALVE PRESSURE RELIEF) 35456 - VALVE, 2-3 SHIFT 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) 35456C - PLUG (FOR 2-3 SHIFT VALVE) 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) 35464 - VALVE, 1-2 SHIFT 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) 35464D - KEY, STRAIGHT (FOR 1-2 SHIFT VALVE) 35464E - PLUG (FOR 1-2 SHIFT VALVE) 35468C - VALVE, SECONDARY REGULATOR 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) 35468E - KEY, STRAIGHT (FOR SECONDARY REGULATOR VALVE) 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) 35472A - COVER, LOWER VALVE BODY 35477 - GASKET, VALVE BODY COVER 35477 - GASKET, VALVE BODY COVER 35497 - VALVE, 3-4 SHIFT 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) 35497C - PLUG (FOR 3-4 SHIFT VALVE) 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) ** Refer Fig ** Refer Fig
