TOYOTA MR2 AW11L-WJPQRA / POWERTRAIN-CHASSIS / REAR AXLE SHAFT HUB

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

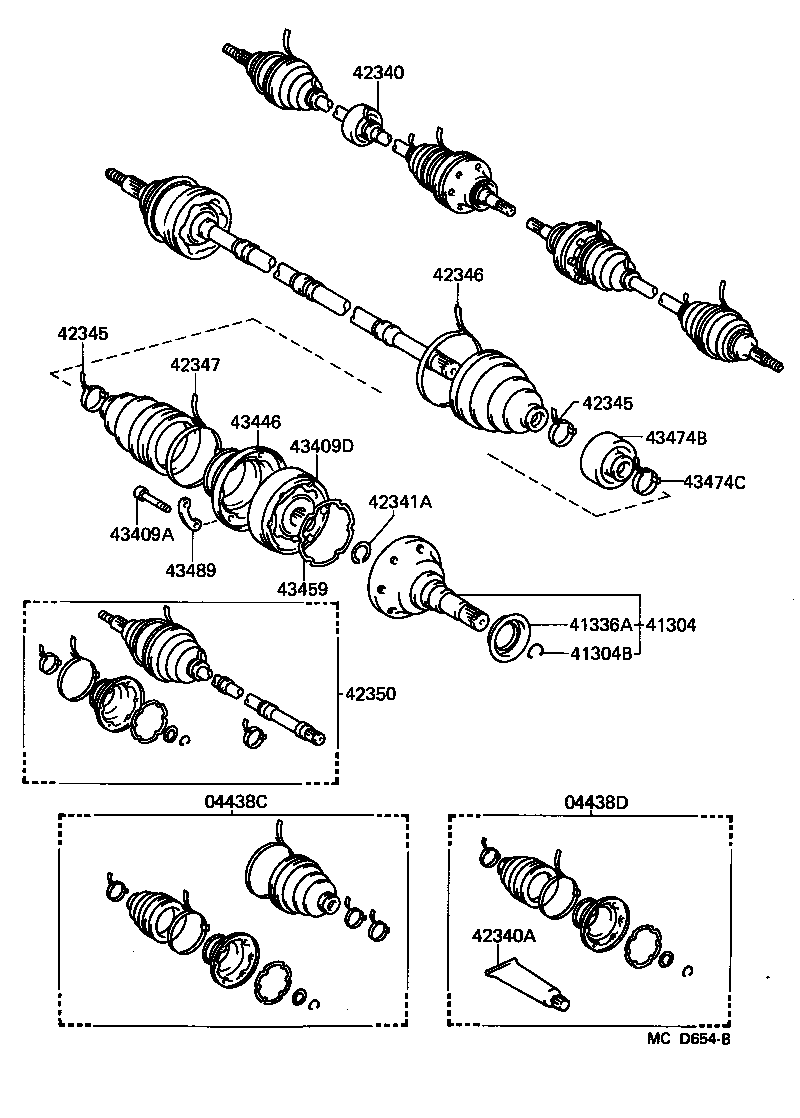

REAR AXLE SHAFT HUB

ILLUST NO. 2 OF 2(8708- )SPC

MR2 | REAR AXLE SHAFT HUB 04438C - BOOT KIT, REAR DRIVE SHAFT 04438D - BOOT KIT, REAR DRIVE SHAFT INBOARD JOINT 41304 - SHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR 41304B - RING, HOLE SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) 41336A - COVER, DUST(FOR DIFFERENTIAL SIDE GEAR SHAFT) 42340 - SHAFT ASSY, REAR DRIVE 42340A - GREASE (FOR REAR DRIVE SHAFT) 42341A - RING, SNAP (FOR REAR DRIVE SHAFT) 42345 - CLAMP, REAR DRIVE SHAFT BOOT 42345 - CLAMP, REAR DRIVE SHAFT BOOT 42346 - CLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT) 42347 - CLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT) 42350 - JOINT ASSY, REAR DRIVE SHAFT OUTBOARD 43409A - BOLT (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT) 43409D - JOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE 43446 - COVER, REAR AXLE INBOARD JOINT 43459 - GASKET, REAR AXLE INBOARD JOINT END COVER 43474B - DAMPER, REAR DRIVE SHAFT 43474C - CLAMP (FOR REAR DRIVE SHAFT DAMPER) 43489 - WASHER, REAR DRIVE SHAFT CROSS GROOVE JOINT
