TOYOTA LAND CRUISER 70 RJ70RV-MNQ / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

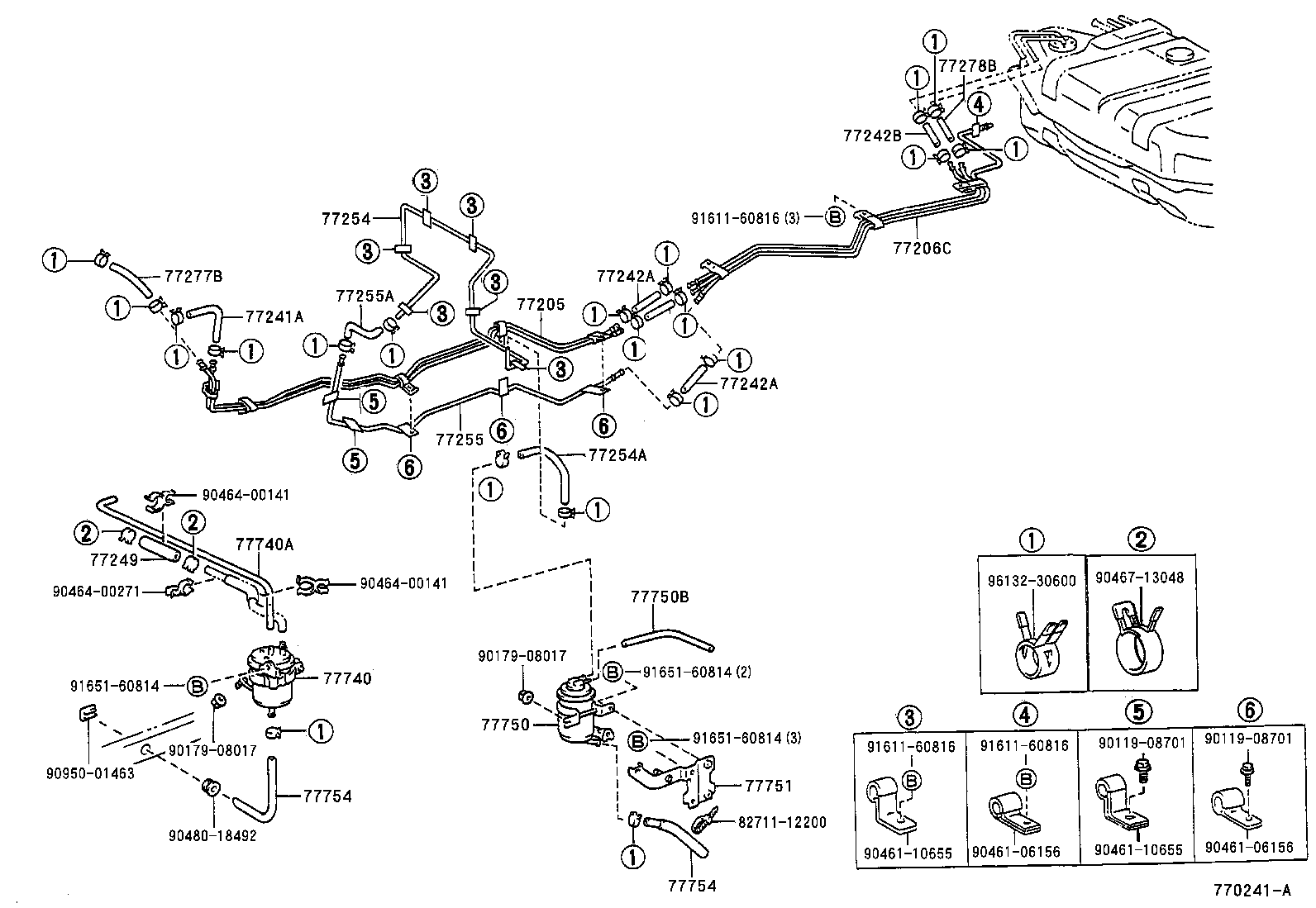

FUEL TUBE ILLUST NO. 2 OF 3(9001-9108)RJ70..ARL

LAND CRUISER 70 | FUEL TANK TUBE 77205 - TUBE SUB-ASSY, FUEL MAIN 77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2 77241A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) 77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) 77249 - HOSE, FUEL EMISSION 77254 - TUBE, FUEL EMISSION, NO.1 77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1) 77255 - TUBE, FUEL EMISSION, NO.2 77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2) 77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1) 77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2) 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77750 - CANISTER ASSY, CHARCOAL 77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER) 77751 - BRACKET, CHARCOAL CANISTER BASE 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
