TOYOTA 4RUNNER VZN185L-GKPGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

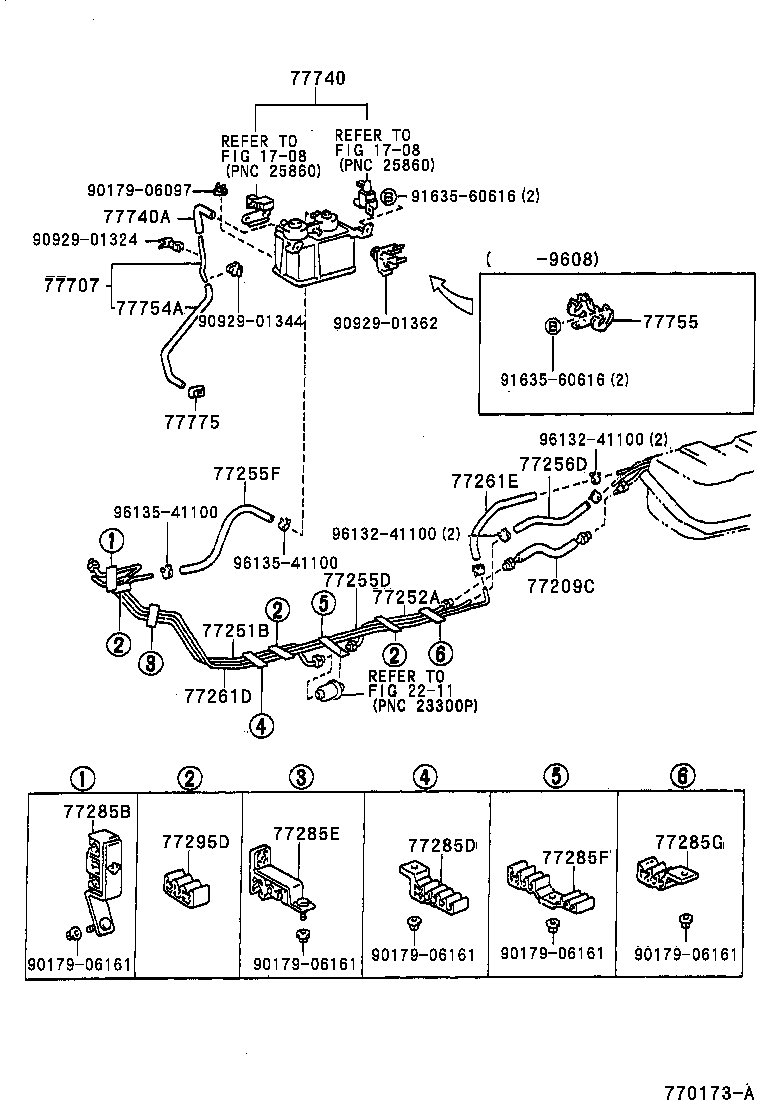

FUEL TANK TUBE

ILLUST NO. 2 OF 2(9511-0008)VZN18#

 4RUNNER |  FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig 77209C - TUBE SUB-ASSY, FUEL TANK MAIN 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77256D - HOSE, FUEL, NO.1 (FOR FUEL RETURN NO.2 TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77295D - GROMMET, FUEL TUBE 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77754A - HOSE, CHARCOAL CANISTER OUTLET, NO.2 77755 - BRACKET, CHARCOAL CANISTER OUTLET HOSE 77775 - GUIDE, CHARCOAL CANISTER OUTLET  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
