TOYOTA CAMRY JPP MCV20L-AEPNKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

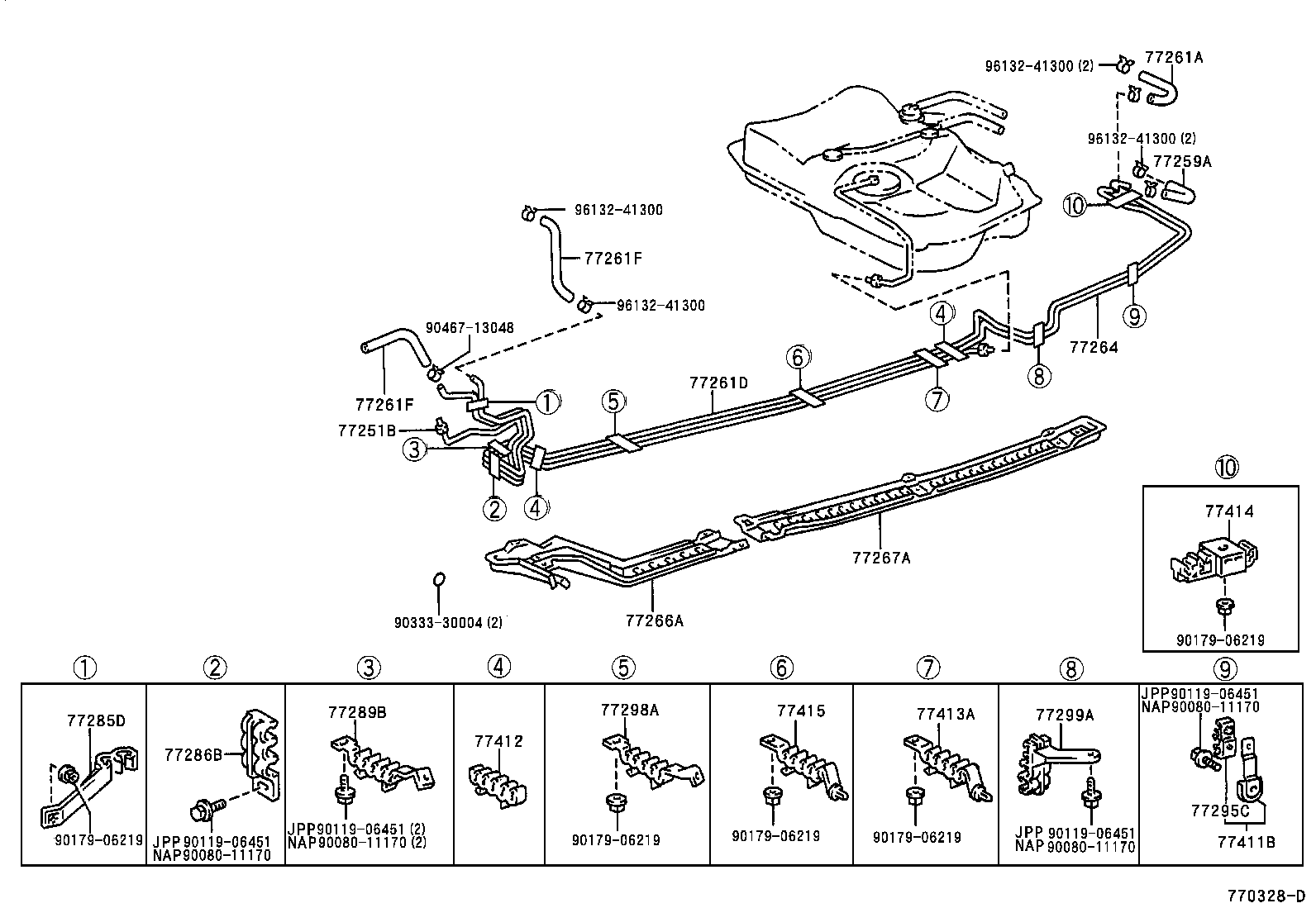

ILLUST NO. 2 OF 2(9708- )SXV20..JPP ; (9808- )MCV20..JPP

CAMRY JPP | FUEL TANK TUBE 77251B - TUBE, FUEL MAIN 77259A - HOSE, FUEL(FOR BREATHER TUBE) 77261A - HOSE, FUEL, NO.1 (FOR FUEL EMISSION TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77264 - TUBE, CANISTER TO FRONT SIDE MEMBER 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77285D - CLAMP, FUEL TUBE, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77295C - GROMMET, FUEL TUBE 77298A - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
