TOYOTA CAMRY NAP MCV20L-CEMNKA / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

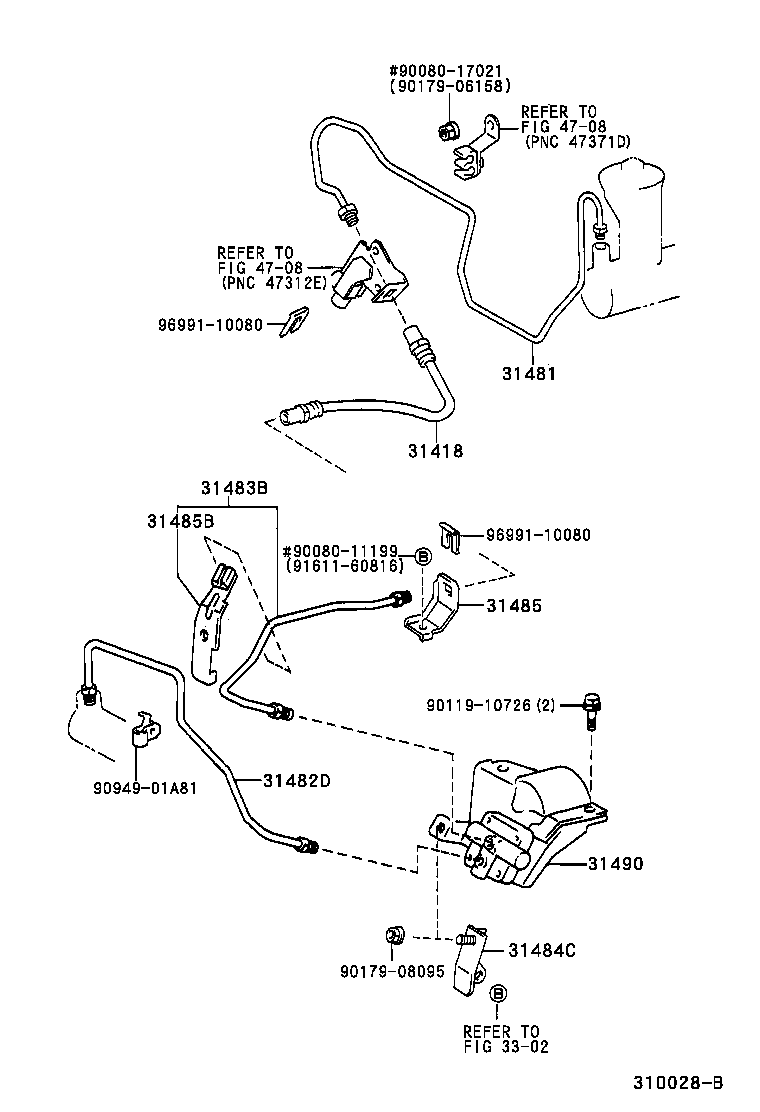

ILLUST NO. 2 OF 2(9607- )MCV20..NAP..MTM

CAMRY NAP | CLUTCH PEDAL FLEXIBLE HOSE 31418 - HOSE, CLUTCH 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE 31484C - BRACKET, CLUTCH TUBE, NO.1 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) 31485B - BRACKET, TUBE CLAMP 31490 - ACCUMULATOR ASSY, CLUTCH ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
