TOYOTA RAV4 EV BEA11L-AWDFSA / POWERTRAIN-CHASSIS / FRONT STEERING GEAR LINK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FRONT STEERING GEAR LINK

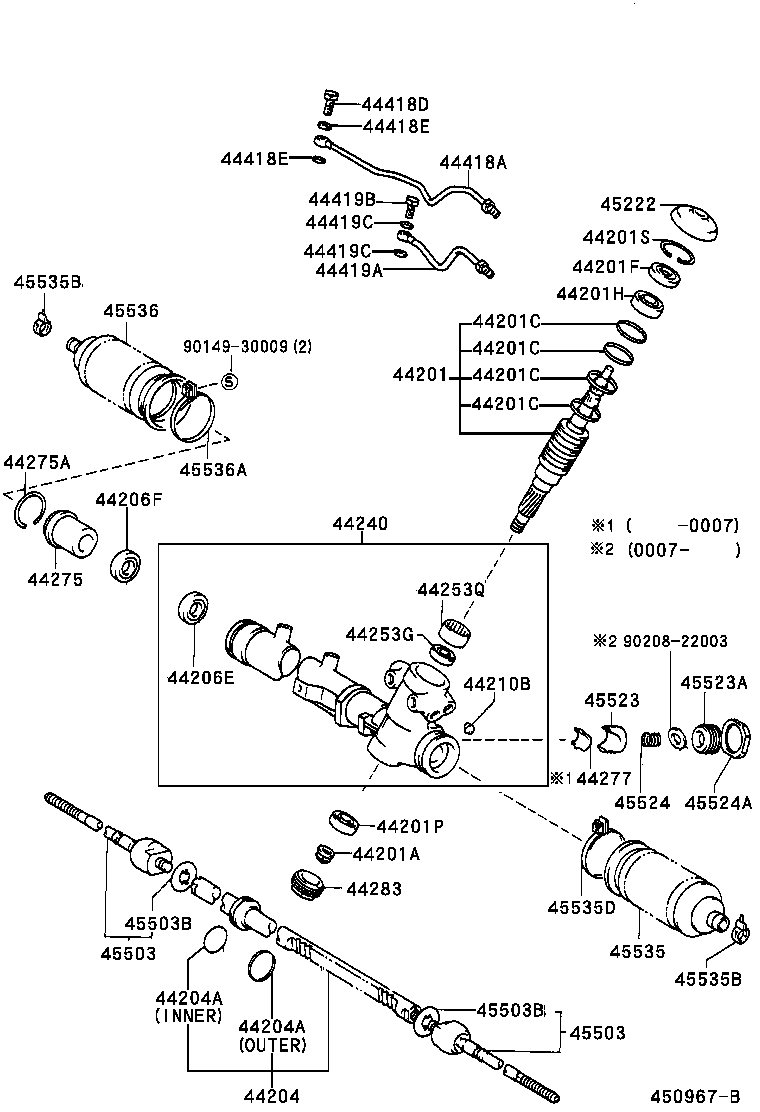

ILLUST NO. 2 OF 2(9709- )

RAV4 EV | FRONT STEERING GEAR LINK 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL 44201A - NUT, LOCK(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201C - RING(FOR POWER STEERING CONTROL VALVE) 44201F - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) 44201H - BEARING(FOR POWER STEERING CONTROL VALVE UPPER) 44201P - BEARING(FOR POWER STEERING CONTROL VALVE LOWER) 44201S - RING, SNAP(FOR POWER STEERING CONTROL VALVE) 44204 - RACK SUB-ASSY, POWER STEERING 44204A - RING(FOR RACK STEERING PISTON) 44204A - RING(FOR RACK STEERING PISTON) 44206E - SEAL, OIL, NO.1(FOR POWER STEERING CYLINDER TUBE) 44206F - SEAL, OIL, NO.2(FOR POWER STEERING CYLINDER TUBE) 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) 44240 - HOUSING ASSY, POWER STEERING RACK 44253G - SEAL, OIL, NO.2(FOR POWER STEERING RACK HOUSING) 44253Q - BUSH(FOR POWER STEERING RACK HOUSING) 44275 - STOPPER, CYLINDER END 44275A - RING, HOLE SNAP(FOR CYLINDER END STOPPER) 44277 - SEAT, RACK GUIDE 44283 - CAP, RACK HOUSING 44418A - TUBE, STEERING RIGHT TURN PRESSURE 44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) 44418E - GASKET(FOR STEERING TURN PRESSURE TUBE) 44419A - TUBE, STEERING LEFT TURN PRESSURE 44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE) 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) 44419C - GASKET(FOR STEERING TURN PRESSURE TUBE) 45222 - COVER, STEERING GEAR DUST 45503 - END SUB-ASSY, STEERING RACK 45503 - END SUB-ASSY, STEERING RACK 45503B - WASHER, CLAW(FOR STEERING RACK END) 45503B - WASHER, CLAW(FOR STEERING RACK END) 45523 - GUIDE, RACK(FOR STEERING GEAR) 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) 45524 - CAP, STEERING RACK GUIDE SPRING 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) 45535 - BOOT, STEERING RACK, NO.1 45535B - CLIP(FOR STEERING RACK BOOT) 45535B - CLIP(FOR STEERING RACK BOOT) 45535D - CLAMP(FOR STEERING RACK BOOT NO.1) 45536 - BOOT, STEERING RACK, NO.2 45536A - CLAMP(FOR STEERING RACK BOOT NO.2) ** Std Part ** Std Part
