TOYOTA RAV4 EV BEA11L-AWDFSA / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

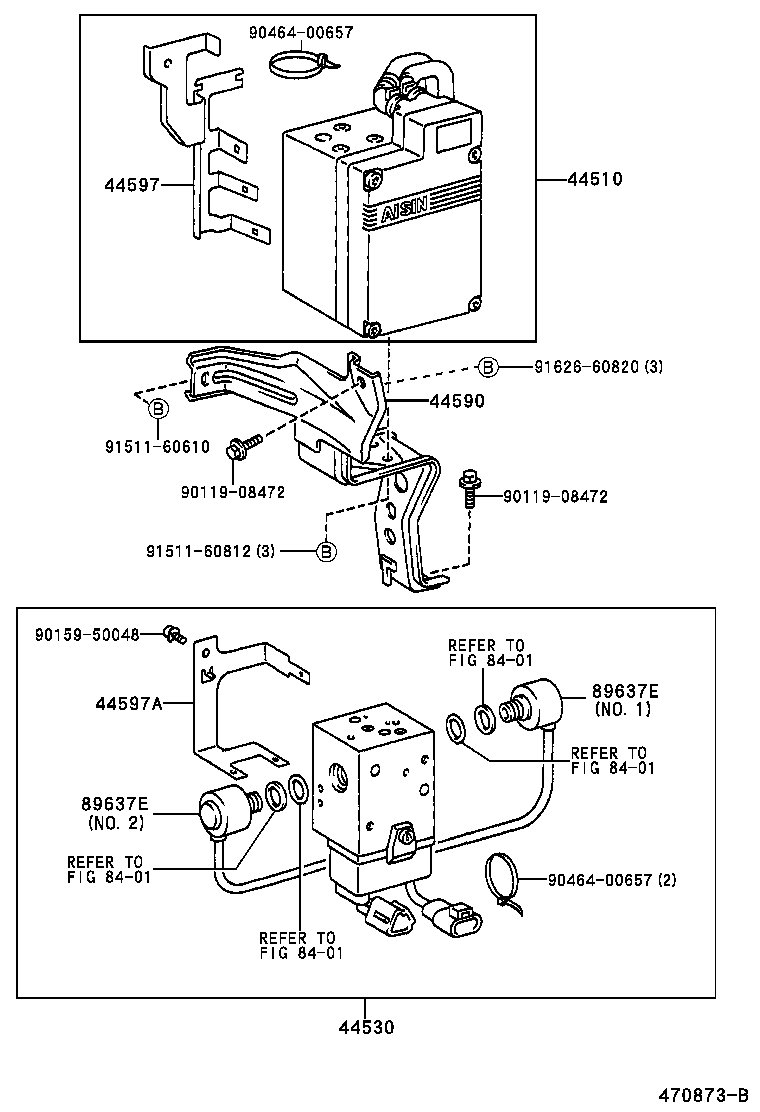

BRAKE TUBE CLAMP

ILLUST NO. 2 OF 2(9709- )

RAV4 EV | BRAKE TUBE CLAMP 44510 - ACTUATOR ASSY, BRAKE 44530 - VALVE ASSY, BRAKE ACTUATOR CONTROL 44590 - BRACKET ASSY, BRAKE ACTUATOR 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 44597A - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.2 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 89637E - SENSOR, OIL PRESSURE 89637E - SENSOR, OIL PRESSURE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
