TOYOTA CAMRY JPP SXV23L-AEPNCA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

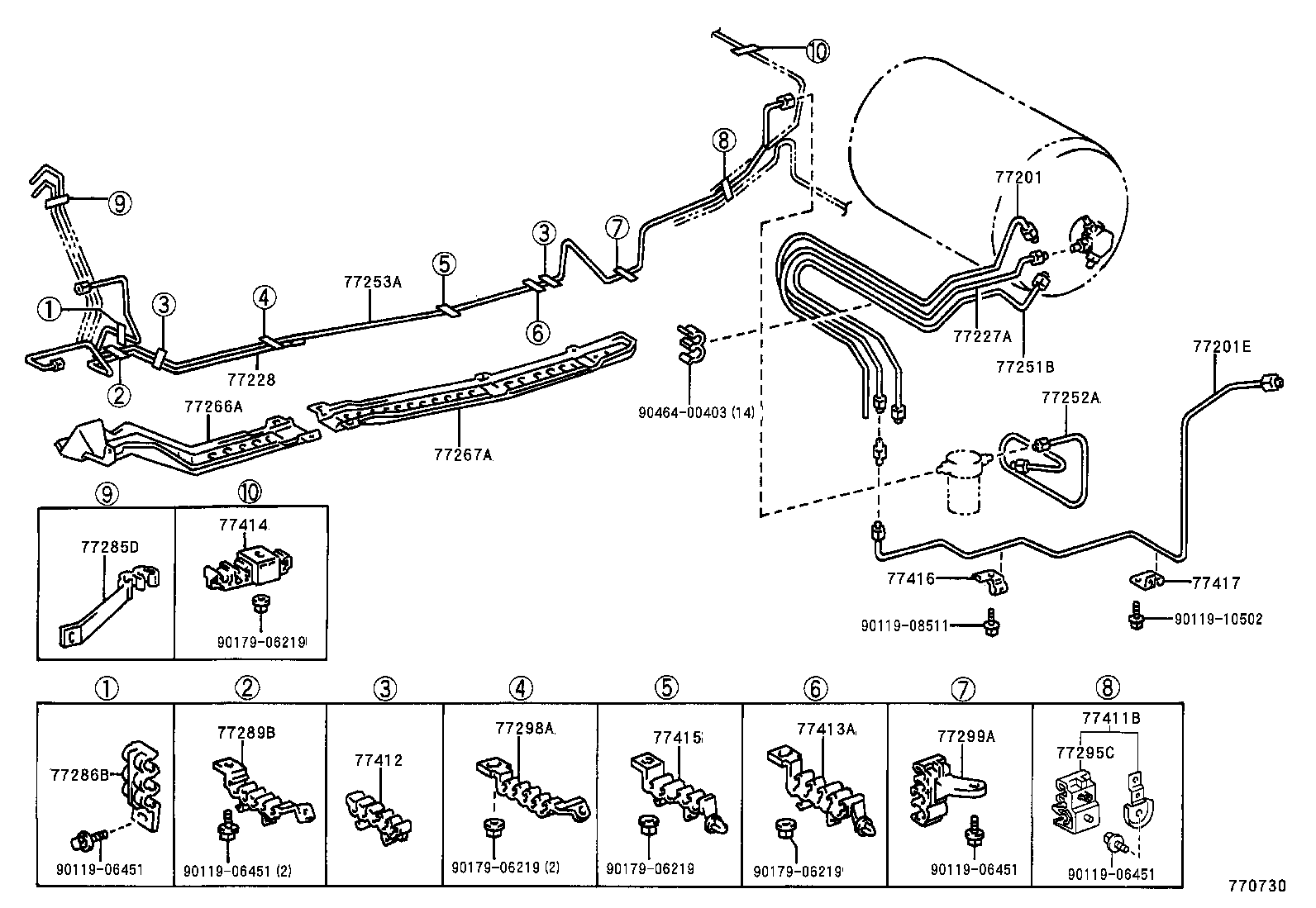

FUEL TANK TUBE

CNG TUBE ILLUST NO. 2 OF 2(9908- )SXV23..JPP

CAMRY JPP | FUEL TANK TUBE 77201 - PIPE SUB-ASSY, FUEL TANK INLET 77201E - PIPE SUB-ASSY, FUEL TANK FILLER 77227A - TUBE, FUEL TANK EVAPORATION VENT 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77253A - TUBE, FUEL MAIN, NO.3 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77285D - CLAMP, FUEL TUBE, NO.1 77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2 77289B - CLAMP, FUEL TUBE, NO.3 77295C - GROMMET, FUEL TUBE 77298A - CLAMP, FUEL TUBE, NO.4 77299A - CLAMP, FUEL TUBE, NO.5 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
