TOYOTA CAMRY NAP SXV20L-CEMDKA / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

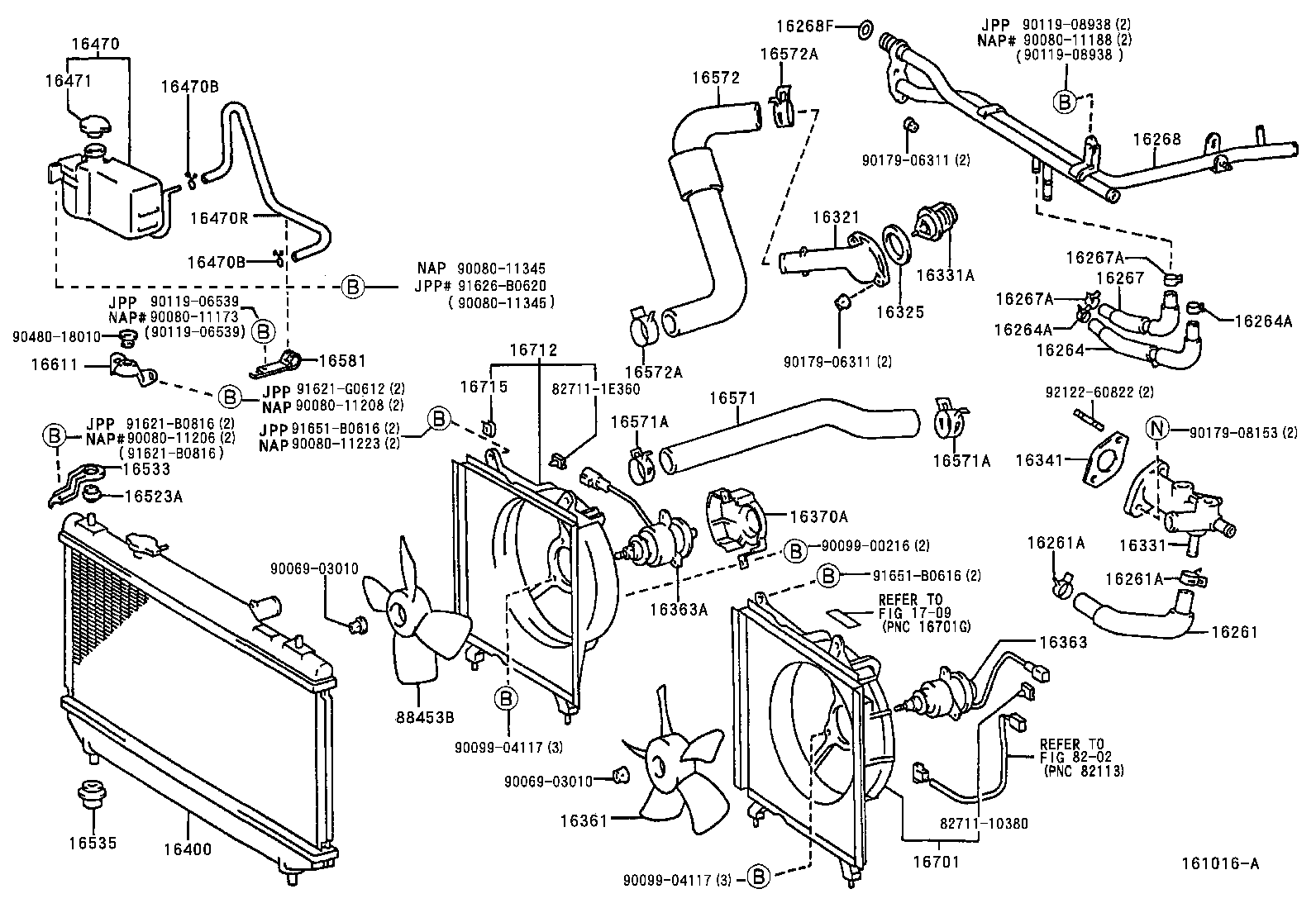

ILLUST NO. 1 OF 2(0003- )5SFE..NAP

CAMRY NAP | RADIATOR WATER OUTLET 16261 - HOSE, WATER BY-PASS 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16268 - PIPE, WATER BY-PASS, NO.1 16268F - RING, O(FOR WATER BY-PASS PIPE) 16321 - INLET, WATER 16325 - GASKET, WATER INLET HOUSING, NO.1 16331 - OUTLET, WATER 16331A - THERMOSTAT 16341 - GASKET, WATER OUTLET 16361 - FAN 16363 - MOTOR, COOLING FAN 16363A - MOTOR, COOLING FAN, NO.2 16370A - PLATE COVER 16400 - RADIATOR ASSY 16470 - TANK ASSY, RADIATOR RESERVE 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) 16470R - HOSE, NO.2(FOR RADIATOR RESERVE TANK) 16471 - CAP SUB-ASSY, RESERVE TANK 16523A - CUSHION, RADIATOR SUPPORT 16533 - SUPPORT, RADIATOR, UPPER 16535 - SUPPORT, RADIATOR, LOWER 16571 - HOSE, RADIATOR, INLET 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) 16572 - HOSE, RADIATOR, OUTLET 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) 16581 - CLAMP, HOSE(FOR WATER HOSE) 16611 - BRACKET, RADIATOR RESERVE TANK 16701 - SHROUD SUB-ASSY, FAN 16712 - SHROUD, FAN, NO.2 16715 - BRACKET, FAN SHROUD ** Refer Fig ** Refer Fig ** Std Part ** Std Part 88453B - FAN, COOLING, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
