TOYOTA TACOMA VZN170L-CRMDKAB / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

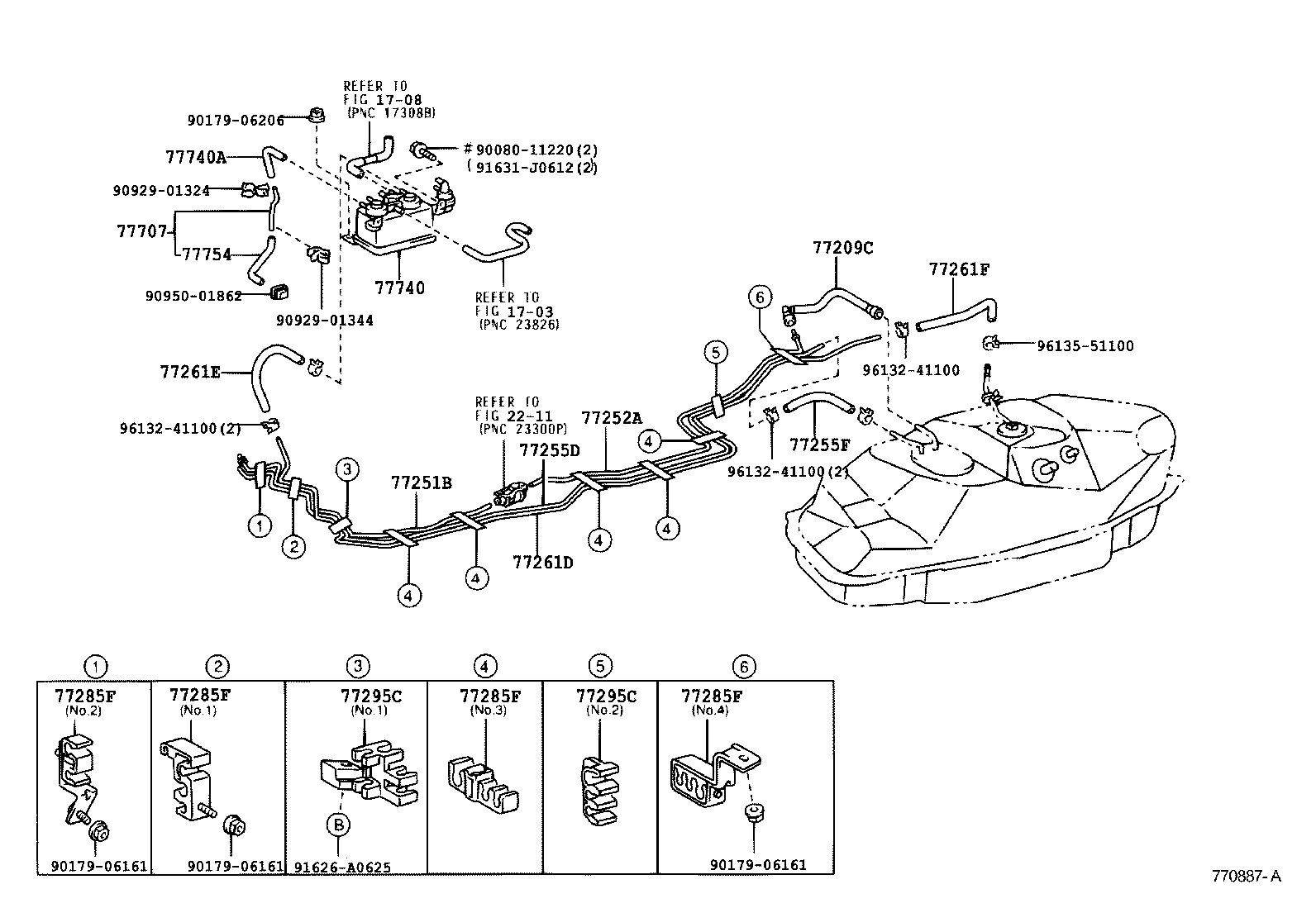

ILLUST NO. 2 OF 2(0009-0109)VZN170..XTR

TACOMA | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig 77209C - TUBE SUB-ASSY, FUEL TANK MAIN 77251B - TUBE, FUEL MAIN 77252A - TUBE, FUEL MAIN, NO.2 77255D - TUBE, FUEL RETURN 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) 77261D - TUBE, FUEL TANK TO CANISTER 77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE) 77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE) 77285F - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77295C - GROMMET, FUEL TUBE 77295C - GROMMET, FUEL TUBE 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET 77740 - CANISTER ASSY, CHARCOAL 77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER) 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
