TOYOTA HIGHLANDER MCU25L-BWPNKA / TOOL-ENGINE-FUEL / RADIATOR WATER OUTLET

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

RADIATOR WATER OUTLET

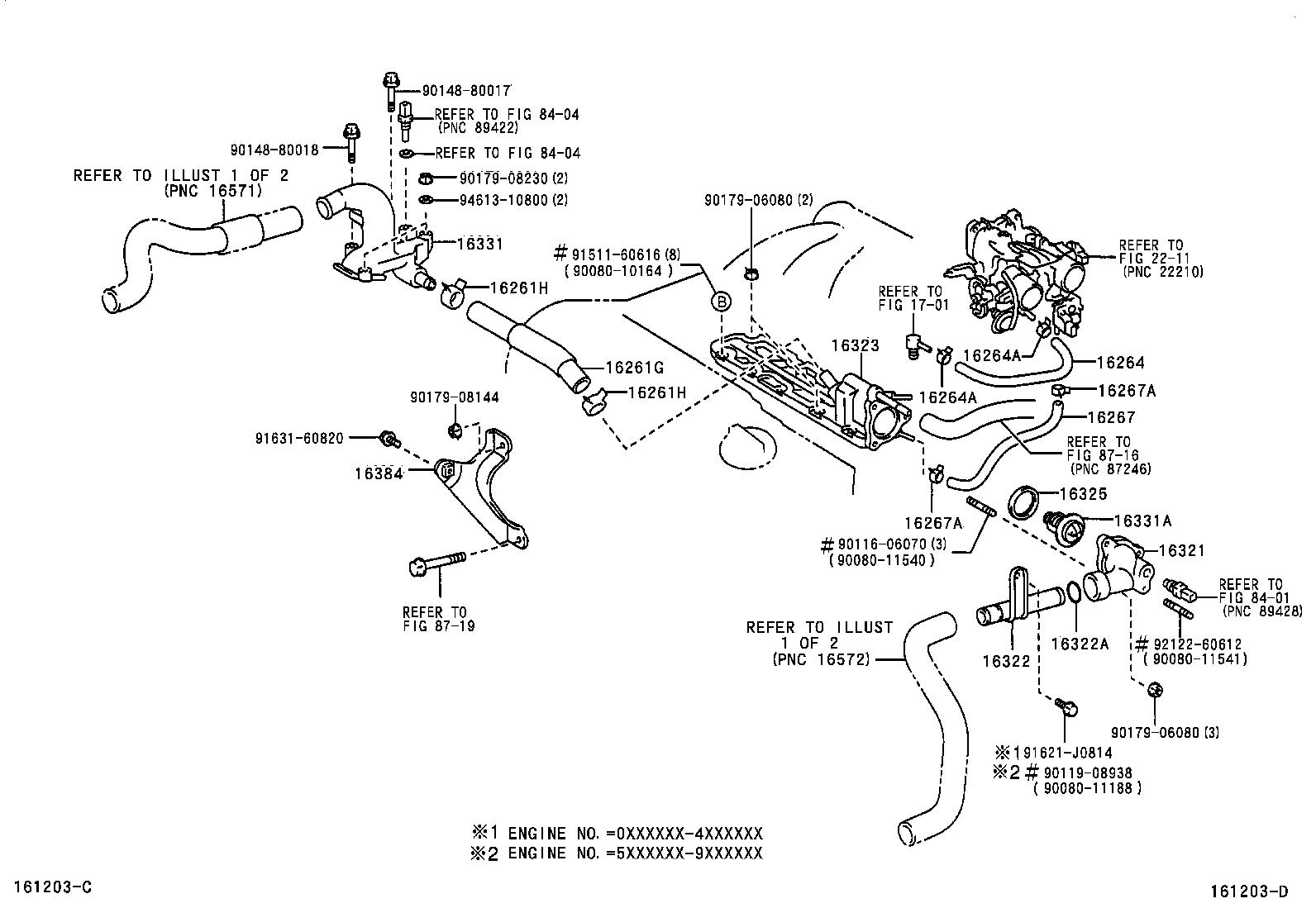

ILLUST NO. 2 OF 2(0011-0308)1MZFE

HIGHLANDER | RADIATOR WATER OUTLET 16261G - HOSE, WATER BY-PASS, NO.1 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) 16264 - HOSE, WATER BY-PASS, NO.2 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) 16267 - HOSE, WATER BY-PASS, NO.3 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) 16321 - INLET, WATER 16322 - PIPE, WATER INLET 16322A - RING, O(FOR WATER INLET) 16323 - HOUSING, WATER INLET 16325 - GASKET, WATER INLET HOUSING, NO.1 16331 - OUTLET, WATER 16331A - THERMOSTAT 16384 - BRACKET, FAN BELT ADJUSTING BAR ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
