TOYOTA SEQUOIA UCK35L-GKSSKA / ELECTRICAL / HEATING AIR CONDITIONING COMPRESSOR

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

HEATING AIR CONDITIONING COMPRESSOR

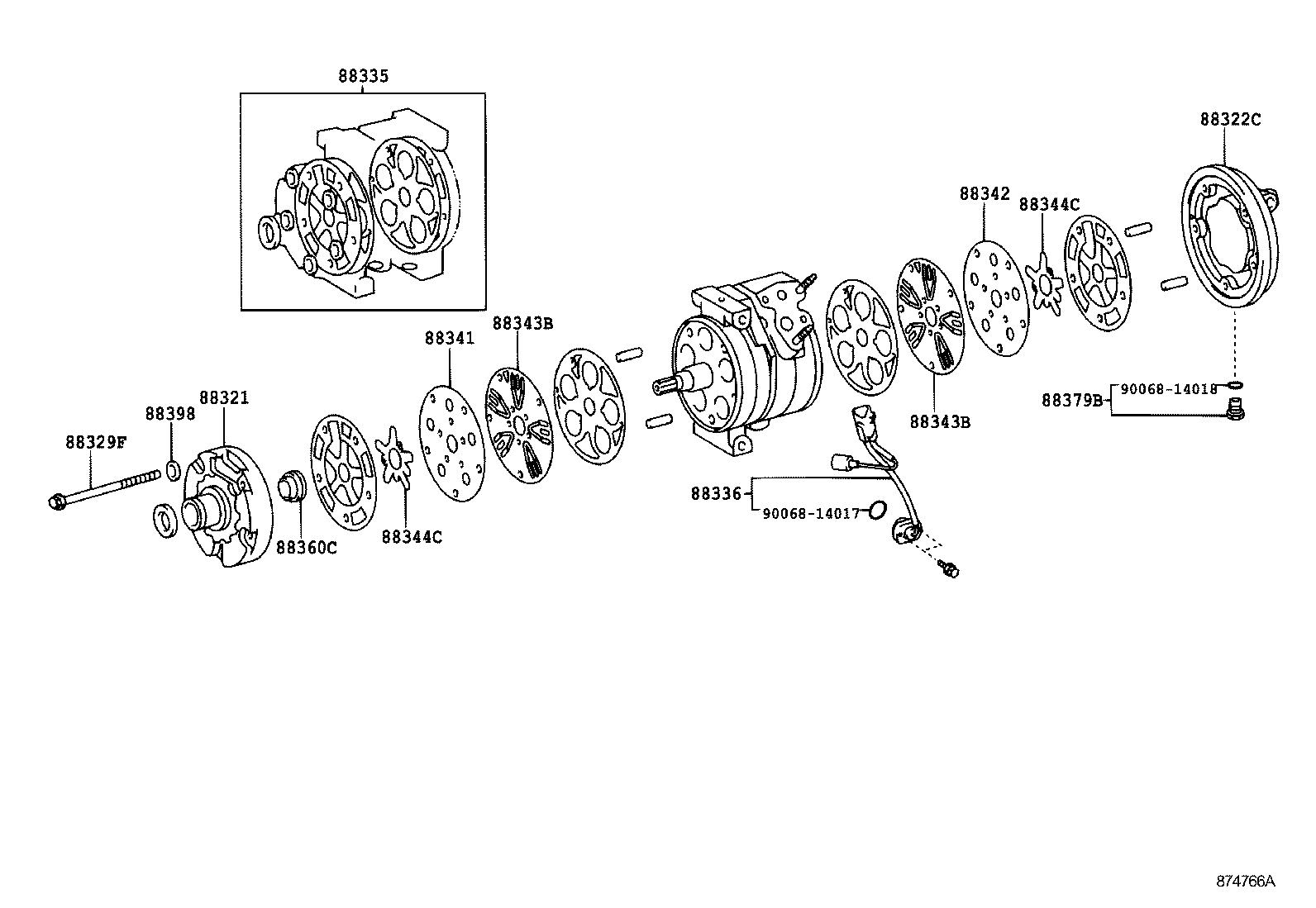

ILLUST NO. 2 OF 2(0009-0408)

SEQUOIA | HEATING AIR CONDITIONING COMPRESSOR 88321 - HEAD, COOLER COMPRESSOR CYLINDER 88322C - HEAD, CYLINDER, REAR 88329F - BOLT, COMPRESSOR, NO.2 88335 - GASKET KIT, OVERHAUL 88336 - SENSOR, COMPRESSOR 88341 - PLATE, FRONT VALVE 88342 - PLATE, COMPRESSOR VALVE, RR 88343B - REED, SUCTION VALVE 88343B - REED, SUCTION VALVE 88344C - REED, DISCHARGE VALVE 88344C - REED, DISCHARGE VALVE 88360C - SEAL ASSY, SHAFT 88379B - VALVE, PRESSURE RELIEF 88398 - PACKING, COMPRESSOR ** Std Part ** Std Part
