TOYOTA TACOMA RZN161L-TRPDKAB / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

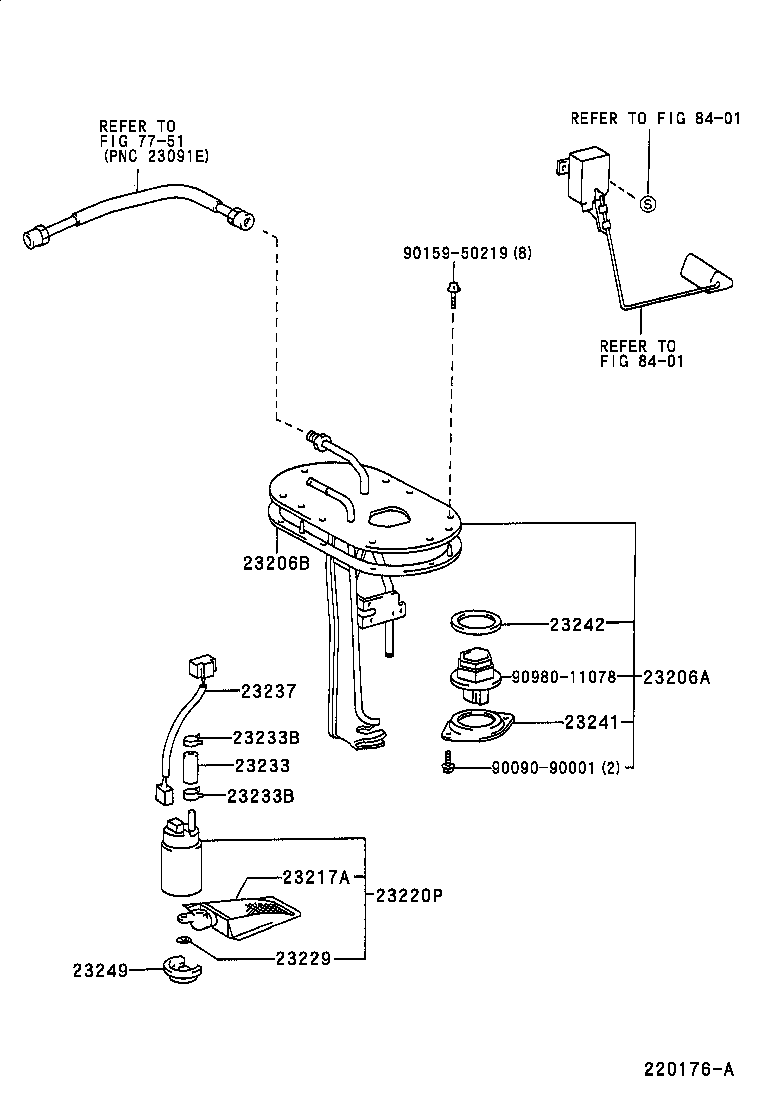

ILLUST NO. 2 OF 2(9501- )3RZFE

TACOMA | FUEL INJECTION SYSTEM 23206A - BRACKET, FUEL PUMP 23206B - GASKET, FUEL PUMP BRACKET 23217A - FILTER, FUEL PUMP 23220P - PUMP ASSY, FUEL 23229 - CLIP(FOR FUEL PUMP FILTER) 23233 - HOSE, FUEL PUMP 23233B - CLIP(FOR FUEL PUMP HOSE) 23233B - CLIP(FOR FUEL PUMP HOSE) 23237 - WIRE SUB-ASSY, LEAD 23241 - SUPPORT, FUEL PUMP CONNECTOR 23242 - GASKET, FUEL PUMP CONNECTOR 23249 - RUBBER, CUSHION(FOR FUEL PUMP) ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part
