TOYOTA CAMRY JPP ACV30L-AEAGKA / TOOL-ENGINE-FUEL / FUEL INJECTION SYSTEM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL INJECTION SYSTEM

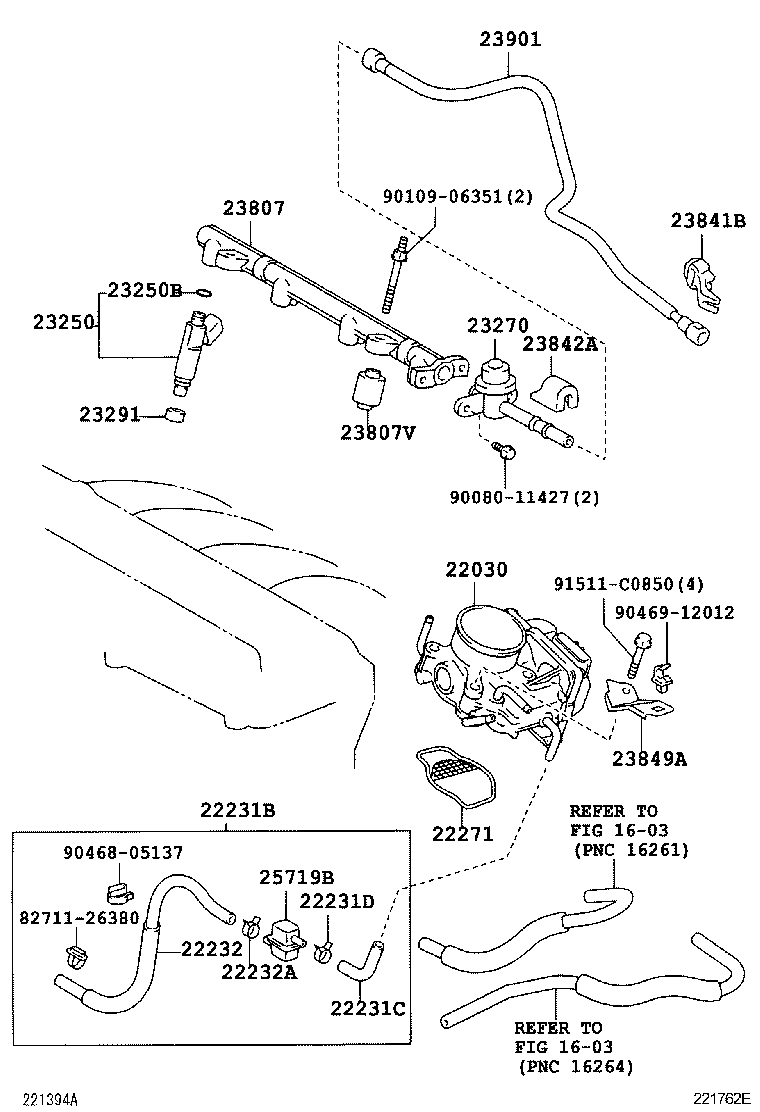

*108CALIFORNIA SPEC ILLUST NO. 1 OF 2(0502-0510)2AZFE..JPP..5FC

CAMRY JPP | FUEL INJECTION SYSTEM ** Refer Fig ** Refer Fig 22030 - BODY ASSY, THROTTLE W/MOTOR 22231B - HOSE, THROTTLE BODY 22231C - HOSE, THROTTLE BODY, NO.1 22231D - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) 22232 - HOSE, THROTTLE BODY, NO.2 22232A - CLAMP OR CLIP(FOR THROTTLE BODY HOSE) 22271 - GASKET, THROTTLE BODY 23250 - INJECTOR ASSY, FUEL 23250B - RING, O(FOR FUEL INJECTOR) 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION 23291 - INSULATOR, INJECTOR VIBRATION 23807 - PIPE SUB-ASSY, FUEL DELIVERY 23807V - SPACER, NO.1(FOR DELIVERY PIPE) 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) 23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI) 23849A - SUPPORT, FUEL PIPE 23901 - TUBE SUB-ASSY, FUEL 25719B - TANK, VACUUM SURGE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
