TOYOTA CAMRY HV JPP AHV40L-AEXGBA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

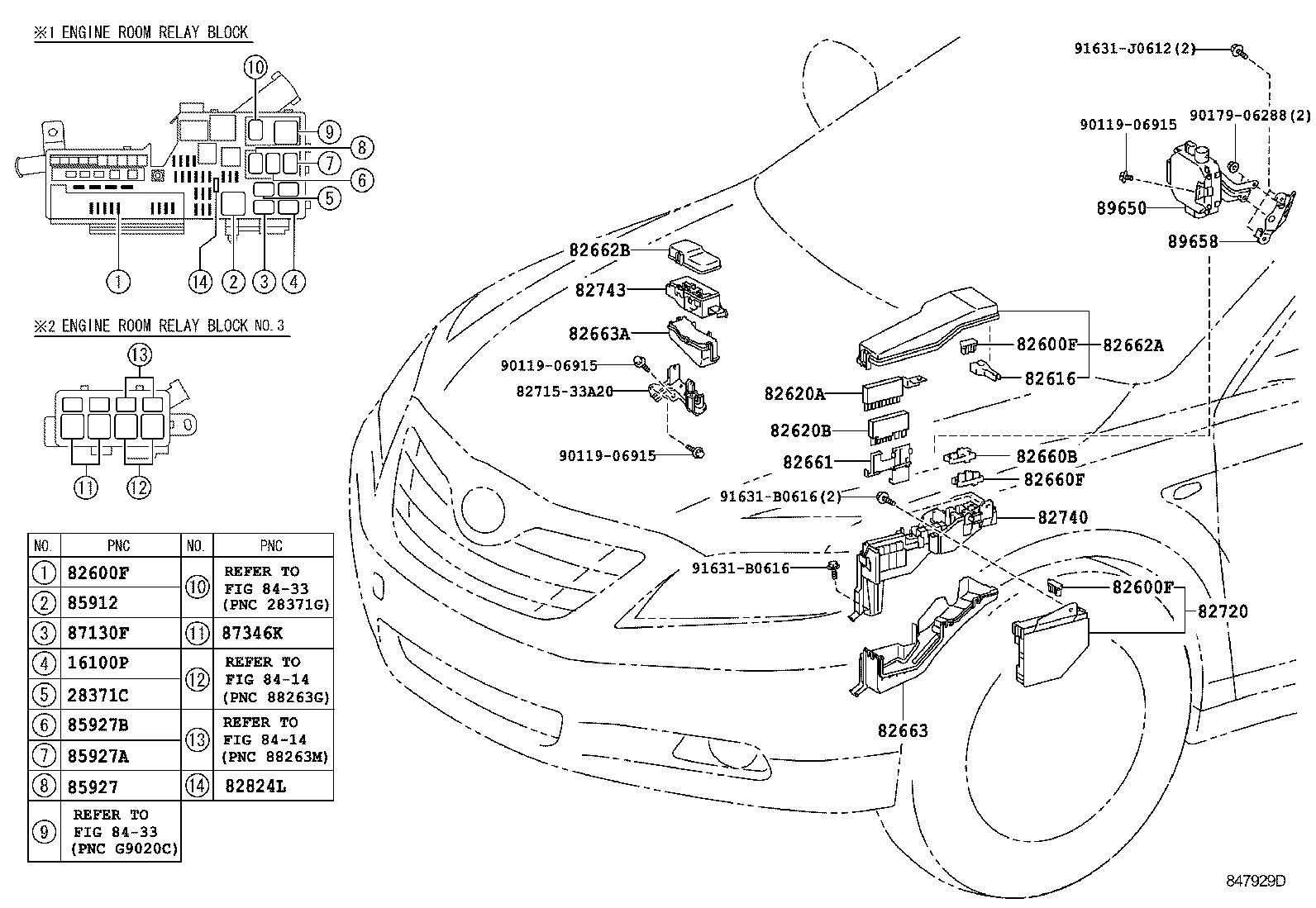

ENGINE ROOM ILLUST NO. 2 OF 7(0603- )JPP

CAMRY HV JPP | SWITCH RELAY COMPUTER 16100P - RELAY, WATER PUMP 28371C - RELAY, IGNITION, NO.2 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82616 - PULLER, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82620B - BLOCK ASSY, FUSIBLE LINK 82660B - BLOCK ASSY, RELAY 82660F - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 ** Std Part 82720 - BLOCK ASSY, ENGINE ROOM JUNCTION 82740 - BLOCK ASSY, ENGINE ROOM RELAY 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85912 - RELAY, DEFOGGER 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 85927B - RELAY, COOLING FAN, NO.3 87130F - RELAY, BATTERY BLOWER, NO.1 87346K - RELAY, PTC HEATER 89650 - COMPUTER ASSY, POWER STEERING 89658 - BRACKET, POWER STEERING COMPUTER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
