TOYOTA CAMRY NAP ACV40L-CEMSKA / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

CLUTCH PEDAL FLEXIBLE HOSE

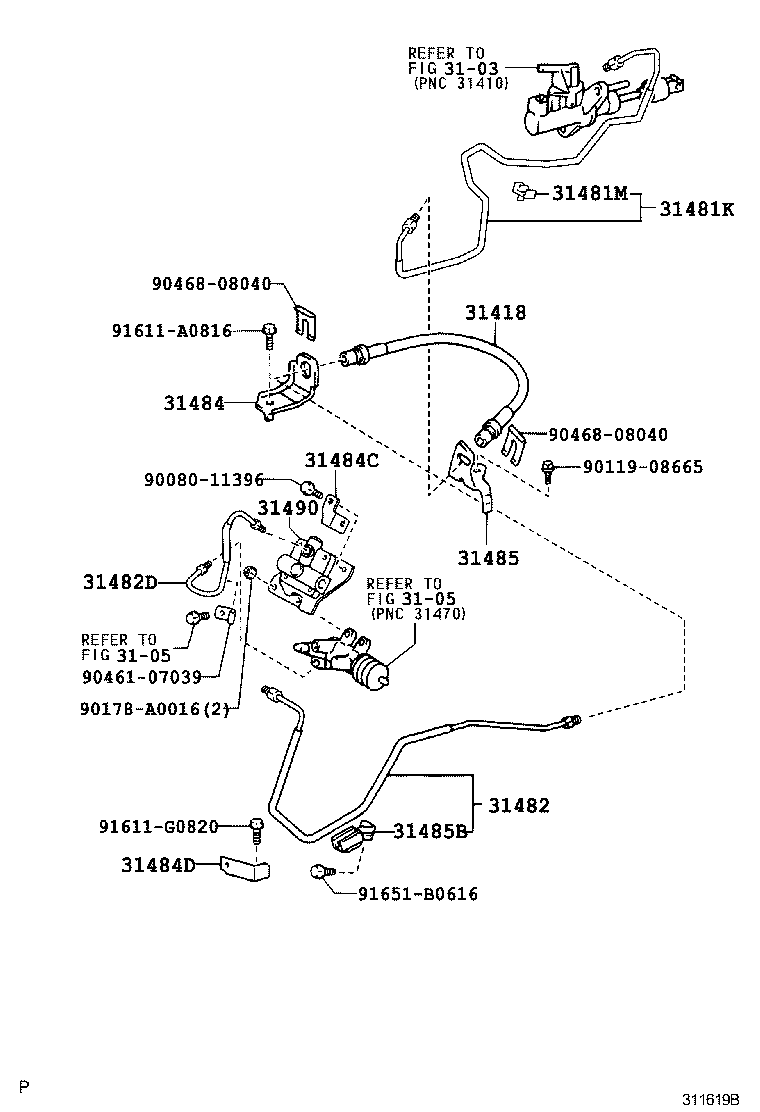

ILLUST NO. 2 OF 2(0602-0903)NAP..5F

CAMRY NAP | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig ** Refer Fig 31418 - HOSE, CLUTCH 31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR 31481M - CLAMP(FOR CLUTCH MASTER CYLINDER TUBE) 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31482D - TUBE, CLUTCH RELEASE CYLINDER TO ACCUMULATOR 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) 31484C - BRACKET, CLUTCH TUBE, NO.1 31484D - BRACKET, CLUTCH TUBE, NO.2 31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH) 31485B - BRACKET, TUBE CLAMP 31490 - ACCUMULATOR ASSY, CLUTCH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
