TOYOTA LAND CRUISER 70 HZJ79R-TJMRS / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

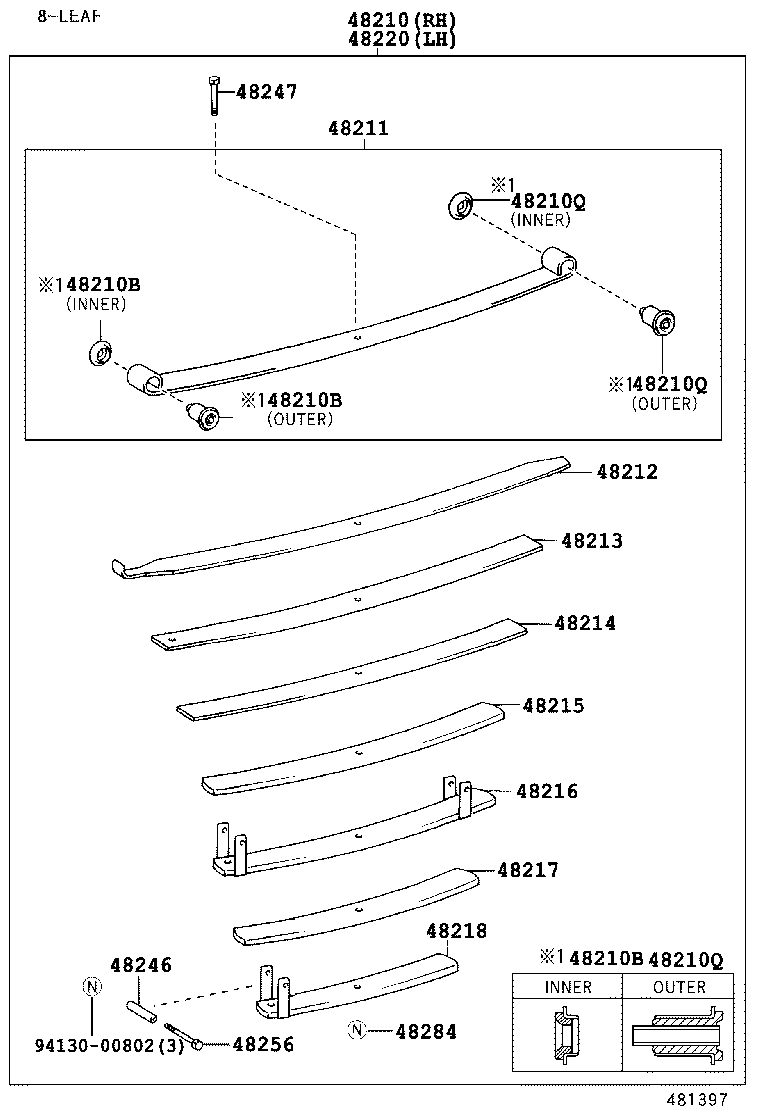

REAR SPRING SHOCK ABSORBER

ILLUST NO. 2 OF 3(0108- )FZJ79,HDJ79,HZJ79

 LAND CRUISER 70 |  REAR SPRING SHOCK ABSORBER 48210 - SPRING ASSY, REAR RH 48210B - BUSH(FOR REAR SPRING PIN) 48210B - BUSH(FOR REAR SPRING PIN) 48210B - BUSH(FOR REAR SPRING PIN) 48210Q - BUSH(FOR REAR SPRING SHACKLE) 48210Q - BUSH(FOR REAR SPRING SHACKLE) 48210Q - BUSH(FOR REAR SPRING SHACKLE) 48211 - LEAF, REAR SPRING, NO.1 48212 - LEAF, REAR SPRING, NO.2 48213 - LEAF, REAR SPRING, NO.3 48214 - LEAF, REAR SPRING, NO.4 48215 - LEAF, REAR SPRING, NO.5 48216 - LEAF, REAR SPRING, NO.6 48217 - LEAF, REAR SPRING, NO.7 48218 - LEAF, REAR SPRING, NO.8 48220 - SPRING ASSY, REAR LH 48246 - CASE, REAR SPRING CLIP BOLT 48247 - BOLT, REAR SPRING, CENTER 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) 48284 - NUT, REAR SPRING CENTER BOLT  ** Std Part
