TOYOTA SEQUOIA USK60L-GKTSKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

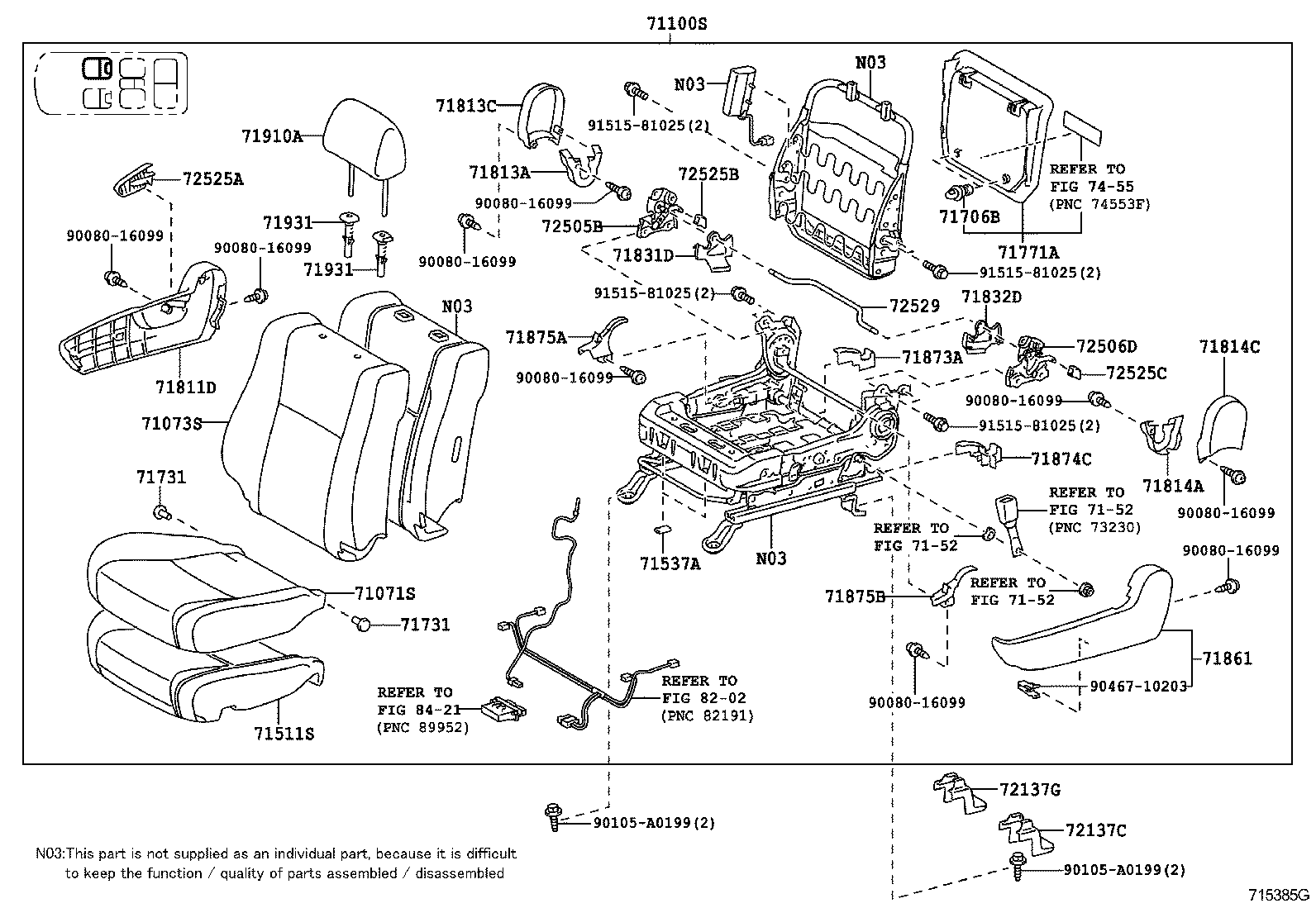

SEAT SEAT TRACK

PASSENGER SEAT W(SEAT BACK BOARD) ILLUST NO. 2 OF 5(0711- )SR5

SEQUOIA | SEAT SEAT TRACK 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71100S - SEAT ASSY, FRONT RH 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) ** Refer Fig ** Refer Fig ** Refer Fig 71537A - PROTECTOR, FRONT SEAT CUSHION 71706B - CLIP, FRONT SEAT BACK BOARD 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) 71731 - FASTENER SUB-ASSY, SEAT COVER, A (FOR FRONT SEAT) 71771A - BOARD, FRONT SEAT BACK 71811D - SHIELD, FRONT SEAT CUSHION, RH 71813A - SHIELD, FRONT SEAT BACK, RH 71813C - SHIELD, FRONT SEAT BACK, RH 71814A - SHIELD, FRONT SEAT BACK, LH 71814C - SHIELD, FRONT SEAT BACK, LH 71831D - COVER, FRONT SEAT HINGE, RH 71832D - COVER, FRONT SEAT HINGE, LH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71873A - SHIELD, FRONT SEAT CUSHION, LOWER 71874C - SHIELD, FRONT SEAT CUSHION, LOWER 71875A - COVER, RECLINING ADJUSTER INSIDE, RH 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72137C - COVER, SEAT TRACK INNER, RH 72137G - COVER, SEAT TRACK, OUTER RH 72505B - LOCK SUB-ASSY, FRONT SEAT BACK, RH 72506D - LOCK SUB-ASSY, FRONT SEAT BACK, LH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH 72525C - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 RH 72529 - ROD, FRONT SEAT BACK LOCK HANDLE ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
