TOYOTA SEQUOIA USK60L-GKTSKA / POWERTRAIN-CHASSIS / OIL COOLER TUBE ATM

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

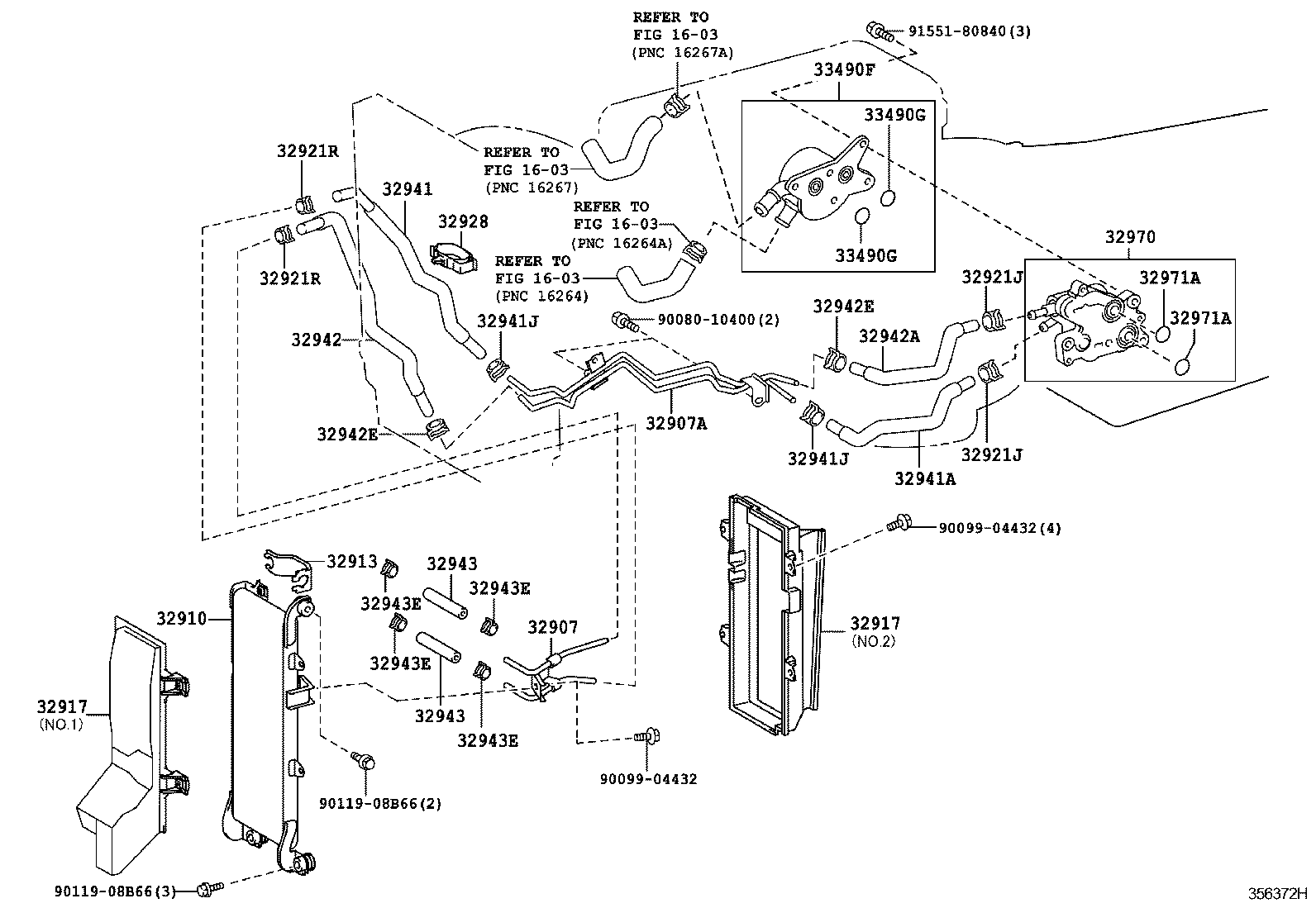

OIL COOLER TUBE ATM

AB60E,AB60F W(AIR OIL COOLER) (0711-0911)USK6#

SEQUOIA | OIL COOLER TUBE ATM ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 32907A - TUBE, OIL COOLER 32910 - COOLER ASSY, OIL 32913 - BRACKET, OIL COOLER 32917 - DUCT, TRANSMISSION OIL COOLER AIR 32917 - DUCT, TRANSMISSION OIL COOLER AIR 32921J - CLIP(FOR OIL COOLER HOSE) 32921J - CLIP(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32921R - CLIP, NO.2(FOR OIL COOLER HOSE) 32928 - CLAMP, FLEXIBLE HOSE, NO.1 32941 - HOSE, OIL COOLER INLET, NO.1 32941A - HOSE, OIL COOLER INLET, NO.2 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32941J - CLIP, NO.1(FOR OIL COOLER HOSE) 32942 - HOSE, OIL COOLER OUTLET, NO.1 32942A - HOSE, OIL COOLER OUTLET, NO.2 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32942E - CLIP, NO.2(FOR OIL COOLER HOSE) 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32943E - CLIP, NO.3(FOR OIL COOLER HOSE) 32970 - COOLER ASSY, TRANSMISSION OIL W/THERMOSTAT 32971A - RING, O(FOR TRANSMISSION OIL THERMOSTAT) 32971A - RING, O(FOR TRANSMISSION OIL THERMOSTAT) 33490F - COOLER ASSY, TRANSMISSION OIL 33490G - RING, O (FOR TRANSMISSION OIL COOLER) 33490G - RING, O (FOR TRANSMISSION OIL COOLER) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
