TOYOTA SEQUOIA USK60L-GKTSKA / POWERTRAIN-CHASSIS / REAR SPRING SHOCK ABSORBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

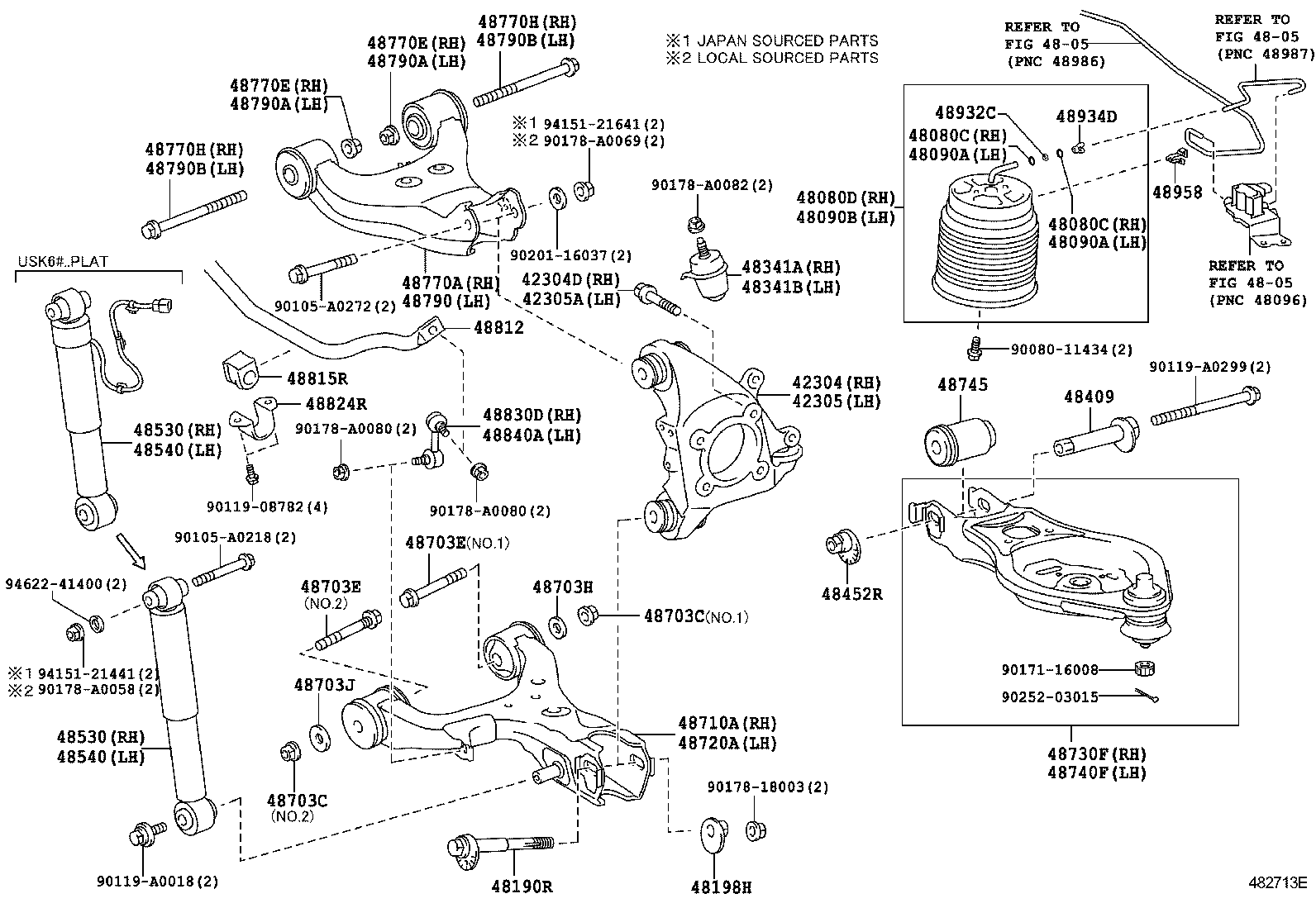

REAR SPRING SHOCK ABSORBER

AIR SUSPENSION (0711- )

 SEQUOIA |  REAR SPRING SHOCK ABSORBER 42304 - CARRIER SUB-ASSY, REAR AXLE, RH 42304D - BOLT (FOR REAR AXLE CARRIER RH) 42305 - CARRIER SUB-ASSY, REAR AXLE, LH 42305A - BOLT (FOR REAR AXLE CARRIER LH) ** Refer Fig ** Refer Fig ** Refer Fig 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) 48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH) 48080D - CYLINDER ASSY, PNEUMATIC, REAR RH 48090A - RING, O(FOR REAR PNEUMATIC CYLINDAR LH) 48090A - RING, O(FOR REAR PNEUMATIC CYLINDAR LH) 48090B - CYLINDER ASSY, PNEUMATIC, REAR LH 48190R - CAM ASSY, CAMBER ADJUST 48198H - CAM, CAMBER ADJUST, NO.2 48341A - BUMPER, REAR SPRING, NO.1 RH 48341B - BUMPER, REAR SPRING, NO.1 LH 48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST 48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2 48530 - ABSORBER ASSY, SHOCK, REAR RH 48530 - ABSORBER ASSY, SHOCK, REAR RH 48540 - ABSORBER ASSY, SHOCK, REAR LH 48540 - ABSORBER ASSY, SHOCK, REAR LH 48703C - NUT(FOR REAR SUSPENSION ARM) 48703C - NUT(FOR REAR SUSPENSION ARM) 48703E - BOLT(FOR REAR SUSPENSION ARM) 48703E - BOLT(FOR REAR SUSPENSION ARM) 48703H - WASHER, NO.1(FOR REAR SUSPENSION ARM) 48703J - WASHER, NO.2(FOR REAR SUSPENSION ARM) 48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH 48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH 48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH 48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH 48745 - BUSH, LATERAL CONTROL ROD 48770A - ARM ASSY, UPPER CONTROL, REAR RH 48770E - NUT, NO.1(FOR REAR UPPER CONTROL ARM RH) 48770E - NUT, NO.1(FOR REAR UPPER CONTROL ARM RH) 48770H - BOLT(FOR REAR UPPER CONTROL ARM RH) 48770H - BOLT(FOR REAR UPPER CONTROL ARM RH) 48790 - ARM ASSY, UPPER CONTROL, REAR LH 48790A - NUT, NO.1(FOR REAR UPPER CONTROL ARM LH) 48790A - NUT, NO.1(FOR REAR UPPER CONTROL ARM LH) 48790B - BOLT(FOR REAR UPPER CONTROL ARM LH) 48790B - BOLT(FOR REAR UPPER CONTROL ARM LH) 48812 - BAR, STABILIZER, REAR 48815R - BUSH, STABILIZER(FOR REAR) 48824R - BRACKET, STABILIZER(FOR REAR) 48830D - LINK ASSY, REAR STABILIZER, RH 48840A - LINK ASSY, REAR STABILIZER, LH 48932C - PLATE, HEIGHT CONTROL TUBE 48934D - CONNECTOR, HEIGHT CONTROL TUBE 48958 - CLIP, PNEUMATIC CYLINDER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
