TOYOTA 4RUNNER GRN210L-GKAGKA / TOOL-ENGINE-FUEL / WATER PUMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

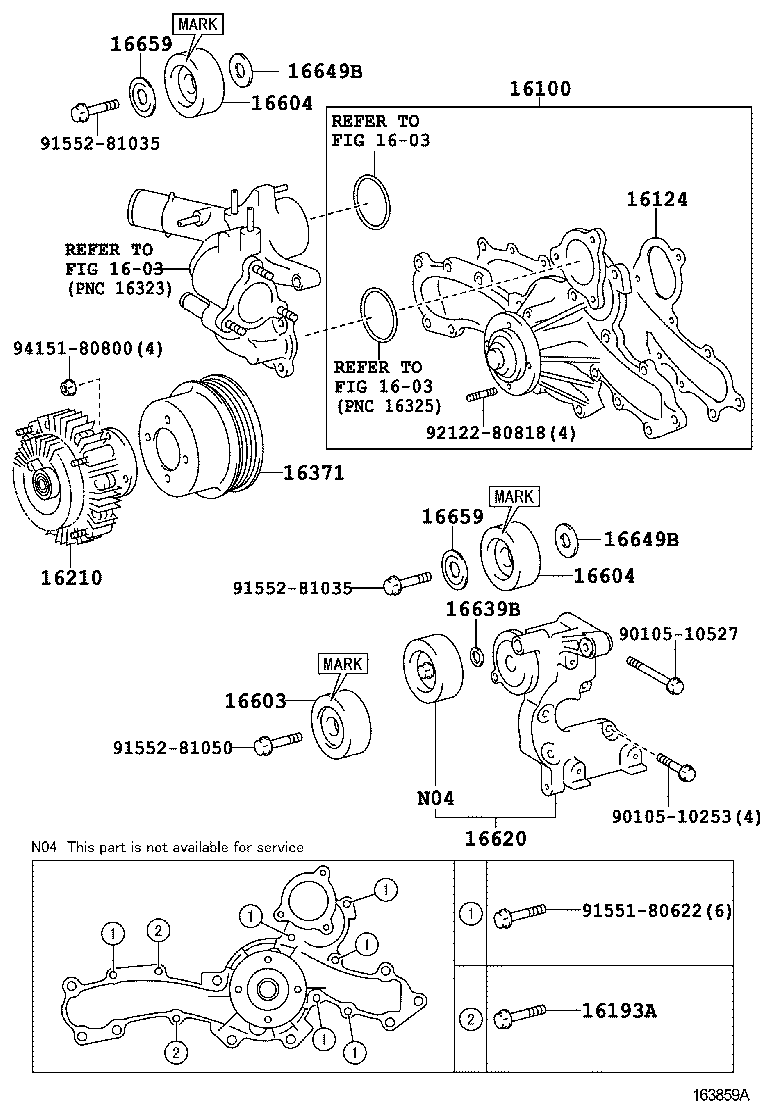

WATER PUMP

(0903- )1GRFE

4RUNNER | WATER PUMP ** Refer Fig ** Refer Fig ** Refer Fig 16100 - PUMP ASSY, ENGINE WATER 16124 - GASKET, WATER PUMP COVER 16193A - BOLT(FOR WATER PUMP COVER) 16210 - COUPLING ASSY, FLUID 16371 - PULLEY, FAN 16603 - PULLEY SUB-ASSY, IDLER, NO.1 16604 - PULLEY SUB-ASSY, IDLER, NO.2 16604 - PULLEY SUB-ASSY, IDLER, NO.2 16620 - TENSIONER ASSY, V-RIBBED BELT 16639B - SPACER, IDLER PULLEY 16649B - PLATE, IDLER PULLEY COVER 16649B - PLATE, IDLER PULLEY COVER 16659 - PLATE, IDLER PULLEY COVER, NO.2 16659 - PLATE, IDLER PULLEY COVER, NO.2 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
