TOYOTA HIGHLANDER JPP MHU48L-BRXMKA / ELECTRICAL / BATTERY BATTERY CABLE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BATTERY BATTERY CABLE

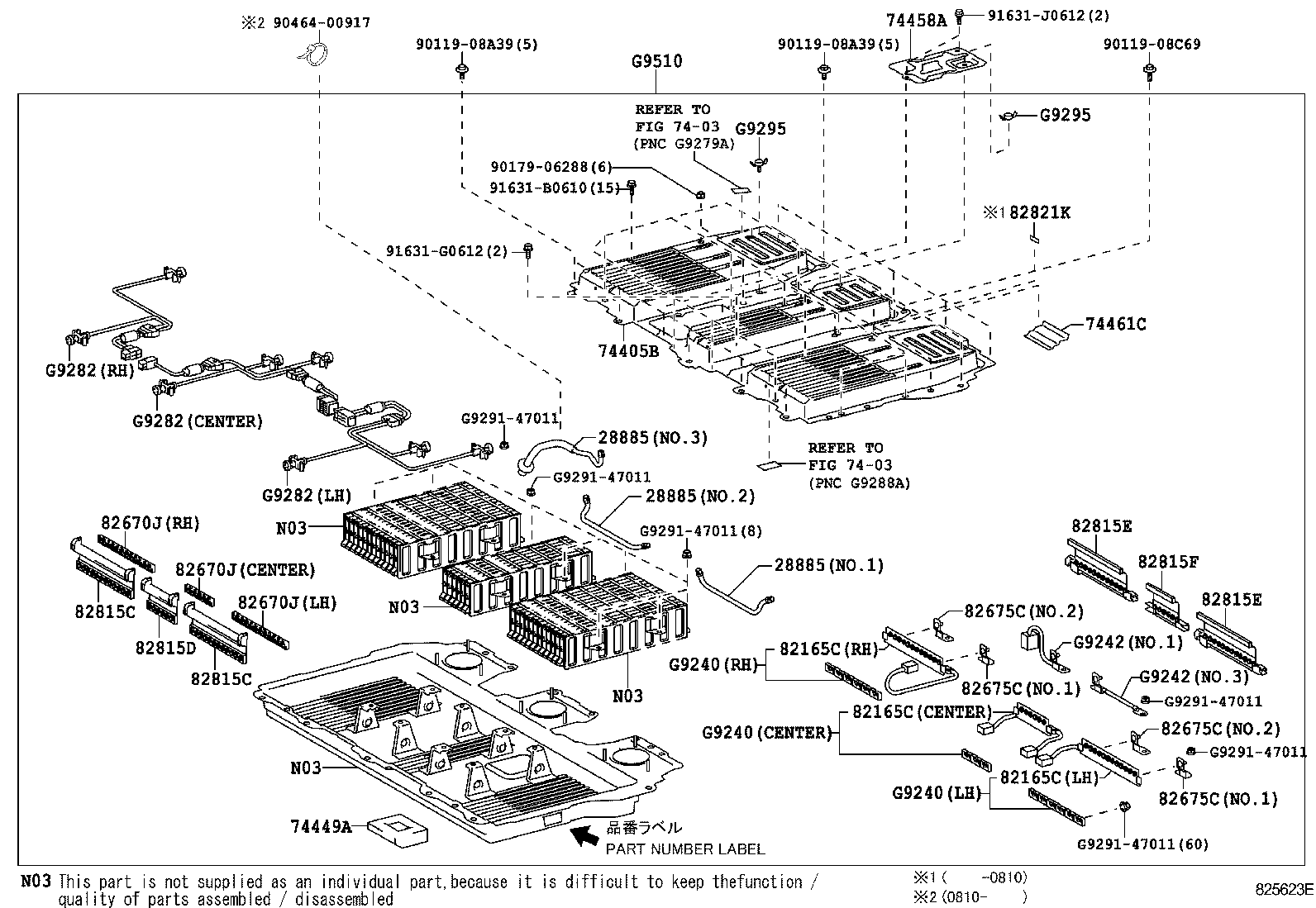

HV BATTERY ILLUST NO. 3 OF 3(0708-1008)MHU48

HIGHLANDER JPP | BATTERY BATTERY CABLE 28885 - HOSE, BATTERY ROOM VENTILATION 28885 - HOSE, BATTERY ROOM VENTILATION 28885 - HOSE, BATTERY ROOM VENTILATION ** Refer Fig ** Refer Fig 74405B - COVER SUB-ASSY, BATTERY 74449A - PACKING, BATTERY, NO.2 74458A - LID, BATTERY COVER, NO.1 74461C - COVER, BATTERY 82165C - WIRE, FRAME, NO.2 82165C - WIRE, FRAME, NO.2 82165C - WIRE, FRAME, NO.2 82670J - BLOCK ASSY, JUNCTION 82670J - BLOCK ASSY, JUNCTION 82670J - BLOCK ASSY, JUNCTION 82675C - TERMINAL, JUNCTION 82675C - TERMINAL, JUNCTION 82675C - TERMINAL, JUNCTION 82675C - TERMINAL, JUNCTION 82815C - COVER, WIRING HARNESS PROTECTOR, NO.1 82815C - COVER, WIRING HARNESS PROTECTOR, NO.1 82815D - COVER, WIRING HARNESS PROTECTOR, NO.2 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 82815E - COVER, WIRING HARNESS PROTECTOR, NO.3 82815F - COVER, WIRING HARNESS PROTECTOR, NO.4 82821K - COVER, CONNECTOR ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE G9240 - JUNCTION BLOCK ASSY, BATTERY W/CABLE G9242 - CABLE, MAIN BATTERY G9242 - CABLE, MAIN BATTERY G9282 - THERMISTOR, HYBRID BATTERY G9282 - THERMISTOR, HYBRID BATTERY G9282 - THERMISTOR, HYBRID BATTERY ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G9295 - BRACKET, ELECTRIC VEHICLE BATTERY WATER TANK G9295 - BRACKET, ELECTRIC VEHICLE BATTERY WATER TANK G9510 - BATTERY ASSY, HV SUPPLY
