TOYOTA LAND CRUISER 70 VDJ78R-RJMRYQ / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

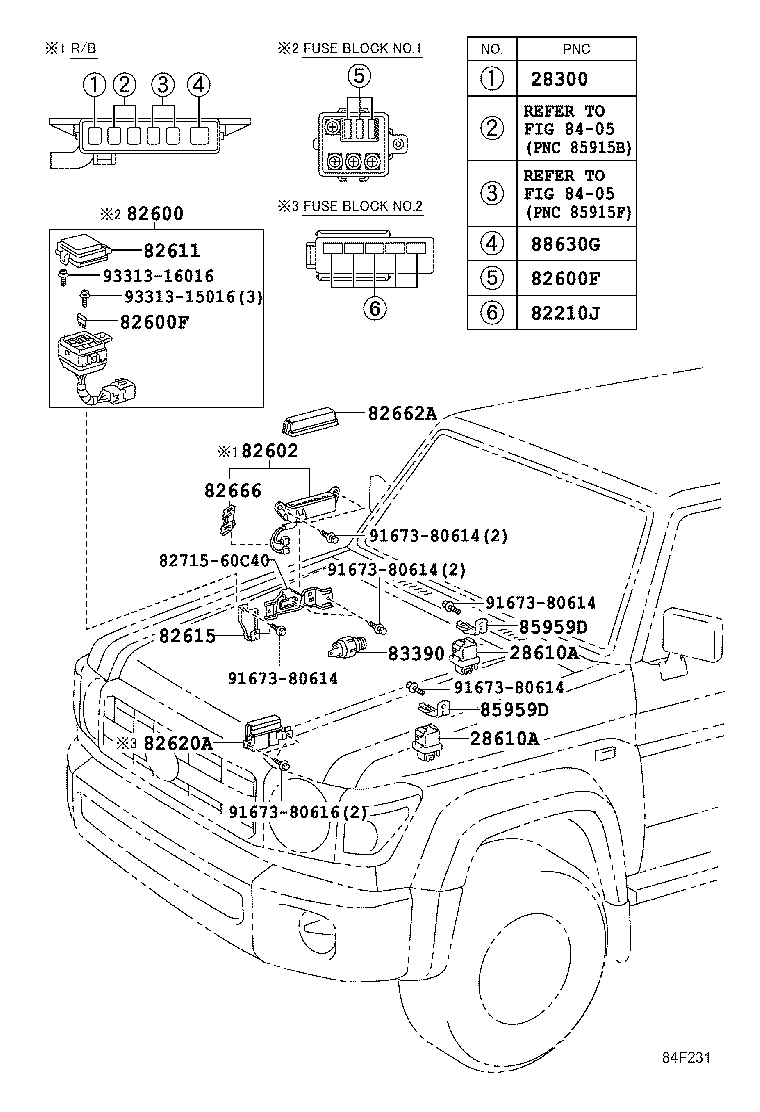

ENGINE ROOM ILLUST NO. 2 OF 6(0701-0907)VDJ7#

 LAND CRUISER 70 |  SWITCH RELAY COMPUTER 28300 - RELAY ASSY, STARTER 28610A - RELAY ASSY, GLOW PLUG(SUB) 28610A - RELAY ASSY, GLOW PLUG(SUB) 82210J - FUSIBLE LINK 82600 - BLOCK ASSY, FUSE 82600F - FUSE, FUSE BLOCK 82600F - FUSE, FUSE BLOCK 82602 - BLOCK SUB-ASSY, RELAY 82611 - COVER, FUSE BLOCK 82615 - BRACKET, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82666 - HOLDER, CONNECTOR  ** Std Part 83390 - SWITCH ASSY, VACUUM WARNING ** Refer Fig ** Refer Fig 85959D - HOLDER, RELAY 85959D - HOLDER, RELAY 88630G - RELAY ASSY, COOLER  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
