TOYOTA VENZA AGV10L-AWTGKA / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

REAR SEAT SEAT TRACK

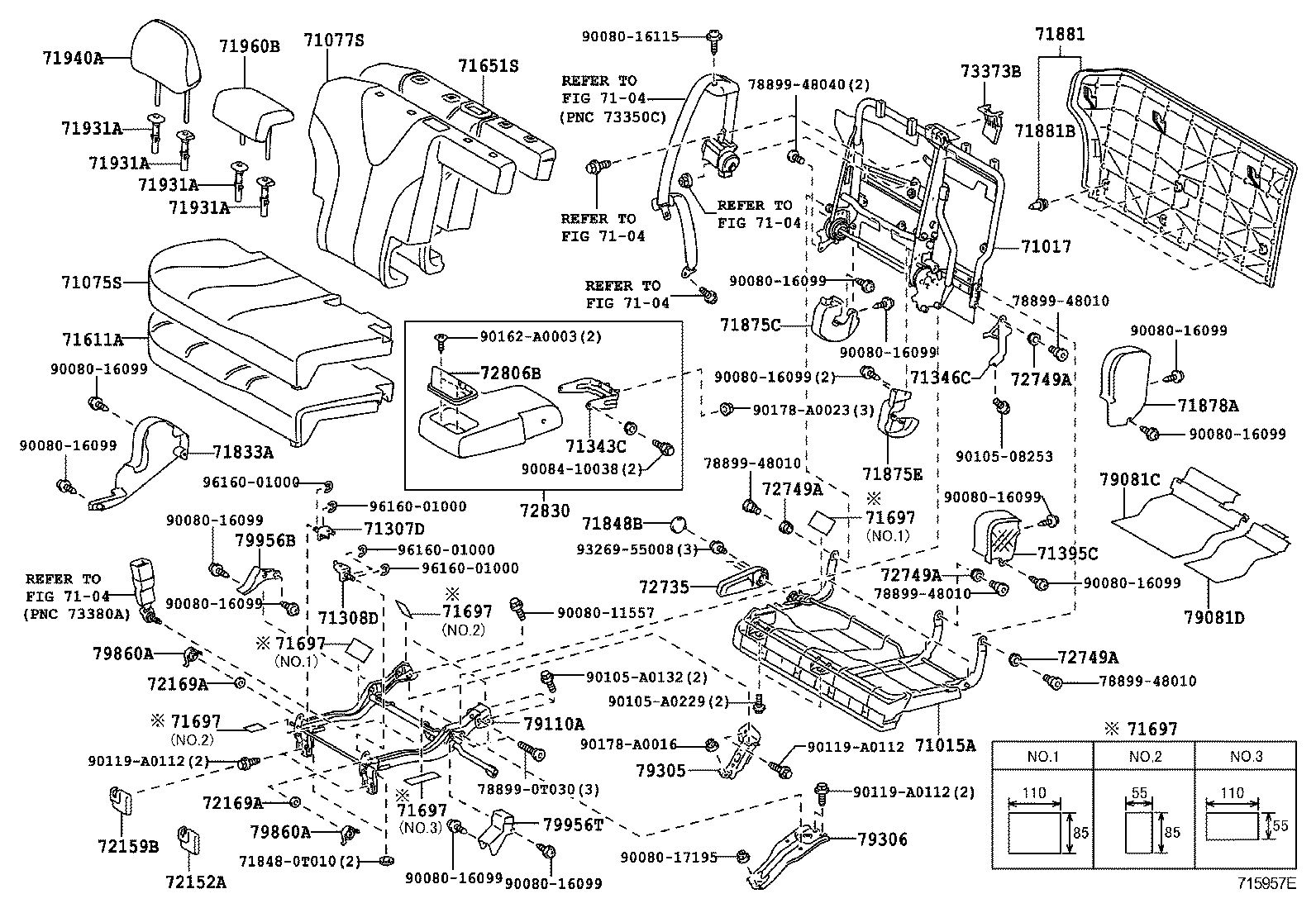

RH ILLUST NO. 1 OF 3(0811- )

VENZA | REAR SEAT SEAT TRACK 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71307D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH 71308D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH 71343C - HINGE, REAR SEAT BACK, CENTER 71346C - HINGE, REAR SEAT BACK, LH 71395C - COVER, CENTER SEAT HINGE, RH 71611A - PAD, REAR SEAT CUSHION, RH 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71697 - PROTECTOR, REAR SEAT BACK EDGE 71697 - PROTECTOR, REAR SEAT BACK EDGE 71697 - PROTECTOR, REAR SEAT BACK EDGE 71697 - PROTECTOR, REAR SEAT BACK EDGE 71697 - PROTECTOR, REAR SEAT BACK EDGE 71697 - PROTECTOR, REAR SEAT BACK EDGE 71833A - COVER, REAR SEAT RECLINING, NO.1 RH ** Std Part 71848B - CAP, SEAT ADJUSTER COVER, RH 71875C - COVER, RECLINING ADJUSTER INSIDE, RH 71875E - COVER, RECLINING ADJUSTER INSIDE, RH 71878A - COVER, REAR SEAT RECLINING, INNER RH 71881 - BOARD, REAR SEAT BACK, RH 71881B - CLIP, REAR SEAT BACK BOARD 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 71960B - HEADREST ASSY, REAR SEAT, CENTER 72152A - COVER, REAR SEAT TRACK BRACKET, INNER 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER 72169A - SPACER, RR SEAT TRACK 72169A - SPACER, RR SEAT TRACK 72735 - LEVER, REAR SEAT RECLINING RELEASE 72749A - SPACER, REAR SEAT RECLINING 72749A - SPACER, REAR SEAT RECLINING 72749A - SPACER, REAR SEAT RECLINING 72749A - SPACER, REAR SEAT RECLINING 72806B - HOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP 72830 - ARMREST ASSY, REAR SEAT, CENTER 73373B - COVER, REAR NO.1 SEAT SHOULDER BELT ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 79081C - COVER, REAR SEAT, NO.1 79081D - COVER, REAR SEAT, NO.2 79110A - LEG ASSY, NO.1 SEAT, RH 79305 - LEG SUB-ASSY, NO.3 SEAT 79306 - LEG SUB ASSY, NO.3 SEAT, LH 79860A - SPRING ASSY, FOLD SEAT CUSHION, RH 79860A - SPRING ASSY, FOLD SEAT CUSHION, RH 79956B - COVER, REAR SEAT LEG SIDE, RH 79956T - COVER, REAR SEAT LEG SIDE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
