TOYOTA VENZA AGV10L-AWTGKA / BODY / REAR SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

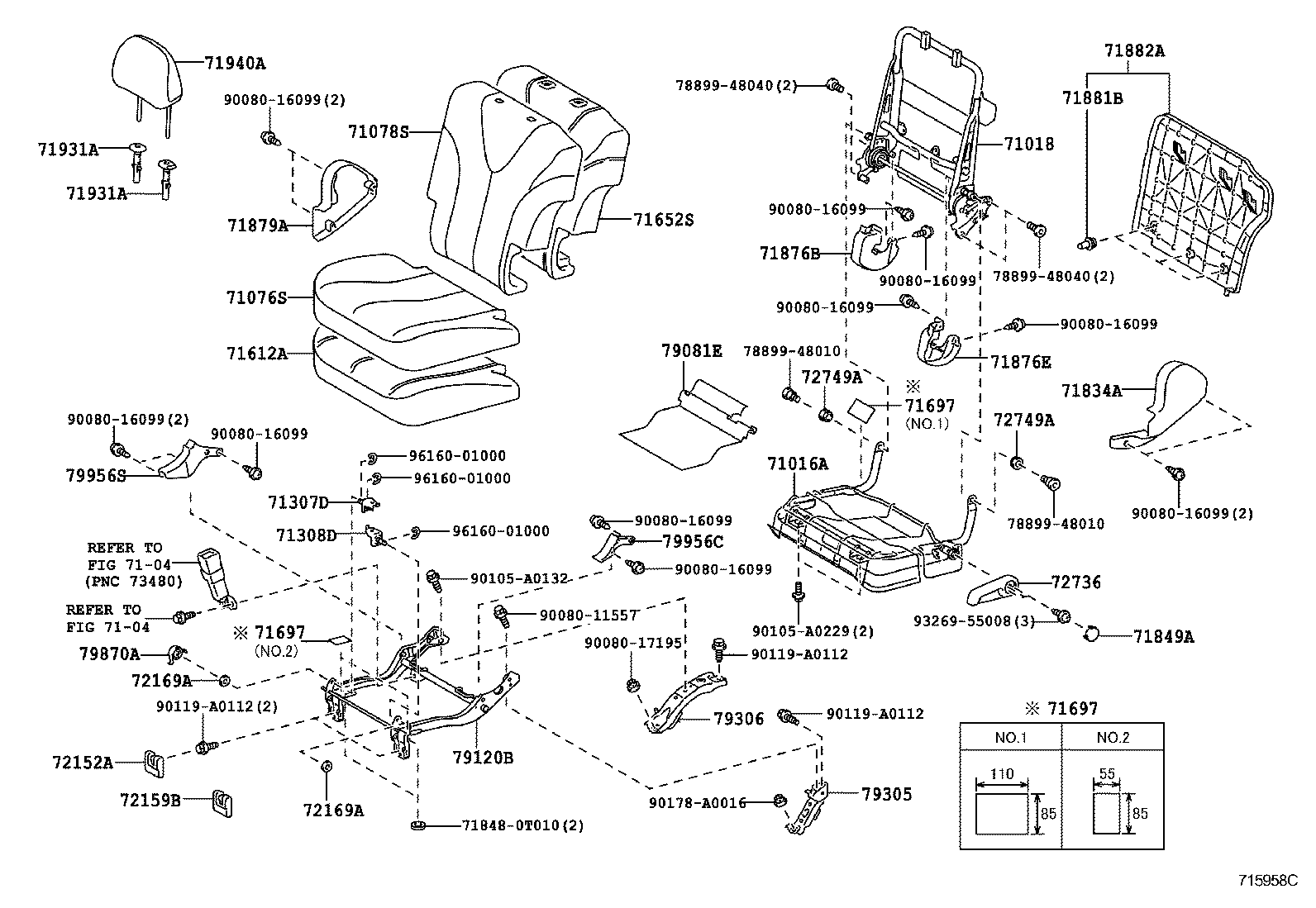

REAR SEAT SEAT TRACK

LH ILLUST NO. 2 OF 3(0811- )

VENZA | REAR SEAT SEAT TRACK 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH ** Refer Fig ** Refer Fig 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71307D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, RH 71308D - BRACKET SUB-ASSY, REAR SEAT CUSHION SUPPORT, LH 71612A - PAD, REAR SEAT CUSHION, LH 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) 71697 - PROTECTOR, REAR SEAT BACK EDGE 71697 - PROTECTOR, REAR SEAT BACK EDGE 71697 - PROTECTOR, REAR SEAT BACK EDGE 71834A - COVER, REAR SEAT RECLINING, NO.1 LH ** Std Part 71849A - CAP, SEAT ADJUSTER COVER, LH 71876B - COVER, RECLINING ADJUSTER INSIDE, LH 71876E - COVER, RECLINING ADJUSTER INSIDE, LH 71879A - COVER, REAR SEAT RECLINING, INNER LH 71881B - CLIP, REAR SEAT BACK BOARD 71882A - BOARD, REAR SEAT BACK, LH 71931A - SUPPORT, REAR SEAT HEADREST 71931A - SUPPORT, REAR SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72152A - COVER, REAR SEAT TRACK BRACKET, INNER 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER 72169A - SPACER, RR SEAT TRACK 72169A - SPACER, RR SEAT TRACK 72736 - LEVER, REAR SEAT RECLINING RELEASE, LH 72749A - SPACER, REAR SEAT RECLINING 72749A - SPACER, REAR SEAT RECLINING ** Std Part ** Std Part ** Std Part ** Std Part 79081E - COVER, REAR SEAT, NO.3 79120B - LEG ASSY, NO.1 SEAT, LH 79305 - LEG SUB-ASSY, NO.3 SEAT 79306 - LEG SUB ASSY, NO.3 SEAT, LH 79870A - SPRING ASSY, FOLD SEAT CUSHION, LH 79956C - COVER, REAR SEAT LEG SIDE, LH 79956S - COVER, REAR SEAT LEG SIDE ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
