TOYOTA YARIS FRP NLP90L-CGLGXW / TOOL-ENGINE-FUEL / VACUUM PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

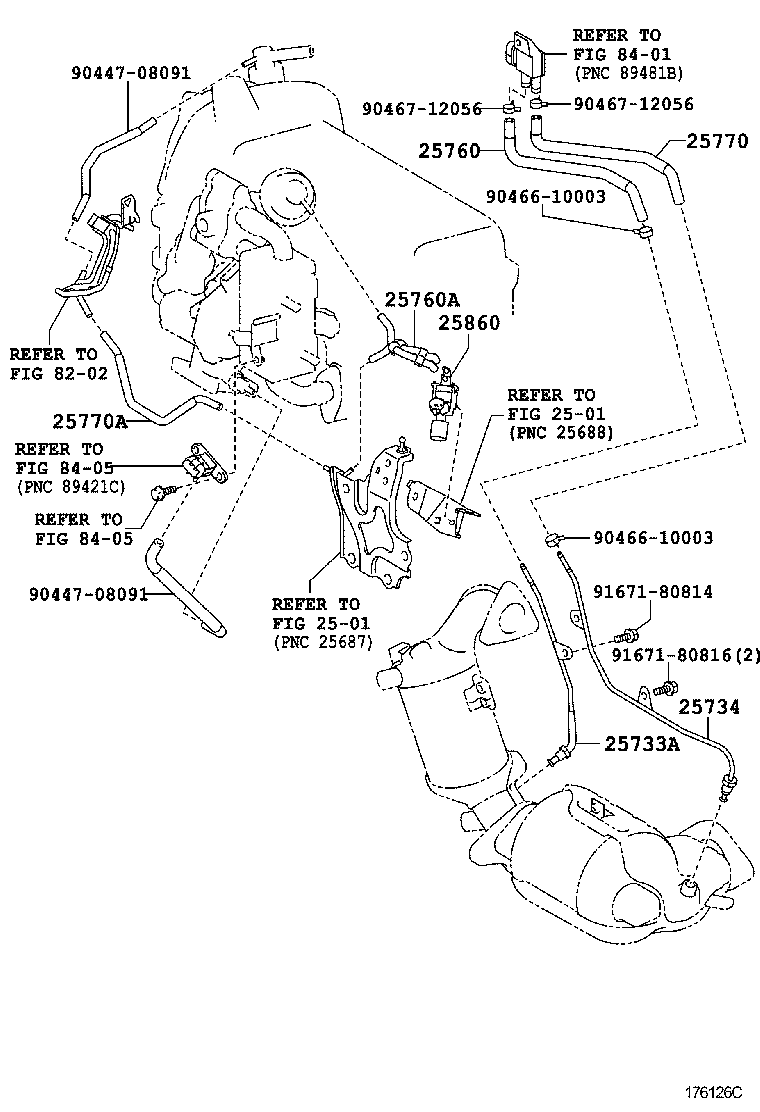

VACUUM PIPING

W(DPF) (0811-1007)1NDTV..FRP..LHD

YARIS FRP | VACUUM PIPING ** Refer Fig ** Refer Fig 25733A - PIPE, VACUUM, NO.1 25734 - PIPE, VACUUM, NO.2 25760 - HOSE ASSY, VACUUM TRANSMITTING 25760A - HOSE ASSY, VACUUM TRANSMITTING 25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2 25770A - HOSE ASSY, VACUUM TRANSMITTING, NO.2 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
