TOYOTA 4RUNNER GRN280L-GKAGKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

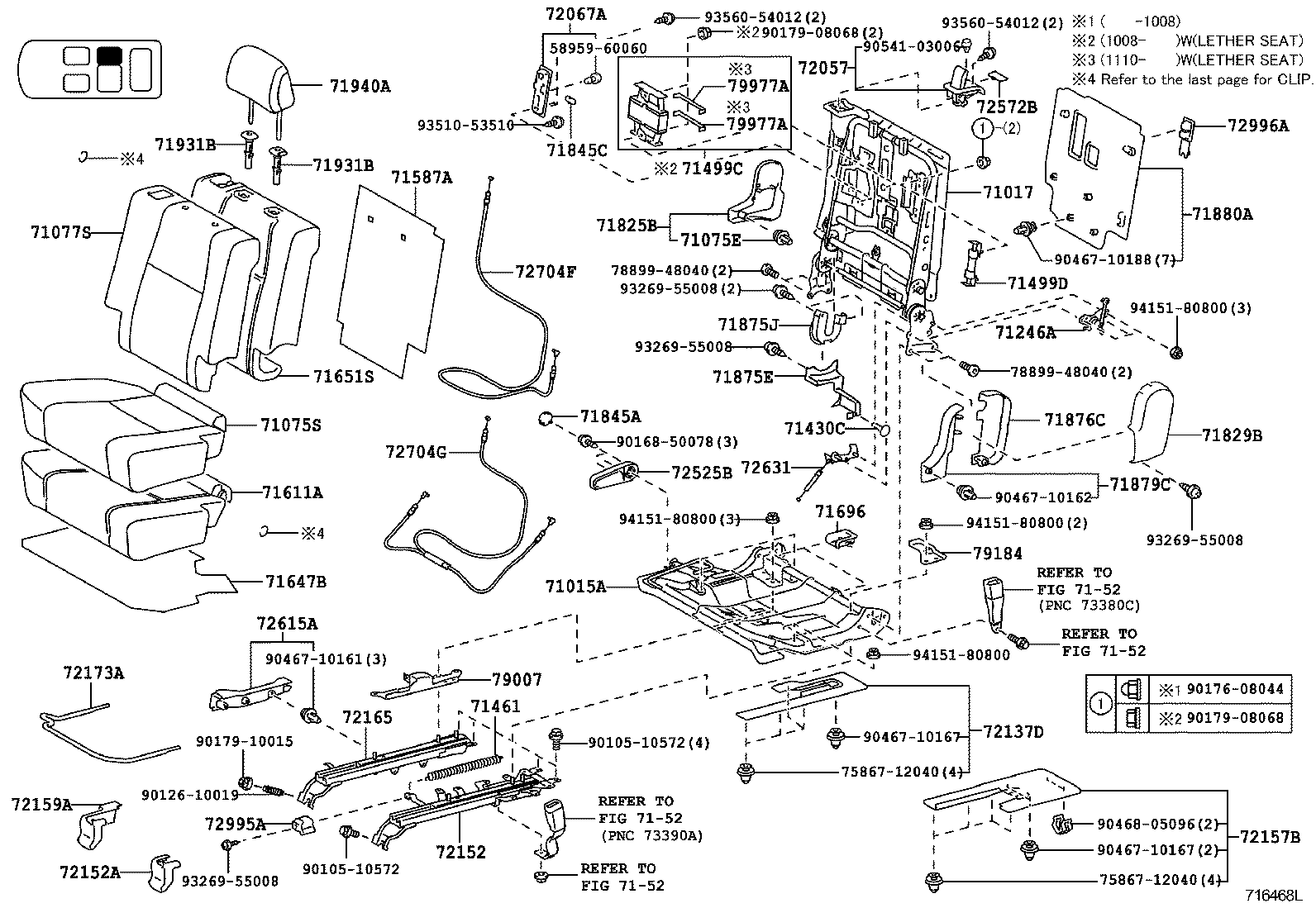

SEAT SEAT TRACK

REAR NO.1 (RH) W(REAR NO.2 SEAT) ILLUST NO. 3 OF 4(0908- )

 4RUNNER |  SEAT SEAT TRACK  ** Std Part 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH 71075E - CLIP(FOR REAR SEAT) 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) 71246A - PLATE, REAR SEAT CUSHION SET 71430C - CLIP 71461 - SPRING, REAR SEAT CUSHION 71499C - DAMPER, REAR SEAT CUSHION SPRING 71499D - DAMPER, REAR SEAT BACK SPRING ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71587A - PROTECTOR, REAR SEAT BACK EDGE 71611A - PAD, REAR SEAT CUSHION, RH 71647B - PROTECTOR, REAR SEAT CUSHION EDGE 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) 71696 - PROTECTOR, REAR SEAT, NO.2 71825B - MOULDING, REAR SEAT CUSHION, RH 71829B - MOULDING, REAR SEAT CUSHION, REAR LH 71845A - COVER, REAR SEAT RECLINING, UPPER RH 71845C - CAP, REAR SEAT COVER 71875E - COVER, RECLINING ADJUSTER INSIDE, RH 71875J - COVER, RECLINING ADJUSTER INSIDE, RH 71876C - COVER, RECLINING ADJUSTER INSIDE, LH 71879C - COVER, REAR SEAT RECLINING, INNER LH 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST 71940A - HEADREST ASSY, REAR SEAT 72057 - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH 72067A - LEVER, REAR BACK LOCK CONTROL, CENTER 72137D - COVER, REAR SEAT TRACK, RH 72152 - RAIL, SEAT TRACK, LOWER LH 72152A - COVER, REAR SEAT TRACK BRACKET, INNER 72157B - COVER, REAR SEAT TRACK BRACKET, INNER RH 72159A - COVER, REAR SEAT TRACK BRACKET 72165 - RAIL, REAR OUTER SEAT TRACK, LOWER RH 72173A - HANDLE, REAR SEAT TRACK ADJUSTING, RH 72173A - HANDLE, REAR SEAT TRACK ADJUSTING, RH 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH 72572B - CAP, RECLINING ADJUSTER KNOB, RH 72615A - COVER, REAR SEAT BACK LOCK STRIKER, RH 72631 - PLATE, REAR SEAT BACK LOCK, RH 72704F - CABLE, REAR SEAT RECLINING CONTROL, NO.3 72704G - CABLE, REAR SEAT RECLINING CONTROL, NO.4 72995A - COVER, REAR SEAT 72996A - COVER, REAR SEAT BACK  ** Std Part  ** Std Part  ** Std Part  ** Std Part 79007 - FRAME, SEAT CUSHION SIDE, RH OUTER NO.1 79184 - PLATE, NO.1 SEAT LEG 79977A - FELT, SEAT BACK 79977A - FELT, SEAT BACK  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
