TOYOTA 4RUNNER GRN280L-GKAGKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

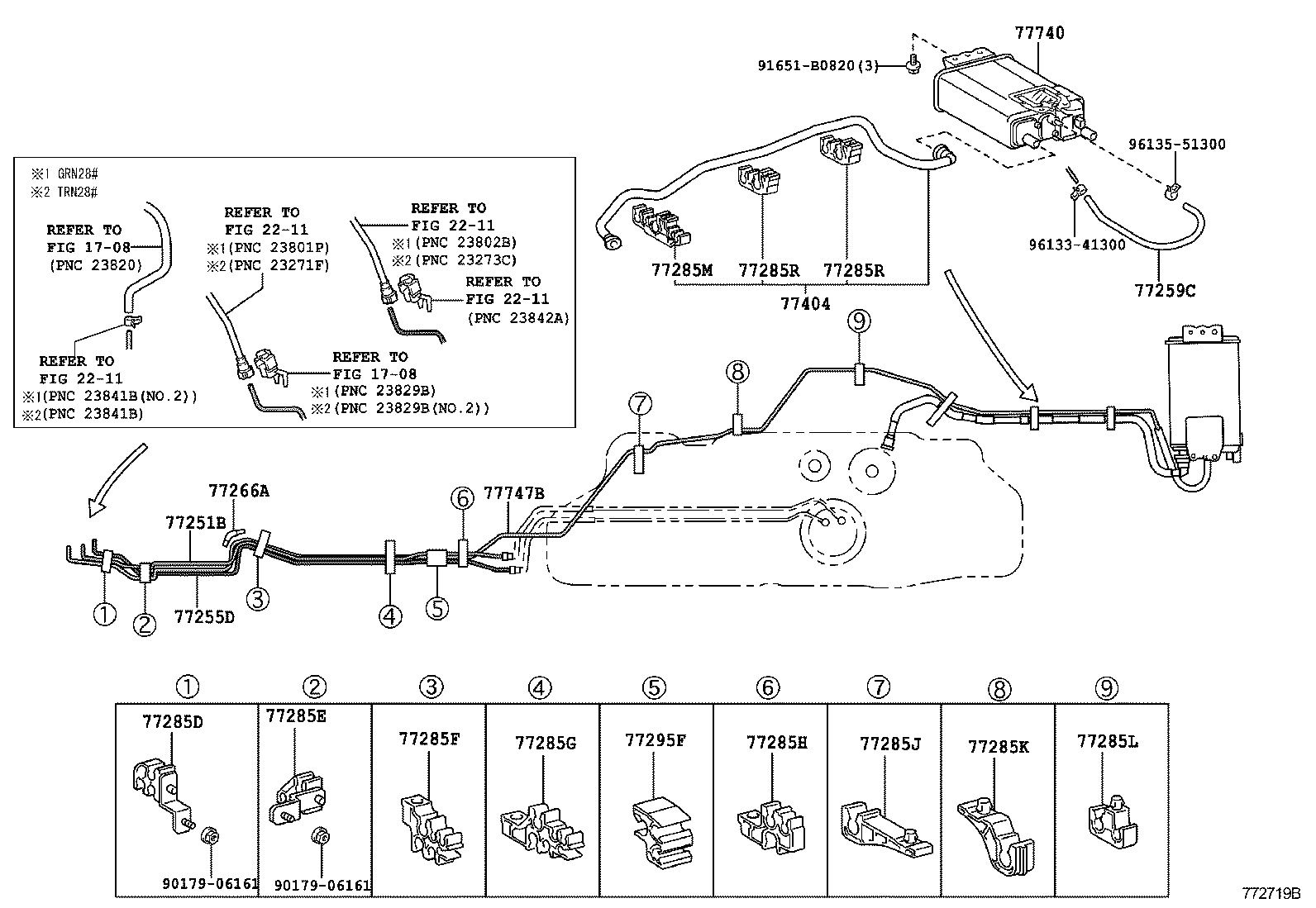

FUEL TUBE ILLUST NO. 2 OF 2(0908- )

4RUNNER | FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77251B - TUBE, FUEL MAIN 77255D - TUBE, FUEL RETURN 77259C - HOSE, FUEL 77266A - PROTECTOR, FUEL TUBE, NO.1 77285D - CLAMP, FUEL TUBE, NO.1 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 77285F - CLAMP, FUEL TUBE, NO.1 77285G - CLAMP, FUEL TUBE, NO.1 77285H - CLAMP, FUEL TUBE, NO.1 77285J - CLAMP, FUEL TUBE, NO.1 77285K - CLAMP, FUEL TUBE, NO.1 77285L - CLAMP, FUEL TUBE, NO.1 77285M - CLAMP, FUEL TUBE, NO.1 77285R - CLAMP, FUEL TUBE, NO.1 77285R - CLAMP, FUEL TUBE, NO.1 77295F - GROMMET, FUEL HOSE 77404 - HOSE SUB-ASSY, FUEL TANK VENT 77740 - CANISTER ASSY, CHARCOAL 77747B - TUBE, CHARCOAL CANISTER, NO.1 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
