TOYOTA MATRIX AZE144L-DHPNKA / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

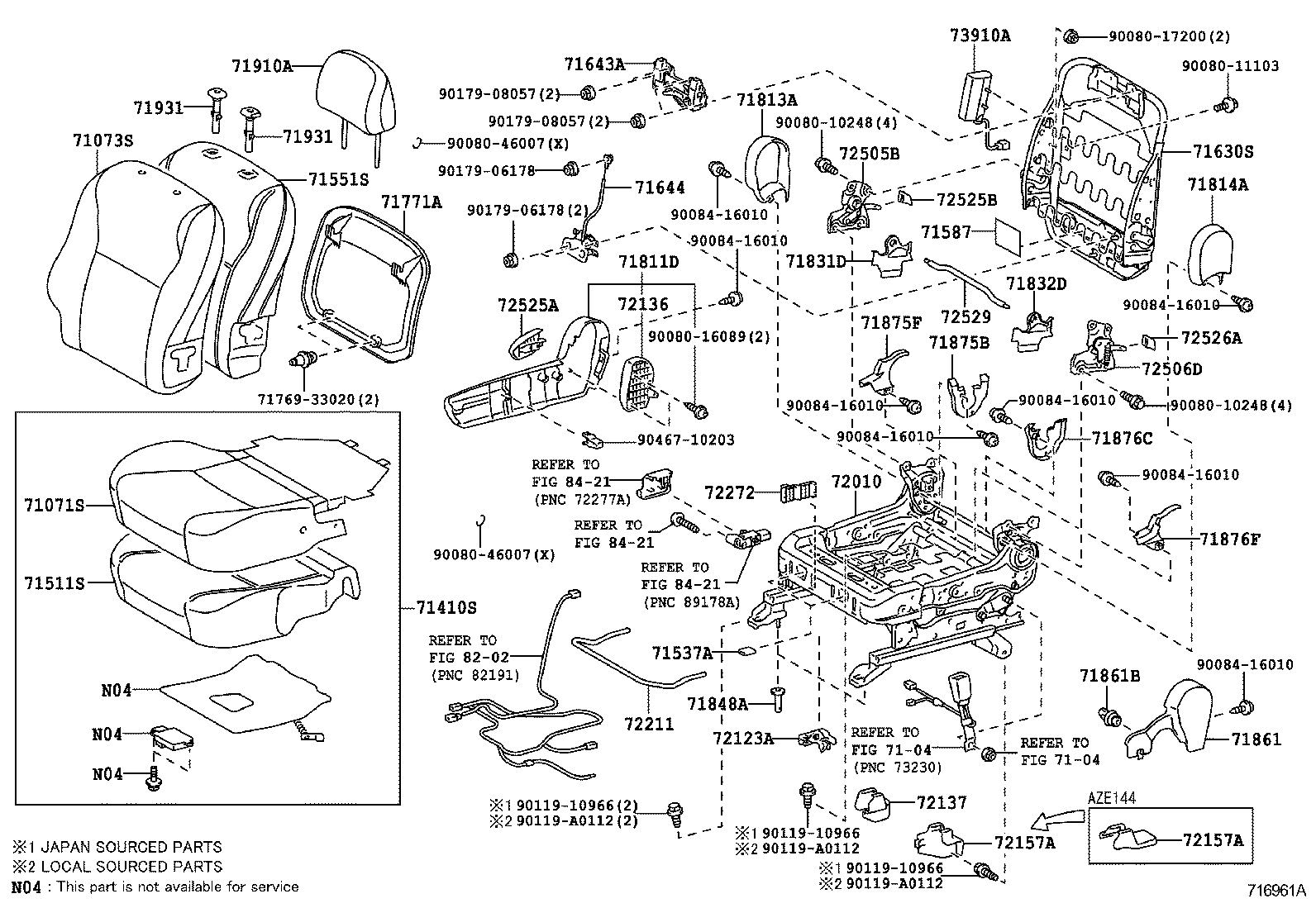

FRONT SEAT SEAT TRACK

PASSENGER SEAT(FLAT FOLDING TYPE) (1012- )

MATRIX | FRONT SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71537A - PROTECTOR, FRONT SEAT CUSHION 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71587 - PROTECTOR, FRONT SEAT BACK EDGE 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71643A - UNIT, ACTIVE HEADREST, UPR 71644 - UNIT, ACTIVE HEADREST, LWR ** Std Part 71771A - BOARD, FRONT SEAT BACK 71811D - SHIELD, FRONT SEAT CUSHION, RH 71813A - SHIELD, FRONT SEAT BACK, RH 71814A - SHIELD, FRONT SEAT BACK, LH 71831D - COVER, FRONT SEAT HINGE, RH 71832D - COVER, FRONT SEAT HINGE, LH 71848A - CAP, SEAT ADJUSTER COVER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) 71875B - COVER, RECLINING ADJUSTER INSIDE, RH 71875F - COVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT) 71876C - COVER, RECLINING ADJUSTER INSIDE, LH 71876F - COVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT) 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72010 - ADJUSTER ASSY, FRONT SEAT, RH 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72136 - SPACER, SEAT TRACK, LOWER NO.1 72137 - COVER, SEAT TRACK OUTER, RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72157A - COVER, SEAT TRACK BRACKET, INNER RH 72211 - HANDLE, SEAT TRACK ADJUSTING 72272 - CLAMP, SEAT TRACK CONTROL CABLE 72505B - LOCK SUB-ASSY, FRONT SEAT BACK, RH 72506D - LOCK SUB-ASSY, FRONT SEAT BACK, LH 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH 72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH 72529 - ROD, FRONT SEAT BACK LOCK HANDLE 73910A - AIR BAG ASSY, FRONT SEAT, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
