TOYOTA CAMRY ASV50L-SETGKA / BODY / SIDE MEMBER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

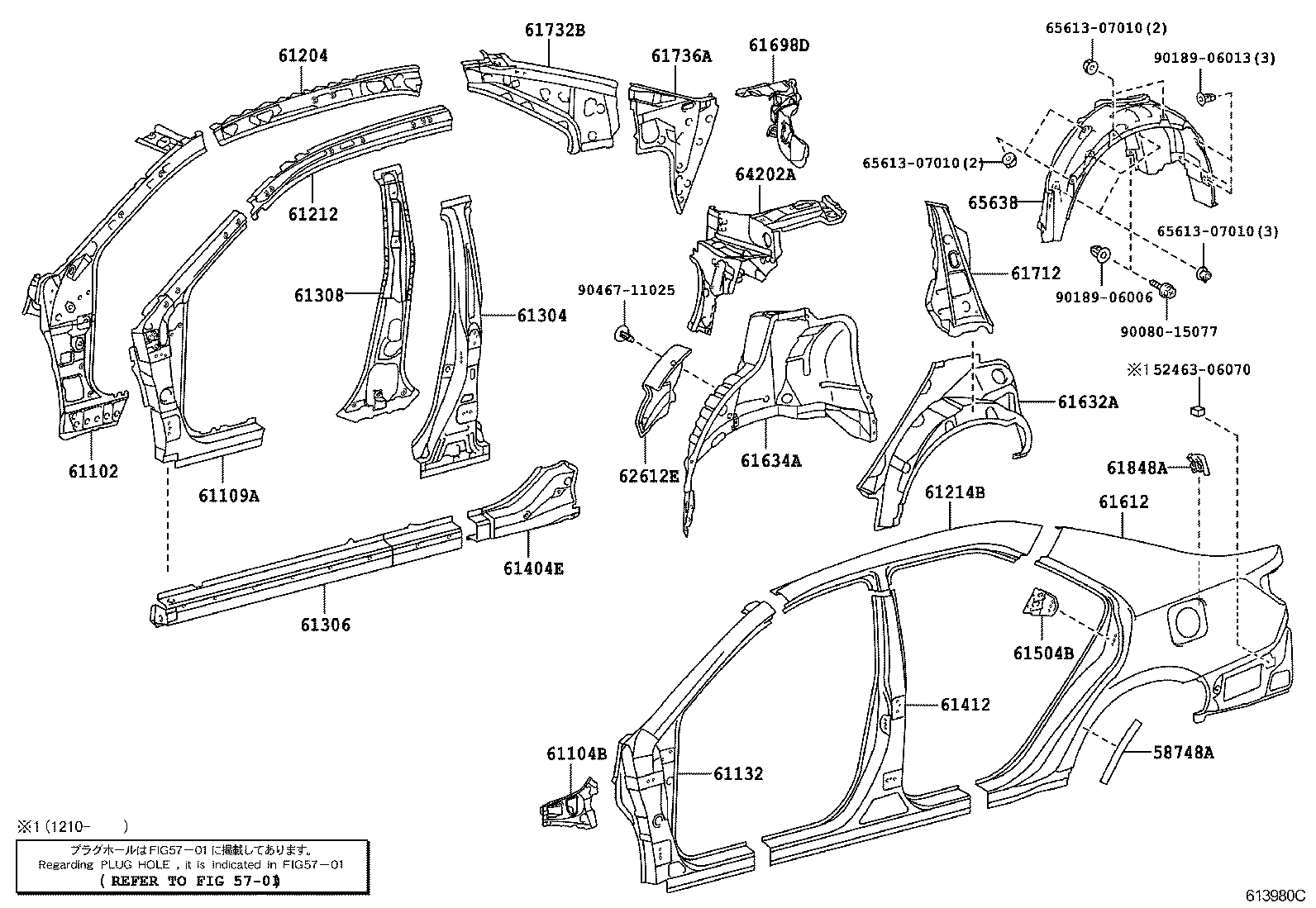

SIDE MEMBER

LH ILLUST NO. 2 OF 2(1109- )

CAMRY | SIDE MEMBER ** Std Part ** Refer Fig 58748A - PROTECTOR, QUARTER PANEL, REAR LH 61102 - PANEL SUB-ASSY, COWL SIDE, LH 61104B - REINFORCEMENT SUB-ASSY, COWL SIDE, LH 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH 61132 - PILLAR, FRONT BODY, UPPER OUTER LH 61204 - RAIL SUB-ASSY, ROOF SIDE, INNER LH 61212 - RAIL, ROOF SIDE, OUTER LH 61214B - RAIL, ROOF SIDE, OUTER NO.2 LH 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH 61306 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER LH 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH 61404E - REINFORCE SUB-ASSY, ROCKER, OUTER LH 61412 - PANEL, ROCKER, OUTER LH 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH 61612 - PANEL, QUARTER, LH 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH 61698D - HOUSING, QUARTER PANEL END, LH 61712 - PANEL, ROOF SIDE, OUTER LH 61732B - PANEL, ROOF SIDE, INNER LH 61736A - PANEL, ROOF SIDE, INNER REAR LH 61848A - RETAINER, QUARTER PANEL, LH 62612E - INSULATOR, QUARTER WHEEL HOUSE, LH 64202A - STRAINER SUB-ASSY, PACKAGE TRAY TO FLOOR, LH ** Std Part ** Std Part ** Std Part 65638 - LINER, REAR WHEEL HOUSE, LH ** Std Part ** Std Part ** Std Part ** Std Part
