TOYOTA HILUX LAN15L-PRMDEN / POWERTRAIN-CHASSIS / CLUTCH PEDAL FLEXIBLE HOSE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

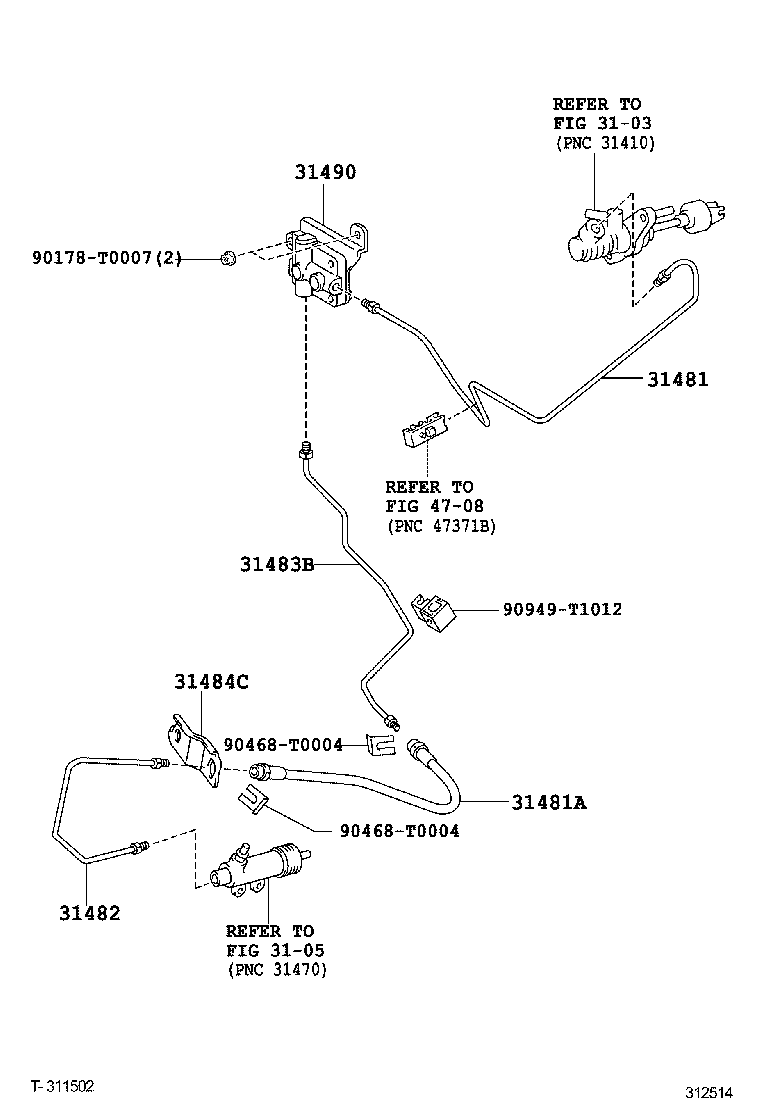

CLUTCH PEDAL FLEXIBLE HOSE

ILLUST NO. 2 OF 2(1108- )LAN15,25..LHD

HILUX | CLUTCH PEDAL FLEXIBLE HOSE ** Refer Fig ** Refer Fig 31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE 31481A - HOSE, CLUTCH, NO.1 31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE 31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE 31484C - BRACKET, CLUTCH TUBE, NO.1 31490 - ACCUMULATOR ASSY, CLUTCH ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part
