TOYOTA HILUX TGN16R-TRMDMT / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

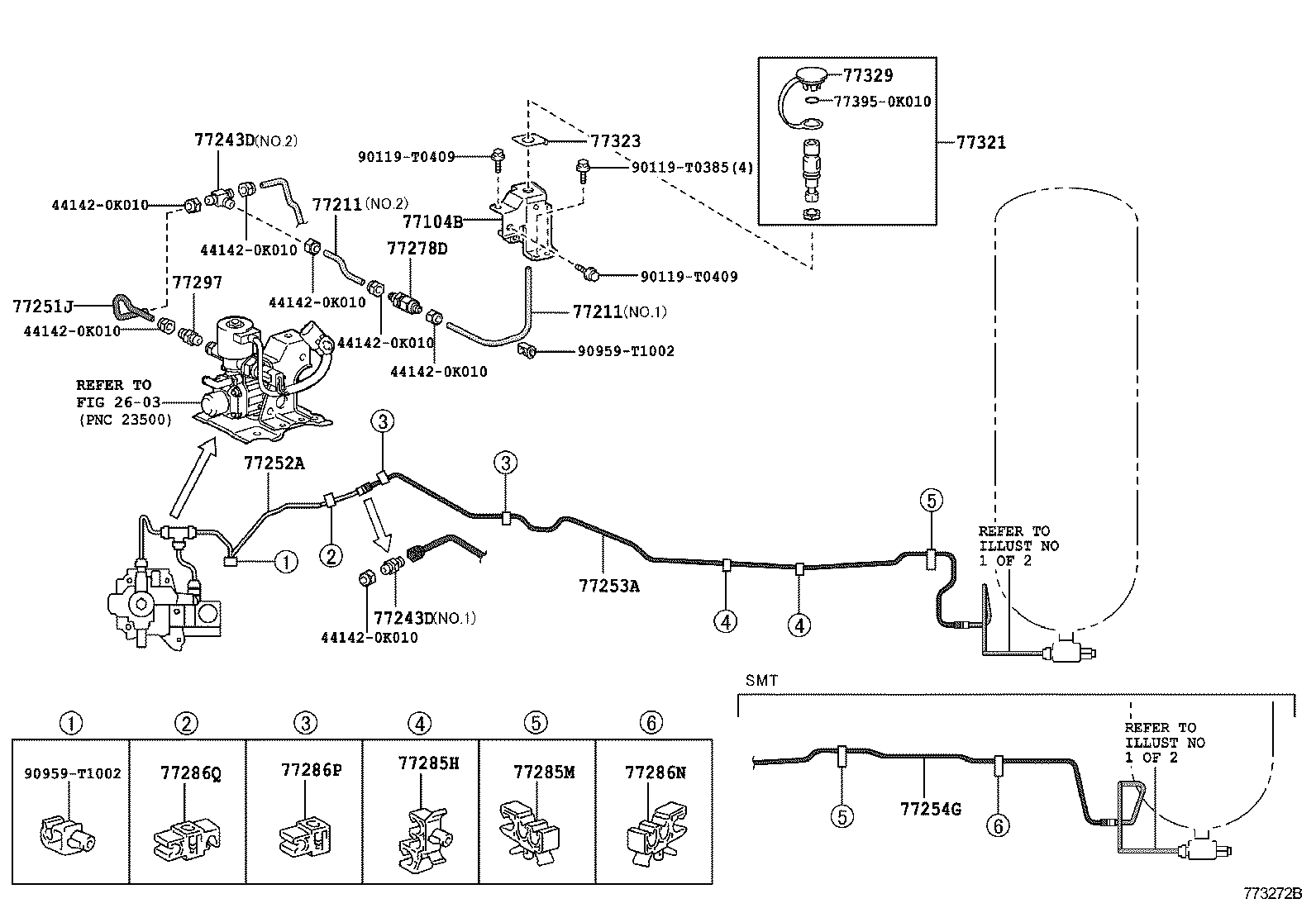

FUEL TANK TUBE

FUEL TUBE(CNG) ILLUST NO. 2 OF 2(1205- )CNG

HILUX | FUEL TANK TUBE ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 77104B - SUPPORT SUB-ASSY, FUEL TANK FILLER 77211 - PIPE, FUEL TANK INLET 77211 - PIPE, FUEL TANK INLET 77243D - JOINT, FUEL TUBE, NO.1 77243D - JOINT, FUEL TUBE, NO.1 77251J - TUBE, FUEL MAIN, NO.1 77252A - TUBE, FUEL MAIN, NO.2 77253A - TUBE, FUEL MAIN, NO.3 77254G - TUBE, FUEL MAIN, NO.4 77278D - VALVE, CHECK W/BRACKET 77285H - CLAMP, FUEL TUBE, NO.1 77285M - CLAMP, FUEL TUBE, NO.1 77286N - CLAMP, FUEL TUBE, NO.7 77286P - CLAMP, FUEL TUBE, NO.8 77286Q - CLAMP, FUEL TUBE, NO.9 77297 - CONNECTOR, FUEL TUBE 77321 - COUPLER, FUEL INLET 77323 - WASHER, FUEL INLET COUPLER, NO.2 77329 - COVER, FUEL TANK CAP ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
