TOYOTA HILUX TGN26L-TRMDKV / ELECTRICAL / HEATING AIR CONDITIONING COOLER PIPING

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

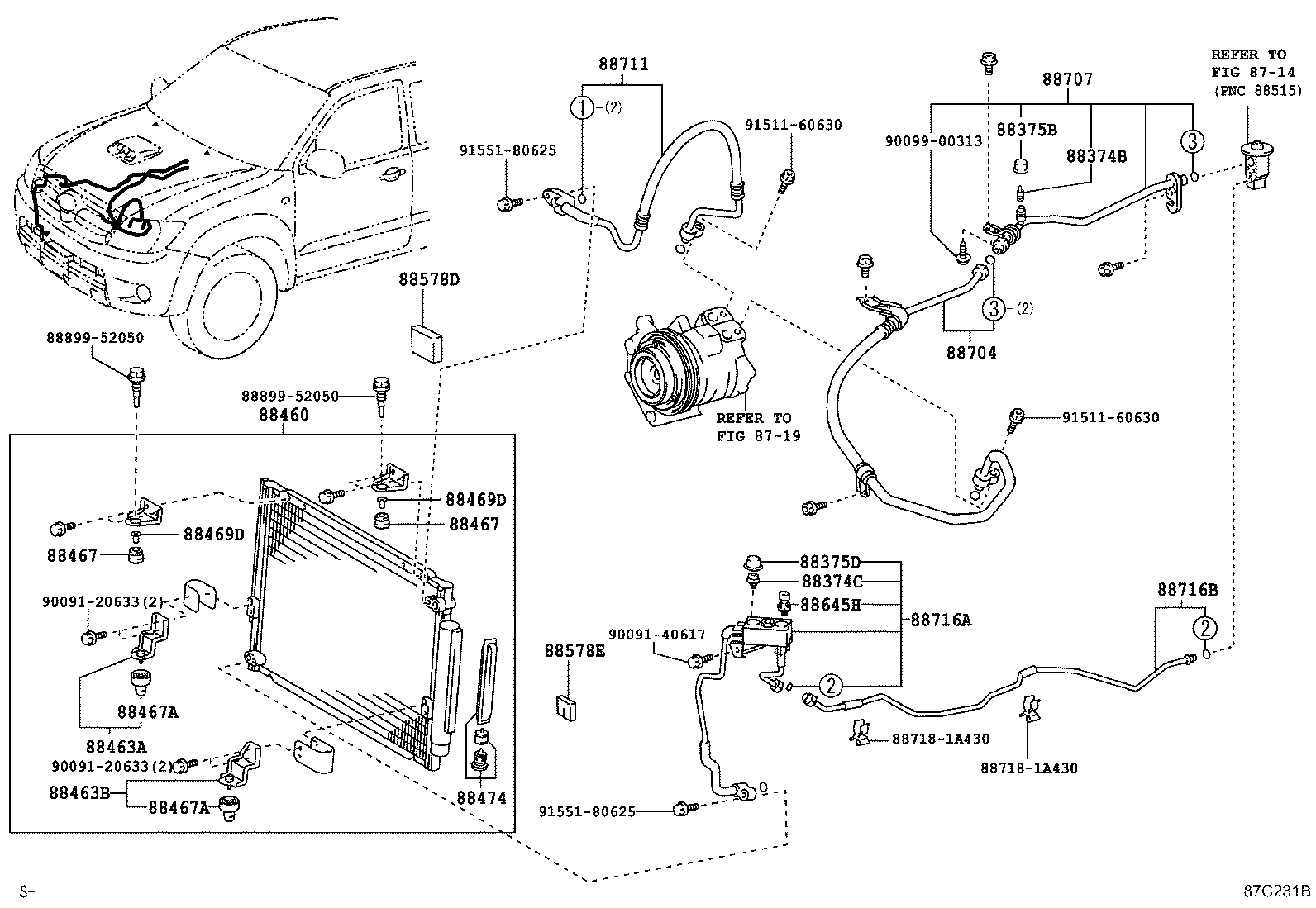

HEATING AIR CONDITIONING COOLER PIPING

..THDCB..DLX ; (1110- )DCB..DLX..HTWC..LA

HILUX | HEATING AIR CONDITIONING COOLER PIPING ** Refer Fig ** Refer Fig 88374B - VALVE, SERVICE, NO.1 88374C - VALVE, SERVICE, NO.2 88375B - CAP, SERVICE VALVE, NO.1 88375D - CAP, SERVICE VALVE, NO.2 88460 - CONDENSER ASSY, COOLER 88463A - BRACKET, COOLER CONDENSER, NO.2 88463B - BRACKET, COOLER CONDENSER, NO.3 88467 - CUSHION, COOLER CONDENSER, NO.1 88467 - CUSHION, COOLER CONDENSER, NO.1 88467A - CUSHION, COOLER CONDENSER, NO.2 88467A - CUSHION, COOLER CONDENSER, NO.2 88469D - COLLAR, CONDENSER BRACKET, NO.1 88469D - COLLAR, CONDENSER BRACKET, NO.1 88474 - DRYER, COOLER 88578D - PACKING, COOLER PIPE, NO.1 88578E - PACKING, COOLER PIPE, NO.2 88645H - SWITCH, PRESSURE NO.1 88704 - HOSE SUB-ASSY, SUCTION 88707 - PIPE SUB-ASSY, SUCTION 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 88716A - PIPE, COOLER REFRIGERANT LIQUID, A 88716B - PIPE, COOLER REFRIGERANT LIQUID, B ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
