TOYOTA LAND CRUISER 70 HZJ79L-DKMRS / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

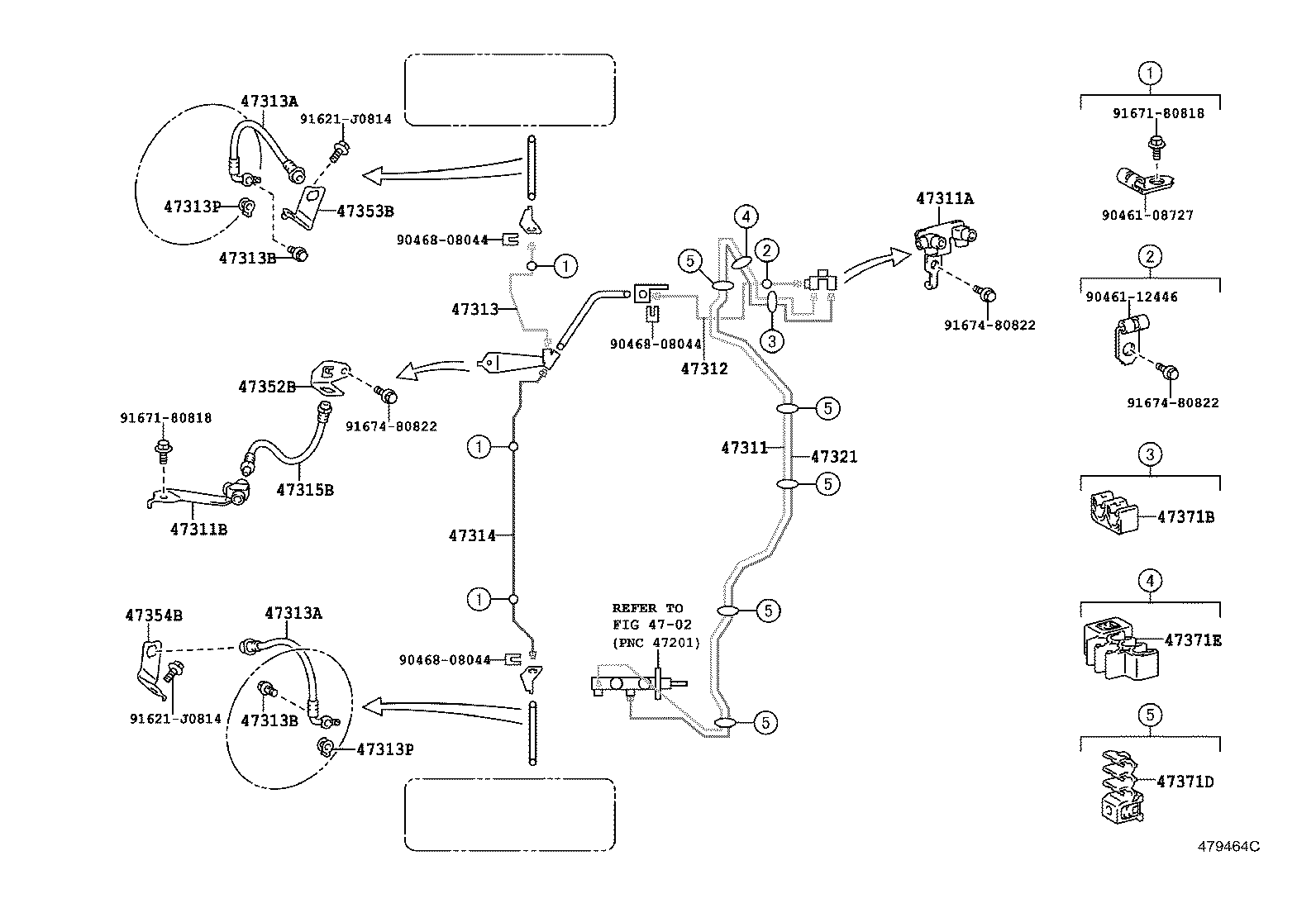

BRAKE TUBE CLAMP

W/O(ABS) ILLUST NO. 3 OF 6(1208- )HZJ7#..LHD

 LAND CRUISER 70 |  BRAKE TUBE CLAMP ** Refer Fig 47311 - TUBE, FRONT BRAKE, NO.1 47311A - WAY(FOR FRONT BRAKE TUBE) 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) 47312 - TUBE, FRONT BRAKE, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47321 - TUBE, REAR BRAKE, NO.1 47352B - BRACKET, FLEXIBLE HOSE, NO.2 47353B - BRACKET, FLEXIBLE HOSE, NO.3 47354B - BRACKET, FLEXIBLE HOSE, NO.4 47371B - CLAMP, BRAKE TUBE, NO.6 47371D - CLAMP, BRAKE TUBE, NO.8 47371E - CLAMP, BRAKE TUBE, NO.9  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
