TOYOTA LAND CRUISER 70 HZJ79L-DKMRS / POWERTRAIN-CHASSIS / BRAKE TUBE CLAMP

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

BRAKE TUBE CLAMP

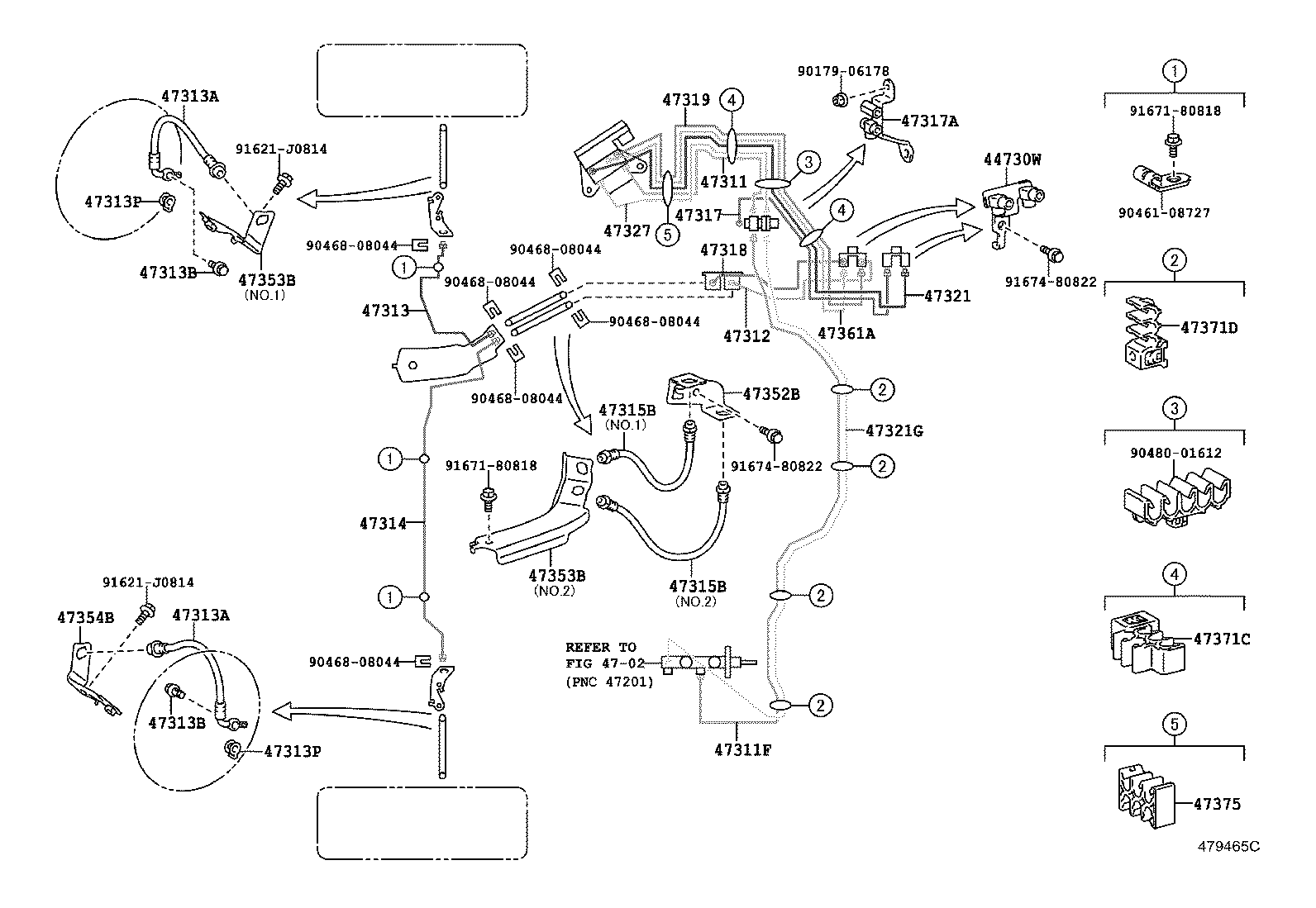

W(ABS) ILLUST NO. 3 OF 6(1208-1403)HZJ7#..LHD

LAND CRUISER 70 | BRAKE TUBE CLAMP 44730W - WAY, 2(FOR FRONT BRAKE TUBE) ** Refer Fig 47311 - TUBE, FRONT BRAKE, NO.1 47311F - TUBE, FRONT BRAKE, FRAME NO.1 47312 - TUBE, FRONT BRAKE, NO.2 47313 - TUBE, FRONT BRAKE, NO.3 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) 47314 - TUBE, FRONT BRAKE, NO.4 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47315B - HOSE, FLEXIBLE(FOR BRAKE TUBE) 47317 - TUBE, FRONT BRAKE, NO.7 47317A - WAY(FOR BRAKE TUBE) 47318 - TUBE, FRONT BRAKE, NO.8 47319 - TUBE, FRONT BRAKE, NO.9 47321 - TUBE, REAR BRAKE, NO.1 47321G - TUBE, REAR BRAKE, FRAME NO.1 47327 - TUBE, REAR BRAKE, NO.7 47352B - BRACKET, FLEXIBLE HOSE, NO.2 47353B - BRACKET, FLEXIBLE HOSE, NO.3 47353B - BRACKET, FLEXIBLE HOSE, NO.3 47354B - BRACKET, FLEXIBLE HOSE, NO.4 47361A - TUBE, FRONT BRAKE, NO.10 47371C - CLAMP, BRAKE TUBE, NO.7 47371D - CLAMP, BRAKE TUBE, NO.8 47375 - CLAMP, BRAKE TUBE, NO.5 ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
