TOYOTA SIENNA GSL30L-PFTQKA / BODY / SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

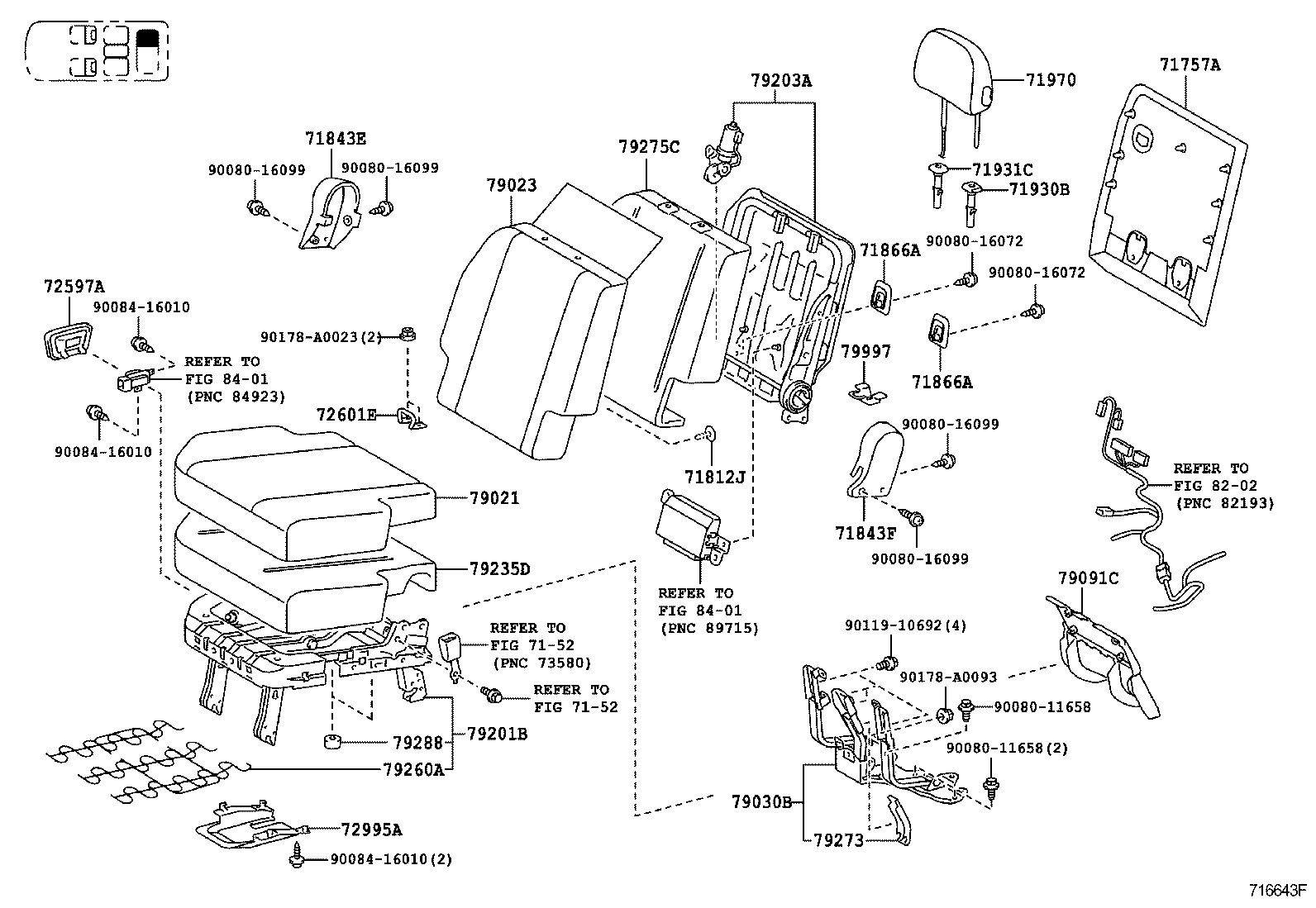

SEAT SEAT TRACK

REAR NO.2 SEAT(RH) W(POWER SEAT) (1001- )GSL30..07S..XLE

 SIENNA |  SEAT SEAT TRACK ** Refer Fig ** Refer Fig 71757A - COVER, REAR SEAT BACK BOARD, RH 71812J - CLIP, REAR SEAT COVER 71843E - COVER, REAR SEAT RECLINING, RH (FOR RH SEAT) 71843F - COVER, REAR SEAT RECLINING, LH (FOR RH SEAT) 71866A - BEZEL, REAR SEAT COVER, NO.2 71866A - BEZEL, REAR SEAT COVER, NO.2 71930B - SUPPORT ASSY, REAR SEAT HEADREST 71931C - SUPPORT ASSY, REAR NO.2 SEAT HEADREST 71970 - HEADREST ASSY, REAR SEAT 72597A - BEZEL, RECLINING REMOTE CONTROL LEVER, RH 72601E - STRIKER SUB-ASSY, REAR SEAT LOCK, NO.2 72995A - COVER, REAR SEAT 79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH 79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH 79030B - LEG ASSY, REAR NO.2 SEAT, RH 79091C - GARNISH SUB-ASSY, REAR SEAT LEG SIDE, RH 79201B - FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH 79203A - FRAME SUB-ASSY, NO.2 SEAT BACK, RH 79235D - PAD, NO.2 SEAT CUSHION, RH 79260A - SPRING ASSY, NO.2 SEAT CUSHION, RH 79273 - COVER, NO.2 SEAT HINGE 79275C - PAD, NO.2 SEAT BACK, RH 79288 - STOPPER, NO.2 SEAT CUSHION 79997 - PROTECTOR, SEAT LEG BOX, NO.1 ** Refer Fig ** Refer Fig ** Refer Fig  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
