TOYOTA AVALON AVX40L-AEXGBA / TOOL-ENGINE-FUEL / AIR CLEANER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

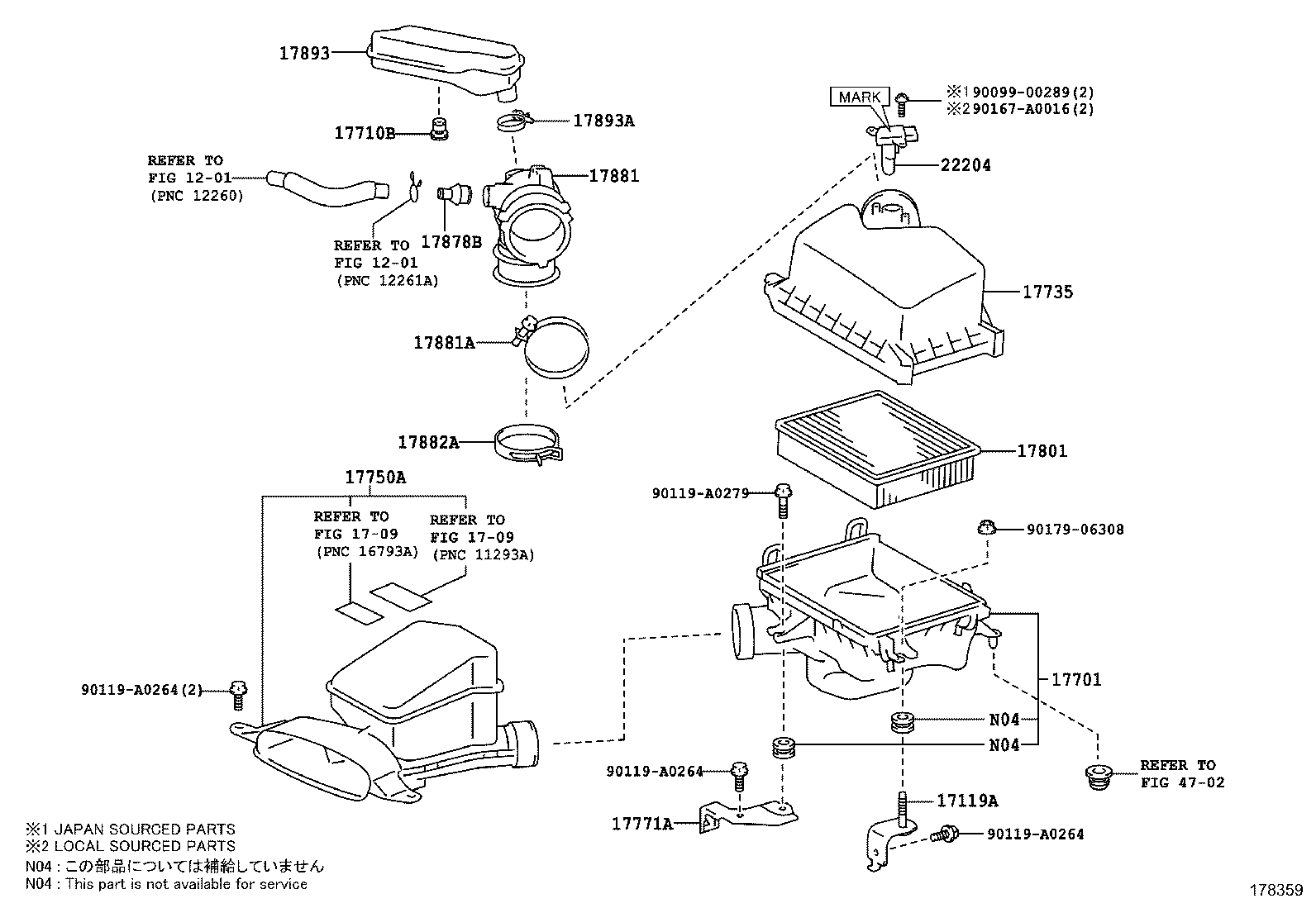

AIR CLEANER

(1403- )2ARFXE

AVALON | AIR CLEANER ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 17119A - BRACKET, AIR CLEANER 17701 - CASE SUB-ASSY, AIR CLEANER 17710B - GROMMET 17735 - CAP, AIR CLEANER 17750A - INLET ASSY, AIR CLEANER 17771A - BRACKET, AIR CLEANER 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER 17878B - TUBE, VENTILATION 17881 - HOSE, AIR CLEANER, NO.1 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) 17893 - RESONATOR, INTAKE AIR 17893A - CLAMP, HOSE 22204 - METER SUB-ASSY, INTAKE AIR FLOW ** Refer Fig ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
