TOYOTA AVALON GSX40L-AETQKA / BODY / FRONT SEAT SEAT TRACK

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

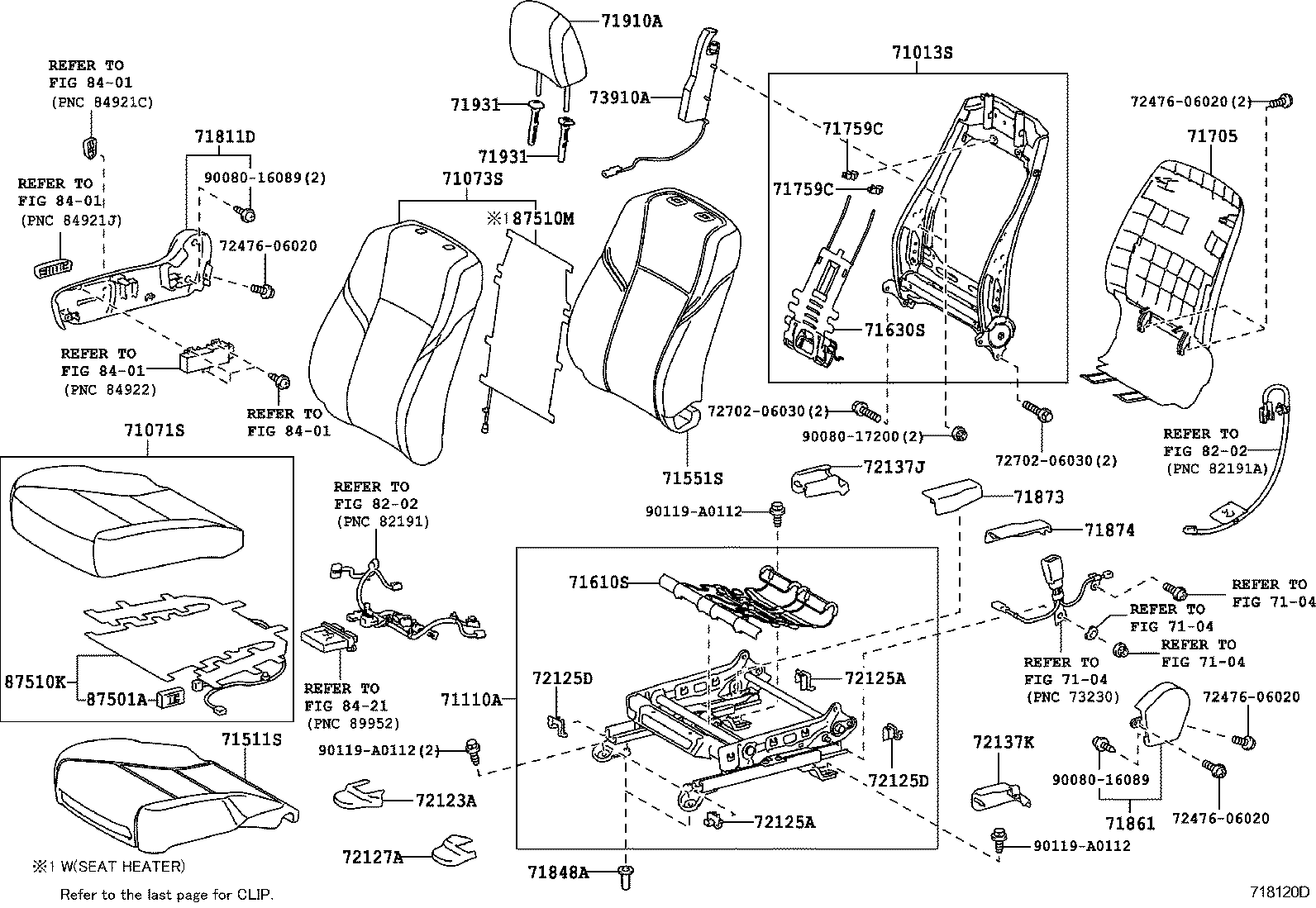

FRONT SEAT SEAT TRACK

PASSENGER ILLUST NO. 2 OF 2(1210- )

AVALON | FRONT SEAT SEAT TRACK 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71110A - FRAME ASSY, FRONT SEAT W/ADJUSTER, RH 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) 71705 - BOARD SUB-ASSY, FRONT SEAT BACK, RH 71759C - HOOK, FRONT SEAT BACK, NO.1 71759C - HOOK, FRONT SEAT BACK, NO.1 71811D - SHIELD, FRONT SEAT CUSHION, RH 71848A - CAP, SEAT ADJUSTER COVER, RH 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH 71910A - HEADREST ASSY, FRONT SEAT 71931 - SUPPORT, FRONT SEAT HEADREST 71931 - SUPPORT, FRONT SEAT HEADREST 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH 72125A - COVER, SEAT TRACK, UPPER REAR 72125A - COVER, SEAT TRACK, UPPER REAR 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 72125D - COVER, SEAT TRACK, UPPER REAR NO.2 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part 73910A - AIR BAG ASSY, FRONT SEAT, RH ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH 87510K - HEATER ASSY, FRONT SEAT CUSHION, RH 87510M - HEATER ASSY, FRONT SEAT BACK, RH ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part
