TOYOTA CAMRY ASV50L-SETEKA / BODY / FUEL TANK TUBE

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

FUEL TANK TUBE

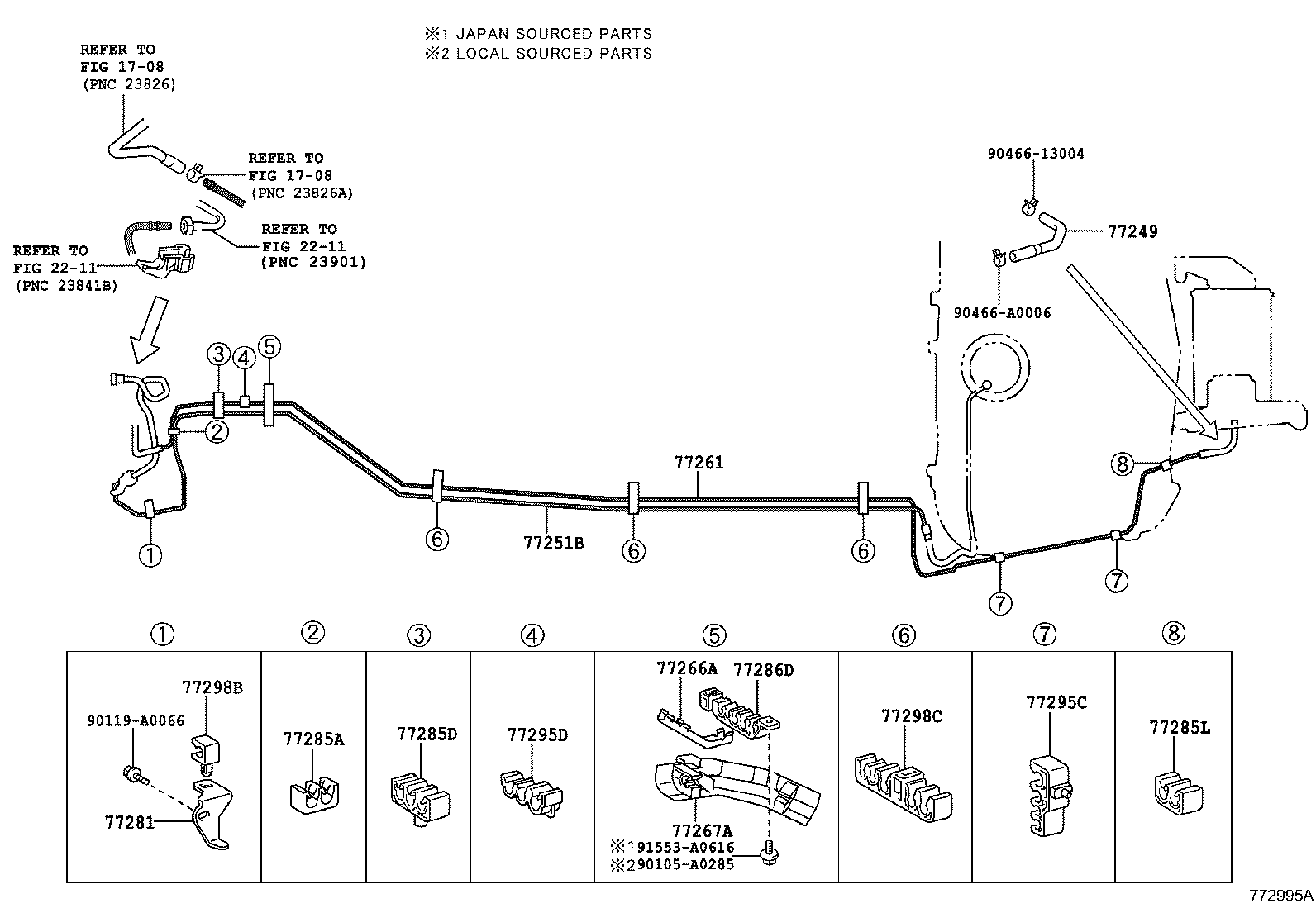

FUEL TUBE ILLUST NO. 2 OF 3(1109- )

 CAMRY |  FUEL TANK TUBE ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 77249 - HOSE, FUEL EMISSION 77251B - TUBE, FUEL MAIN 77261 - TUBE SUB-ASSY, FUEL EMISSION 77266A - PROTECTOR, FUEL TUBE, NO.1 77267A - PROTECTOR, FUEL TUBE, NO.2 77281 - BRACKET, FUEL MAIN TUBE, NO.1 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE 77285D - CLAMP, FUEL TUBE, NO.1 77285L - CLAMP, FUEL TUBE, NO.1 77286D - CLAMP, FUEL TUBE, NO.2 77295C - GROMMET, FUEL TUBE 77295D - GROMMET, FUEL TUBE 77298B - CLAMP, FUEL TUBE, NO.4 77298C - CLAMP, FUEL TUBE, NO.4  ** Std Part  ** Std Part  ** Std Part  ** Std Part  ** Std Part
