TOYOTA HIGHLANDER NAP GVU58L-ARXGKA / ELECTRICAL / SWITCH RELAY COMPUTER

Toyota Land Cruiser genuine parts

Toyota - LEXUS genuine parts

SWITCH RELAY COMPUTER

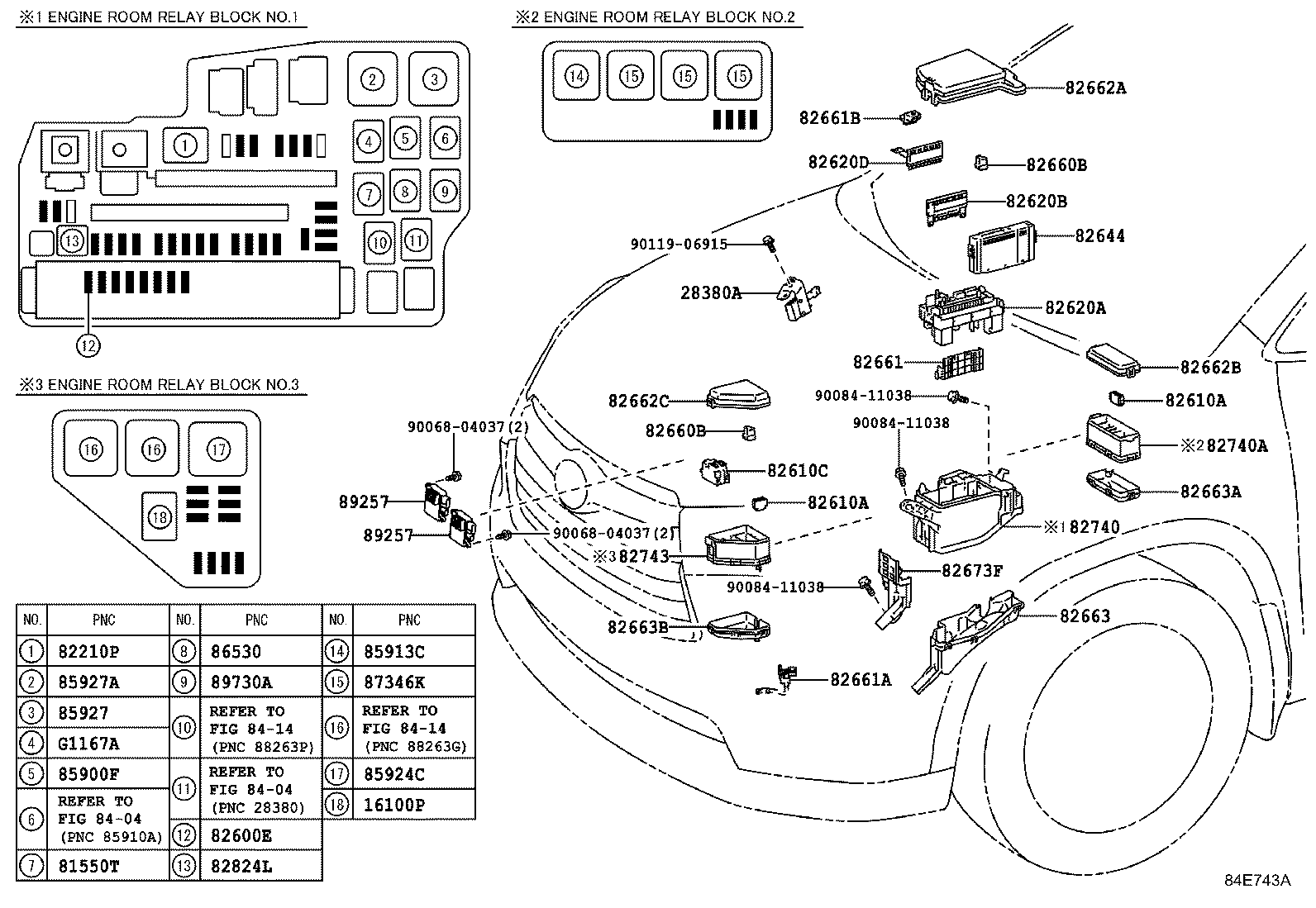

ENGINE ROOM ILLUST NO. 2 OF 8(1312- )GVU58

HIGHLANDER NAP | SWITCH RELAY COMPUTER 16100P - RELAY, WATER PUMP 28380A - RESISTER, FUEL PUMP 81550T - RELAY, BACK UP LAMP 82210P - ENGINE ROOM FUSIBLE LINK 82600E - ENGINE ROOM FUSE 82610A - BLOCK ASSY, FUSE 82610A - BLOCK ASSY, FUSE 82610C - BLOCK ASSY, FUSE 82620A - BLOCK ASSY, FUSIBLE LINK 82620B - BLOCK ASSY, FUSIBLE LINK 82620D - BLOCK ASSY, FUSIBLE LINK 82644 - COMPUTER, SEMICONDUCTOR PWR INTEGRATION 82660B - BLOCK ASSY, RELAY 82660B - BLOCK ASSY, RELAY 82661 - COVER, RELAY BLOCK, NO.1 82661A - COVER, RELAY BLOCK, NO.2 82661B - COVER, RELAY BLOCK, NO.3 82662A - COVER, RELAY BLOCK, UPPER, NO.1 82662B - COVER, RELAY BLOCK, UPPER, NO.2 82662C - COVER, RELAY BLOCK, UPPER, NO.3 82663 - COVER, RELAY BLOCK, LOWER 82663A - COVER, RELAY BLOCK, LOWER, NO.2 82663B - COVER, RELAY BLOCK, LOWER, NO.3 82673F - BRACKET, JUNCTION BLOCK 82740 - BLOCK ASSY, ENGINE ROOM RELAY 82740A - BLOCK ASSY, ENGINE ROOM RELAY, NO.2 82743 - BLOCK, ENGINE ROOM RELAY, NO.3 82824L - PIN, SHORT ** Refer Fig ** Refer Fig ** Refer Fig ** Refer Fig 85900F - RELAY, BATTERY SWITCH 85913C - RELAY, HEATER, NO.1 85924C - RELAY, IGCT 85927 - RELAY, COOLING FAN 85927A - RELAY, COOLING FAN, NO.2 86530 - RELAY ASSY, HORN 87346K - RELAY, PTC HEATER 89257 - COMPUTER, COOLING FAN 89257 - COMPUTER, COOLING FAN 89730A - RELAY(FOR SECURITY WARNING) ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part ** Std Part G1167A - RELAY (FOR OIL PUMP MOTOR)
